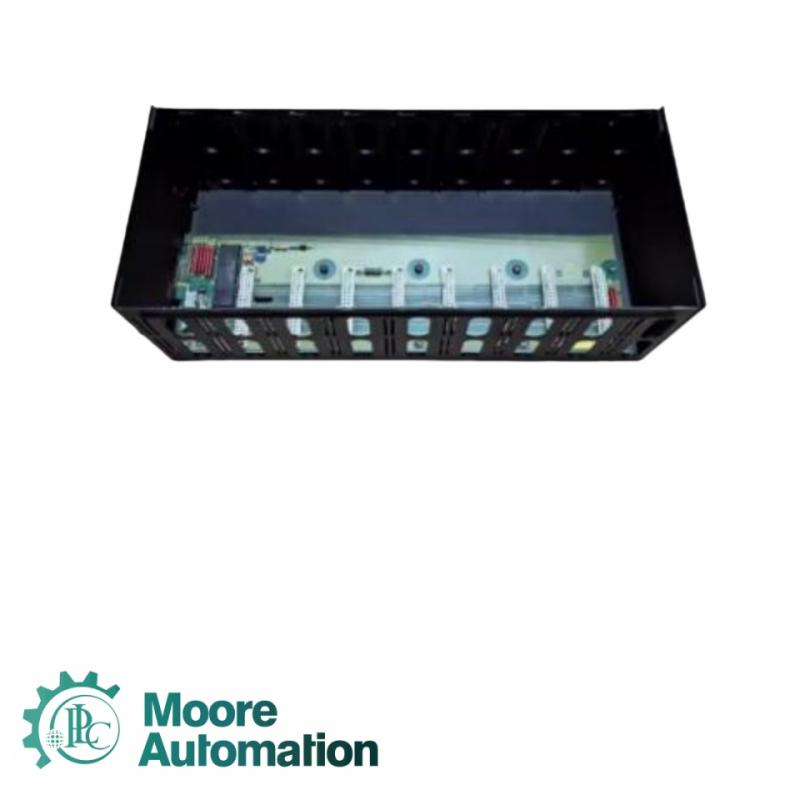

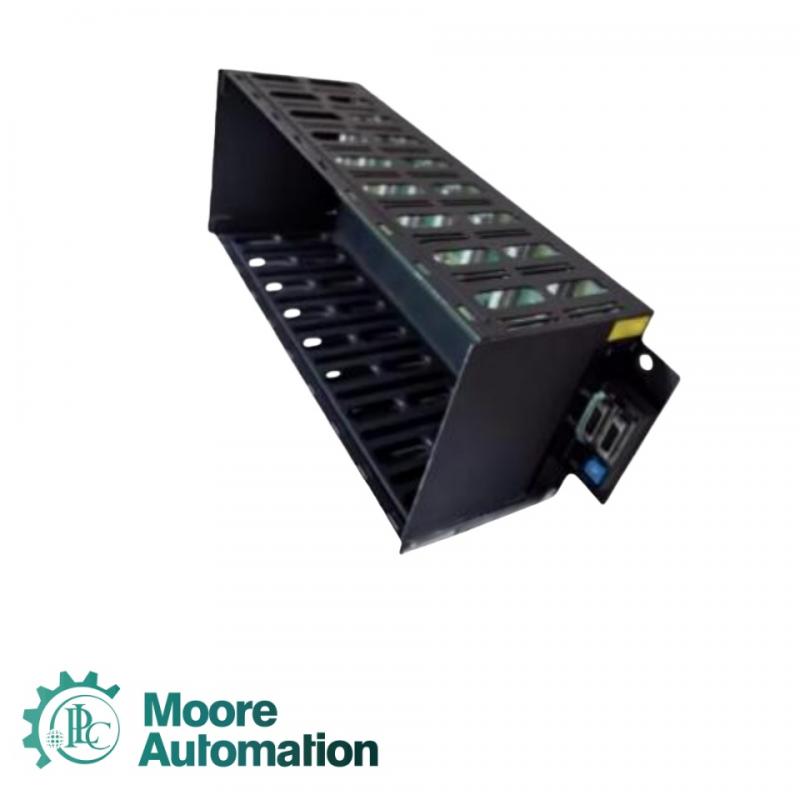

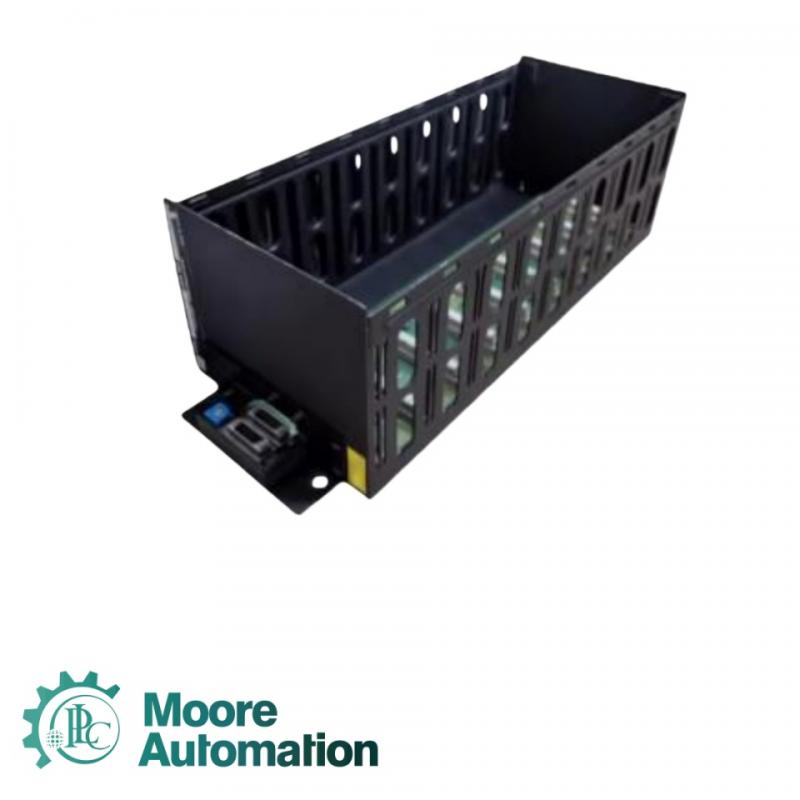

TOSHIBA TBU268**S+MB-7506 Control module

Product Name:TBU268**S+MB-7506

Brand Name:TOSHIBA

Product Origin:Japan

Payment: T/T

Shipping Port: Xia men

Delivery time: 1-3 days

Q1:Which series of TOSHIBA controllers is compatible with this module?
A1:The TBU268 S+MB-7506 model is one of the TBU series control modules provided by TOSHIBA and is labeled as "FOR T2" series base in the documentation.

Q2: If only one output channel of the system is damaged, does the entire module need to be replaced?
A2:Generally speaking, if the output channel is damaged and the module is designed as an integral non repairable channel structure, it is indeed necessary to replace the entire module. But before replacement, it is recommended to check whether the module output channel is damaged due to wiring problems, external load short circuits, or power supply abnormalities, in order to avoid the problem continuing after replacement.

Q3: What are the common manifestations of module failure?
A3: Possible fault manifestations include: some input/output channels are unresponsive, logic outputs cannot excite loads, analog channel deviations are severe, modules cannot be recognized by the controller, the controller reports I/O module error alarms, communication interface status lights are abnormal, and the system shuts down after startup due to alarms.

Q4: Is it necessary to reconfigure the program or parameters after replacing the module?
A4:If you are replacing with the exact same model (TBU268 S+MB-7506) and the system parameters, programs, and address mappings have not changed, there is generally no need to reprogram. But it is recommended to perform system self-test, functional testing, and confirm that all input/output channels are working properly after replacement.
