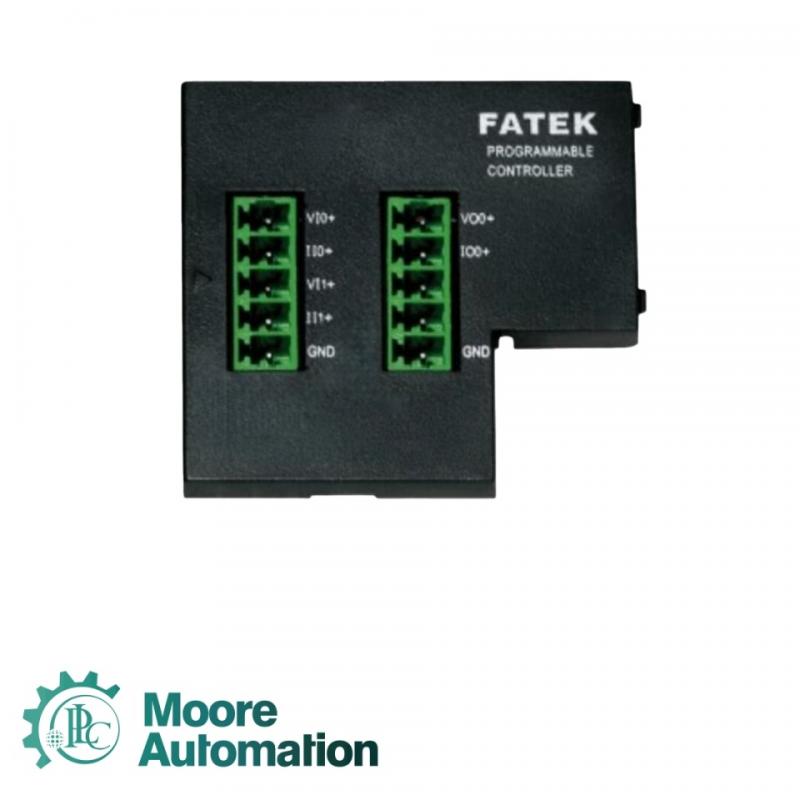

FATEK FBS-B2A1D-2 Analog I/O Combo Expansion Board

FATEK FBS-B2A1D-2 is an Analog I/O Combo Expansion Board produced by FATEK Automation Corp., suitable for FBS series programmable logic controllers (PLCs). This module provides high-precision analog input and output channels, supports current and voltage signal types, and can accurately convert sensor signals (such as pressure, temperature, flow, displacement, etc.) from industrial sites into digital signals that can be processed by PLC.

Module function: Provides 2 analog inputs and 1 analog output
Input signal type: 0-20 mA or 0-10 V
Output signal type: 0-20 mA or 0-10 V
Resolution: 12 bits/14 bits
Conversion accuracy: ± 0.1%
Simulation update cycle: approximately 100 ms/channel
Input impedance
Voltage input:>200 k Ω
Current input: approximately 250 Ω
Output load capacity:
Voltage output: ≥ 2 k Ω
Current output: ≤ 500 Ω
Isolation method: photoelectric isolation
Power supply: Powered by the host PLC
Power consumption: approximately 1.5 W
Working temperature range: 0 to+55 ° C
Storage temperature range: -20 to+70 ° C
Electrical connection method: pluggable terminal block connection
