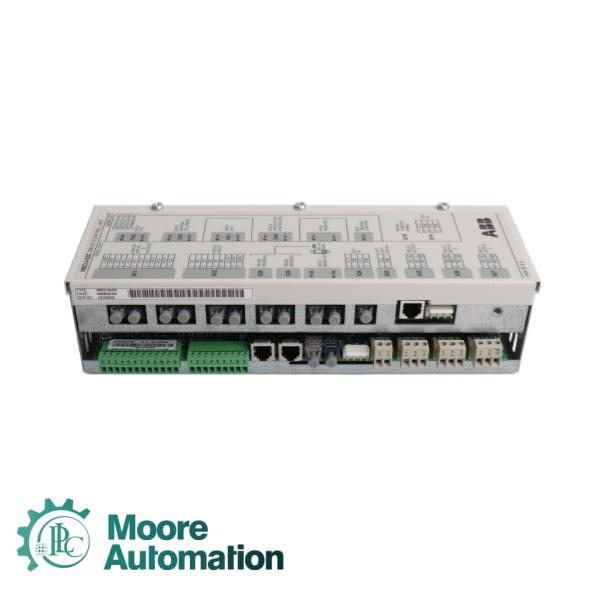

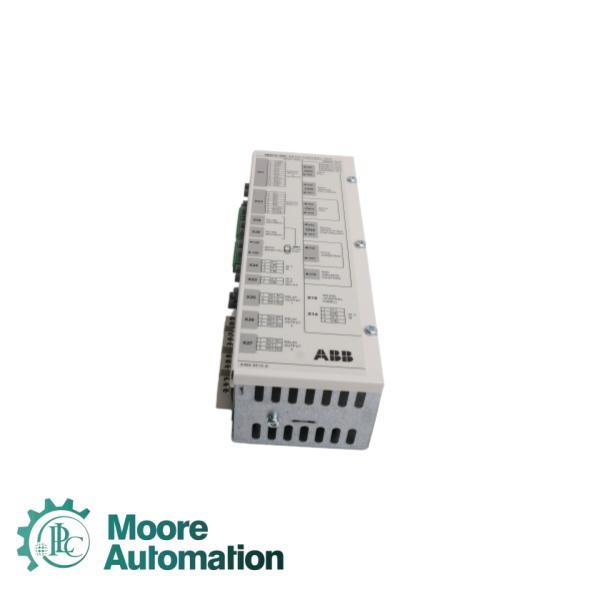

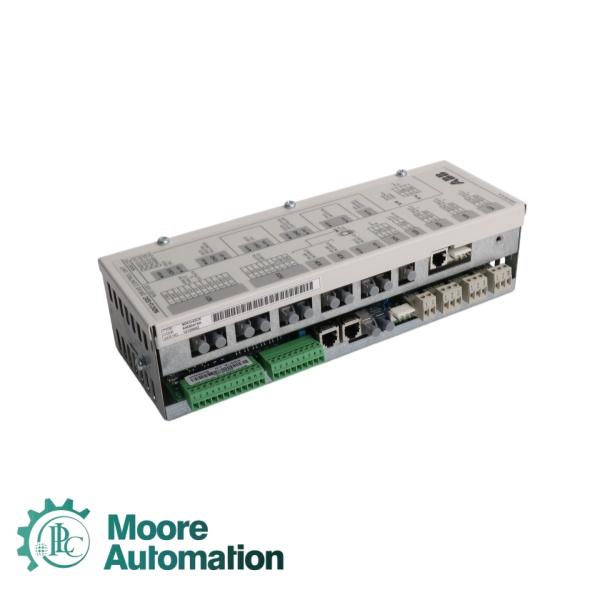

ABB NDCU-11CK 64053868B Drive Control Unit

NDCU-11CK 64053868B is a Drive Control Unit manufactured by ABB, serving as the central processing and logic control module for ABB's industrial drive systems, particularly the ACS 600 series frequency converters .

Brand: ABB

Model Number: NDCU-11CK

Ordering Code: 64053868B

Product Type: Drive Control Unit (Processor Unit)

Primary Series Compatibility: ABB ACS 600 Frequency Converters

Main Component Boards: NIOC-01 (I/O & Communication) + NAMC-11 (Motor Control)

Rated Supply Voltage: 24 V DC

Input Voltage Range: 19.2 – 28.8 V DC

Power Consumption: ≤ 25 W

Control Current: ≤ 1.2 A

Digital Inputs (NIOC-01): 6 digital inputs (24V DC)

Digital Outputs (NIOC-01): 3 relay outputs (R01, R02, R03)

Analog Inputs (NIOC-01): 3 differential analog inputs (AI1, AI2, AI3; ±10V or 0/4-20mA configurable)

Operating Temperature: -10°C to +55°C (+14°F to +131°F)

Storage Temperature: -40°C to +70°C (-40°F to +158°F)

1.Q: What is ABB known for in the industrial automation industry?

A: ABB is a global leader in power and automation technologies . The company is renowned for its comprehensive portfolio of industrial drives (ACS series), robotics, distributed control systems (800xA), and PLC systems (AC500). ABB products are widely used across power generation, oil and gas, chemical manufacturing, mining, and heavy industry applications .

2.Q: Are ABB products compatible with each other across different series?

A: Generally, yes. ABB designs its products with backward and cross-series compatibility in mind. For example, the KVC758A board is specifically designed for ACS5000 drives but is also compatible with ACS800 and ACS880 cabinets . Similarly, ABB's Advant OCS 800xA DCS systems integrate with various ABB drive platforms, allowing for seamless system expansion and upgrades .

3.Q: What makes ABB products suitable for harsh industrial environments?

A:ABB products are engineered with industrial-grade specifications including :

·Wide operating temperature ranges (e.g., -40°C to +70°C for the KVC758A)

·High electrical isolation ratings (520 VDC or higher) to protect against voltage transients and ground loops

·Electromagnetic resilience to withstand noisy industrial environments

·Robust construction with protection against dust, moisture, and vibration
