ABB HDZ-60-30C Energy Storage Motor

Contact Info

Product HDZ-60-30C

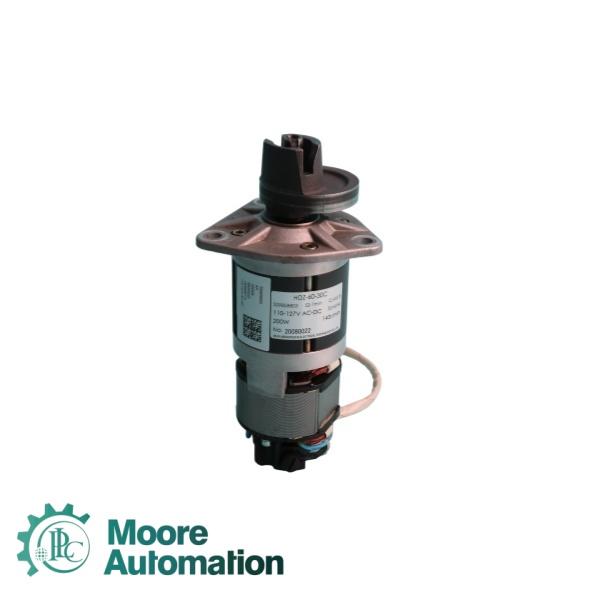

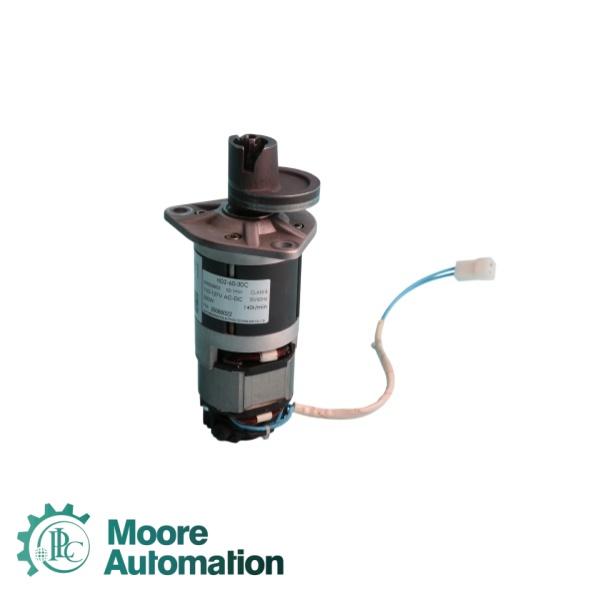

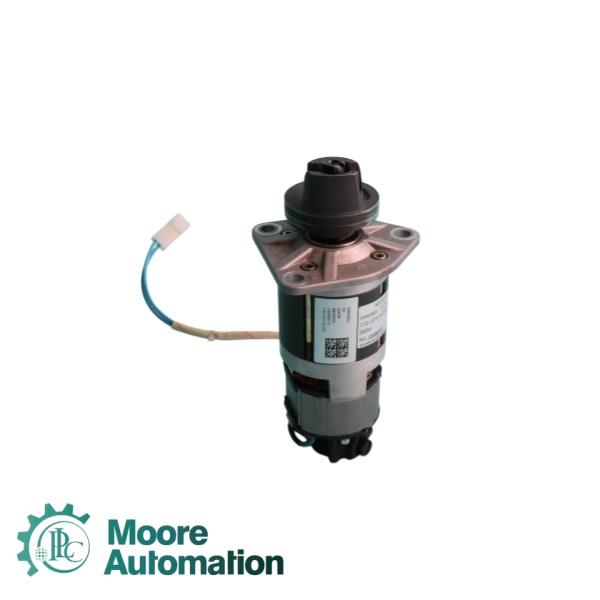

HDZ-60-30C is a high-voltage circuit breaker energy storage motor. It is a critical component used in the operating mechanisms of various vacuum circuit breakers, such as the ABB VD4 series . Its primary function is to automatically charge the closing spring after the breaker closes. This stored mechanical energy allows the circuit breaker to perform rapid and reliable switching operations in power distribution networks .

Technical Specifications

Features

➟Versatile Power Supply: The motor is designed for both AC and DC power sources, making it adaptable to various control circuit voltages .

➟Automatic Recharging: When the circuit breaker closes, this motor immediately and automatically recharges the closing spring, ensuring the breaker is always ready for the next switching operation .

➟Dual Manual/Auto Operation: In the event of a power loss or during maintenance, the closing spring can also be charged manually using a handle built into the operating mechanism .

➟High Starting Torque: With an inrush power of 600W, it provides the high torque necessary to overcome the initial mechanical resistance of the spring charging mechanism .

➟Rapid Operation: The design completes the spring charging cycle in just 6-7 seconds, which is critical for applications requiring fast reclosing cycles .

➟Robust Insulation: It has a high insulation voltage rating, with a tested dielectric strength of 2000V, ensuring safe operation in high-voltage environments .

➟Direct Compatibility: It is a direct-fit component for a range of medium-voltage switchgear, including ABB’s HD4 and VD4 series, as well as other VCB manufacturers .

FAQ

➪ Q1: What is ABB known for in the industrial automation industry?

A1: ABB (ASEA Brown Boveri) is a global leader in power and automation technologies . The company is renowned for its comprehensive portfolio of industrial drives (ACS series), robotics, distributed control systems (800xA), and PLC systems (AC500). ABB products are widely used across power generation, oil and gas, chemical manufacturing, mining, and heavy industry applications .

➪ Q2: Are ABB products compatible with each other across different series?

A2: Generally, yes. ABB designs its products with backward and cross-series compatibility in mind. For example, the KVC758A board is specifically designed for ACS5000 drives but is also compatible with ACS800 and ACS880 cabinets . Similarly, ABB's Advant OCS 800xA DCS systems integrate with various ABB drive platforms, allowing for seamless system expansion and upgrades .

➪ Q3: What makes ABB products suitable for harsh industrial environments?

A3: ABB products are engineered with industrial-grade specifications including :

·Wide operating temperature ranges (e.g., -40°C to +70°C for the KVC758A)

·High electrical isolation ratings (520 VDC or higher) to protect against voltage transients and ground loops

·Electromagnetic resilience to withstand noisy industrial environments

·Robust construction with protection against dust, moisture, and vibration

· Built-in protection mechanisms including overvoltage and overcurrent safeguard
