ABB SDCS-PIN-H01 3ADT318800R1501 Power Interface Board

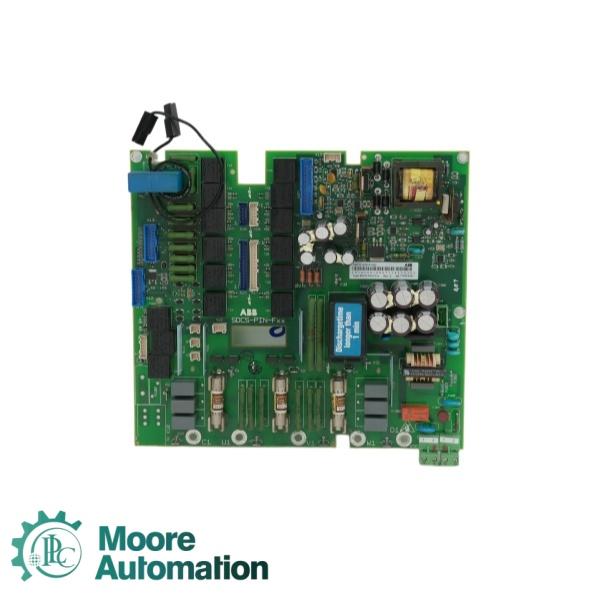

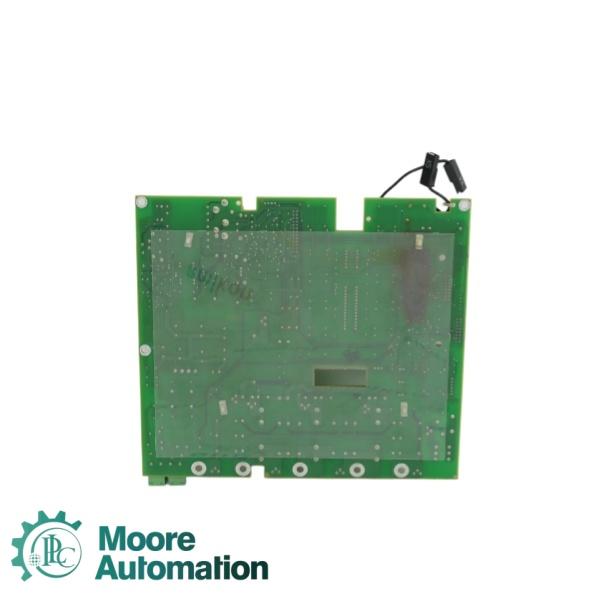

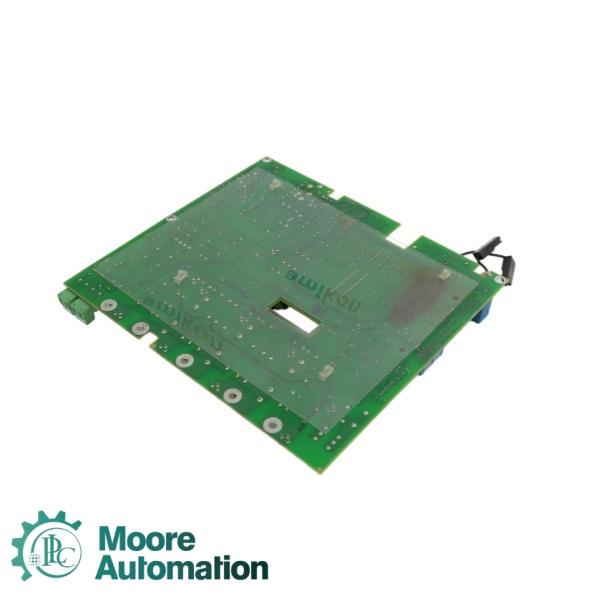

SDCS-PIN-H01 3ADT318800R1501 is a Power Interface Board designed by ABB for use within the DCS880 series of DC converter modules and the broader ABB DC drive platform .

This module serves as a fundamental interface and power supply board, providing reliable power distribution, conditioning, and connectivity within ABB's DC drive architecture . It is specifically engineered for DCS880 converter modules in sizes H1 through H5, covering a wide current range from 20A up to 1190A .

Brand: ABB

Model Number: SDCS-PIN-H01

Ordering Code: 3ADT318800R1501

Product Type: Power Interface Board / Converter Control Interface

Compatible Drive Series: DCS880 converter modules sizes H1 to H5 (20A – 1190A)

Input Voltage (Primary): 24 V DC

Input Voltage Range: 20 – 28 V DC

Ripple & Noise: ≤ 100 mVp-p

Mains Supply Voltage (Compatible): 100 V up to 525 V and 600 V AC

Isolation Voltage: 1500 VAC (input to output)

Insulation Resistance: ≥ 100 MΩ at 500 VDC

Auxiliary Voltage Adaptation： Automatic adaptation of auxiliary voltage (230 V AC or 115 V AC)

Operating Temperature： -20°C to +60°C (-4°F to +140°F)
