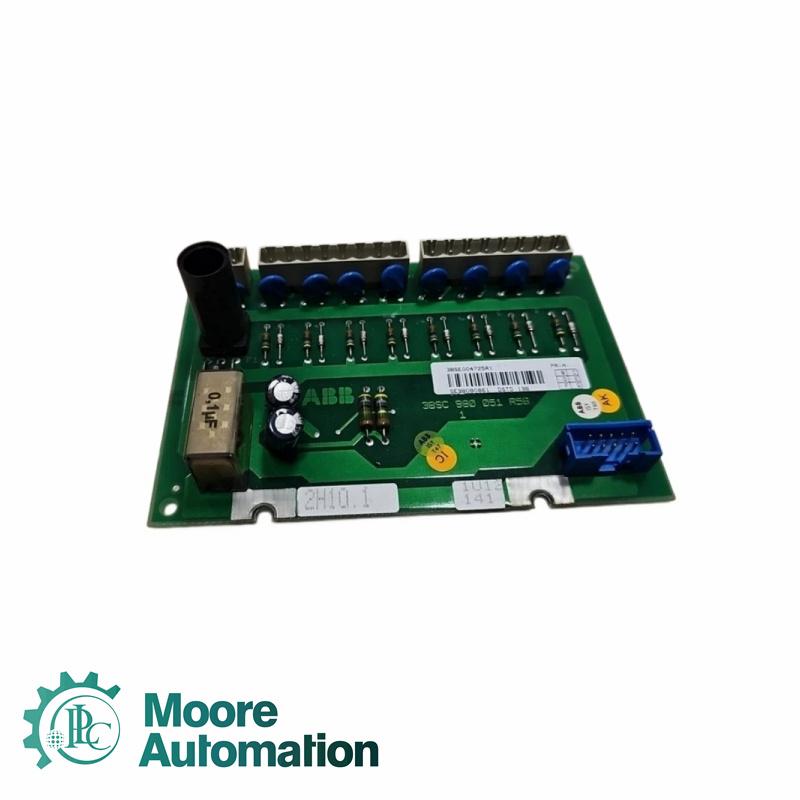

ABB 3BES004725R1 DSTD196 Connection Unit

Our company's advantageous brands

Foxboro/GE/Siemens/Moore/Emerson/Ovation/BentlyNevada/ABB/ICS/TRICONEX/Honeywell/

Westinghouse/Epro/Yokogawa/Allen-bradley/ Schneider /HIMA/Woodhead/Woodward

Overview of the Product

The ABB 3BES004725R1 DSTD196 is a Connection Unit in the ABB Advant OCS (Open Control System) control system (typically used in conjunction with the Advant Controller 450 / AC450). It connects field industrial manual pushbuttons, limit switches, or solenoid valve signals and uses high-density ribbon cables to route these signals to the main I/O cards within the control cabinet.

Applicaiton

Oil Refineries: Installed in process control cabinets to collect explosion-proof switches and valve feedback signals for S100 I/O and DCS control.

Power Plants: Used in auxiliary systems such as heating networks, water treatment, and desulfurization as distributed I/O wiring terminals.

Coal-to-Liquid Gasification Plants: Applied in gasifier and air separation cabinets with high isolation and EMI resistance against VFDs and motors.

Large Paper Mills: Used in pulp, paper machine, and recovery boiler systems for durable wiring protection in harsh environments.

Non-Ferrous Metal Smelters: Collects equipment status and limit signals in high EMI areas to ensure control system data integrity.

Frequently Asked Questions

Q: What types of I/O modules or field signal inputs does this 3BES004725R1 DSTD196 connection unit primarily support?
A: It is designed specifically for digital/switching signals and is typically used with corresponding input/output modules to handle relay, limit switch, or solenoid valve signals in industrial environments.

Q: How many field signal terminals does the 3BES004725R1 DSTD196 provide for channel division?
A: It is a 32-channel digital connection unit capable of simultaneously managing up to 32 independent external field signals.

Q: When installing the 3BES004725R1 DSTD196 into a control cabinet, what industry standard DIN rail mounting does its physical structure support?
A: It uses a standard DIN rail mounting structure, allowing engineers to directly clip it onto the rails inside the cabinet, greatly saving field wiring and maintenance space.

Q: Facing complex electromagnetic interference, what protection mechanisms does the 3BES004725R1 DSTD196 possess to protect sensitive core controllers?
A: This connection unit has built-in high-efficiency electrical isolation protection circuitry, effectively blocking industrial surges, noise, and high-voltage impulses from the field.

Q: If the wiring of the 3BES004725R1 DSTD196 needs to be maintained during equipment operation, what are the advantages of its terminal block design?
A: It is equipped with detachable terminal blocks, which eliminates the need to disassemble complex field wiring when replacing or testing faulty boards, enabling quick and error-free replacement.
