ABB 5SDD0120C0200 High-power Welding Diode

Contact Yuki

Email: sales6@askplc.com

WhatsApp: +8617359287459

Product Details

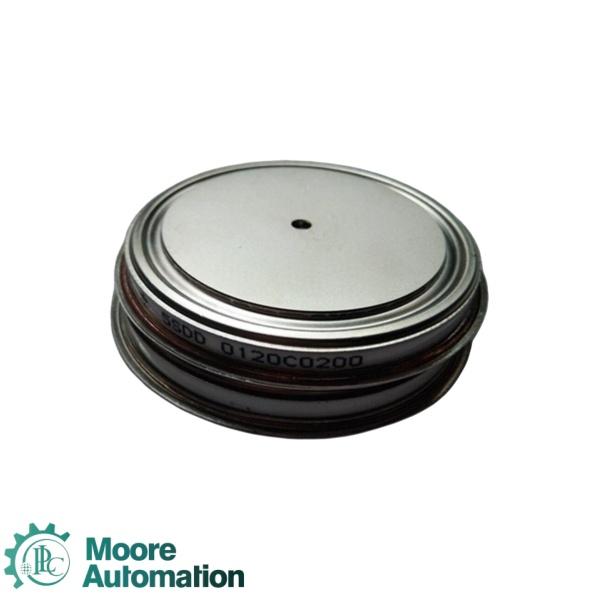

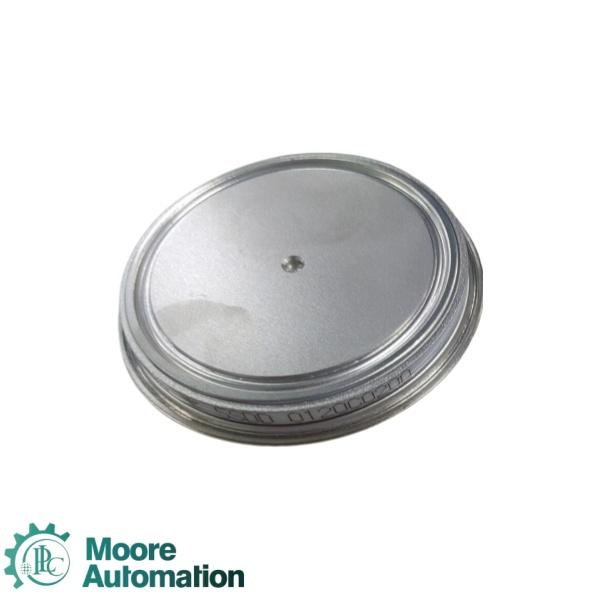

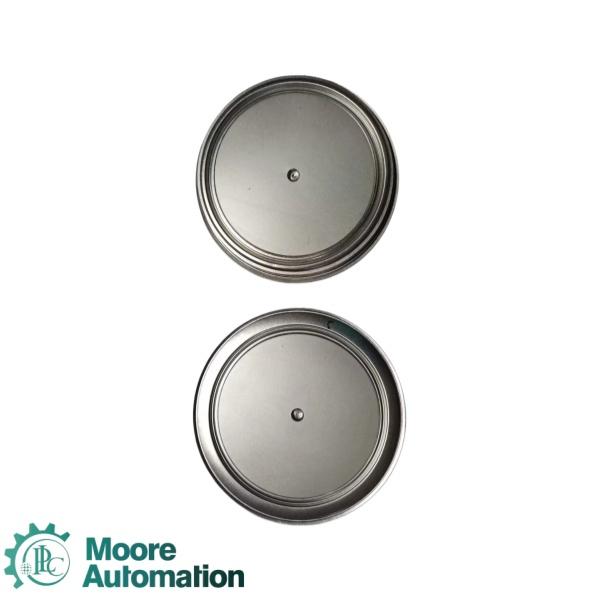

The ABB 5SDD0120C0200 Welding Diode is a massive-scale, press-pack (hockey-puck) style power semiconductor engineered specifically for medium-frequency resistance welding equipment and high-current rectification systems. Designed with a C-housing configuration, it utilizes an optimized silicon wafer structure that achieves an exceptionally low on-state voltage drop and minimal thermal resistance. This specialized layout ensures maximum forward current handling capabilities while dramatically reducing power losses during forward and reverse recovery cycles, guaranteeing long-term operational stability under extreme electrical and clamping stress on heavy industrial factory floors.

(1) Maximum Repetitive Peak Reverse Voltage(V_RRM): 200 V

(2) Maximum Average Forward Current (I_FAVm): 11,000 A at a case temperature (T_C) of 85°C

(3) RMS Forward Current (I_FRMS): 17,300 A (TC = 85℃)

(4) Threshold Voltage (V_F0): 0.75 V.

(5) Slope Resistance (r_F): 0.020 mΩ.

(6) Operating Junction Temperature Range (T_j): Hardened to operate reliably from -40°C to +170°C

Application

❖ Industrial Welding Equipment: Serves as the primary power rectification component inside medium-frequency resistance welding machines, ensuring steady high-current delivery for automated robotic spot welding lines.

❖ High-Current Power Rectification: Deployed across massive industrial rectifiers to smooth out and convert high-amperage current lines operating up to 2000 Hz.

❖ Heavy Electromechanical Infrastructure: Utilized in electroplating plants, battery charging grids, and metallurgical manufacturing facilities requiring high operational reliability under continuous low-voltage, ultra-high-amperage power conversion cycles.
