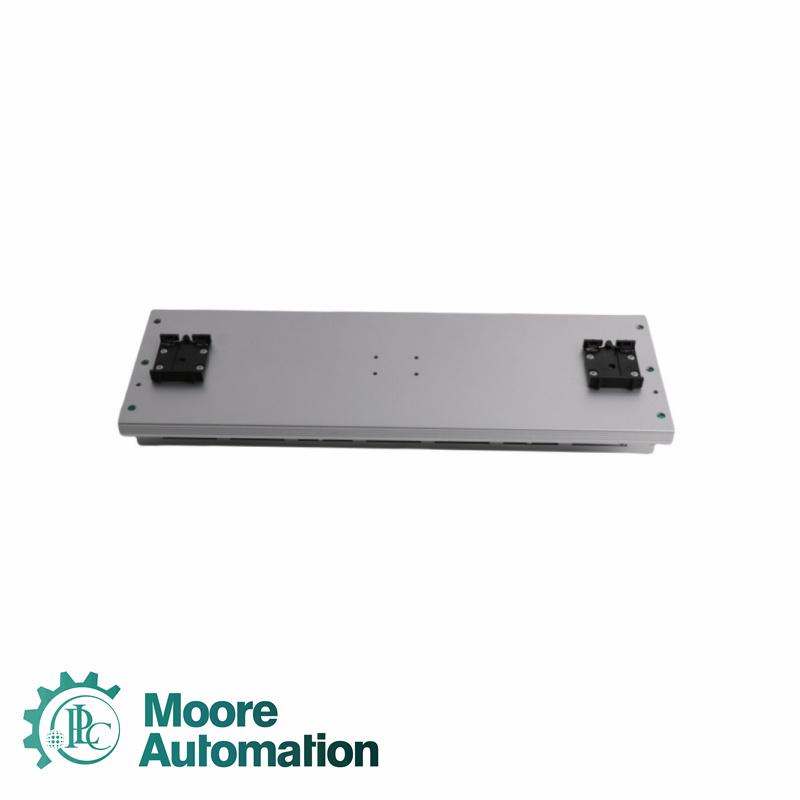

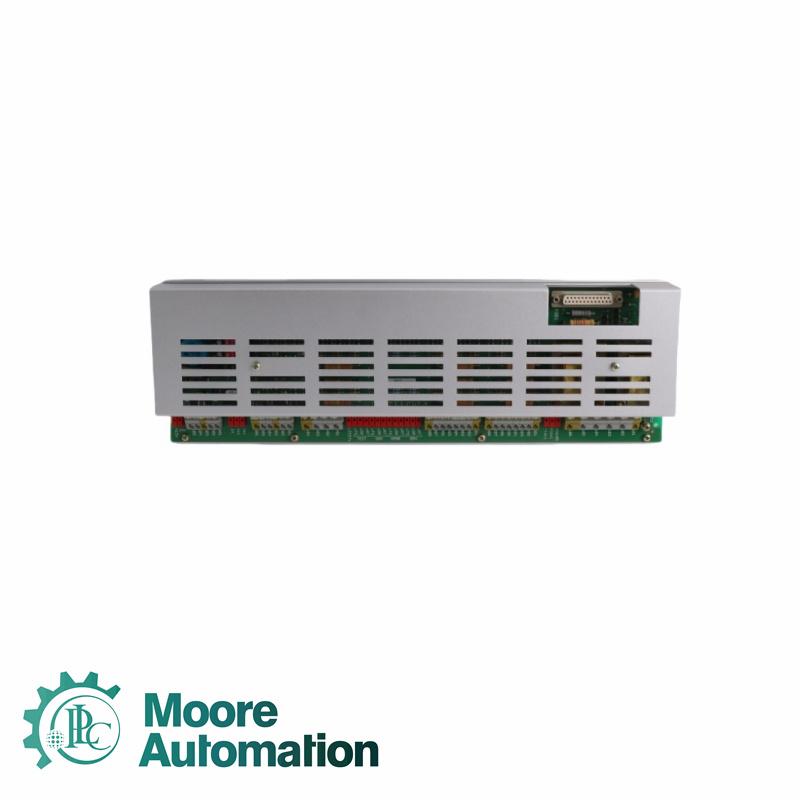

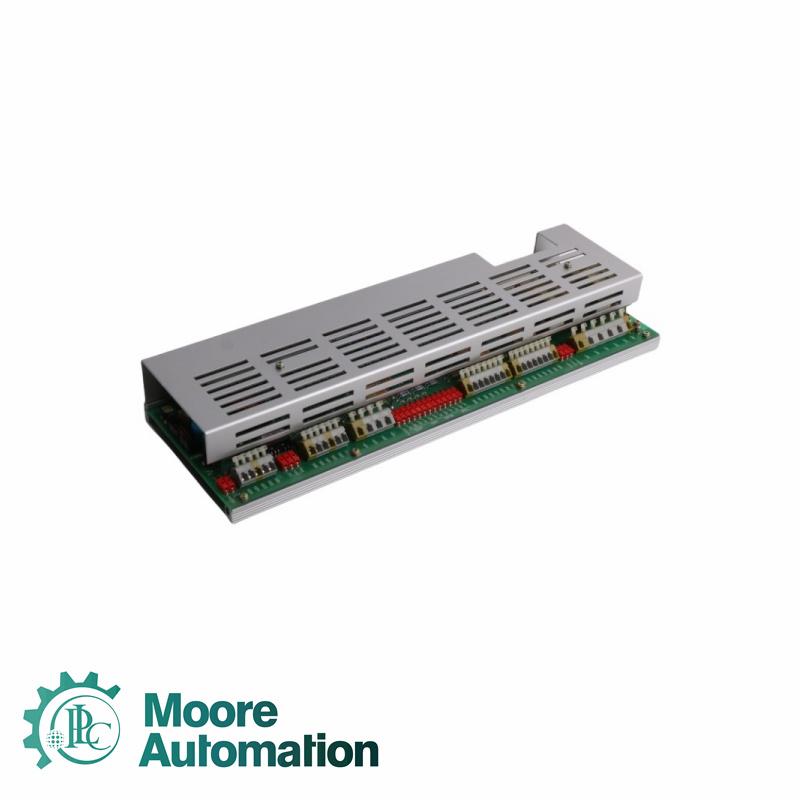

ABB HIEE300725R1 UAC317AE V1 control board

Our company's advantageous brands

Foxboro/GE/Siemens/Moore/Emerson/Ovation/BentlyNevada/ABB/ICS/TRICONEX/Honeywell/

Westinghouse/Epro/Yokogawa/Allen-bradley/ Schneider /HIMA/Woodhead/Woodward

Overview of the Product

The ABB HIEE300725R1 UAC317AE V1 is a core control board widely used in ABB's distributed control systems (DCS), excitation systems (such as the UNITROL series), and large variable frequency drives (VFDs). It primarily serves heavy industries such as power generation and electric power, large industrial drives, oil and gas and chemical industries, and marine electric propulsion.

Applicaiton

Steel Mills: Used in blast furnace blowers and hot/cold rolling drive systems for precise high-load motor control.

Thermal Power Plants: Applied in VFD control cabinets for fans and feedwater pumps to improve energy efficiency.

Petrochemical Plants: Used in compressor and crude oil pump drive systems for safe, continuous operation.

Mining Plants: Applied in high-voltage VFD systems for ball mills, SAG mills, and large conveyors, providing strong starting torque control.

Cement Plants: Used in rotary kiln, exhaust fan, and raw mill VFD systems to improve control accuracy and reduce wear.

Frequently Asked Questions

Q: What are the basic electrical parameters of this HIEE300725R1 UAC317AE V1(such as input voltage and power consumption)?
A: The standard input operating voltage of this card is 24 VDC, and the nominal rated power consumption is only 5 W.

Q: What are the core functions of the HIEE300725R1 UAC317AE V1 in the system?
A: It is mainly responsible for maintaining bidirectional isolated communication between the control core and the downstream high-voltage frequency converter drive components, high-speed signal conversion, and accurately outputting system control signals as 0-10 VDC or 0-20 mA analog standard signals.

Q: What do the codes HIEE300725R1 and UAC317AE V1 represent?
A: HIEE300725R1 (corresponding to the production line basic code HIEE300725R0001) is official global part number and hardware baseboard code, while UAC317AE V1 identifies the technical specifications and firmware hardware version of this functional plug-in card.

Q: What industrial ambient temperature can this HIEE300725R1 UAC317AE V1 withstand?
A: This module boasts excellent industrial-grade weather resistance, supporting stable operation within an extremely wide ambient temperature range of -40 °C to +70 °C.

Q: How can electromagnetic interference (EMI) from the high-voltage main circuit be avoided during field installation and wiring of frequency converter drive interface cards like the HIEE300725R1 UAC317AE V1?
A: Precision shielded twisted-pair cables must be used, with proper shielding grounding at the card or cabinet side. Control cables must be routed separately from high-current power cables.
