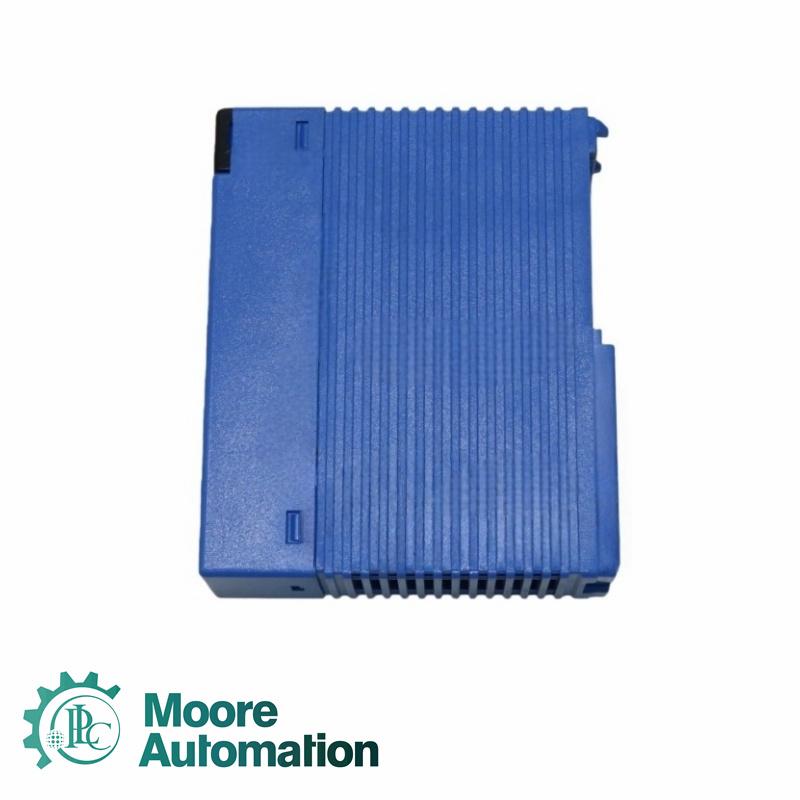

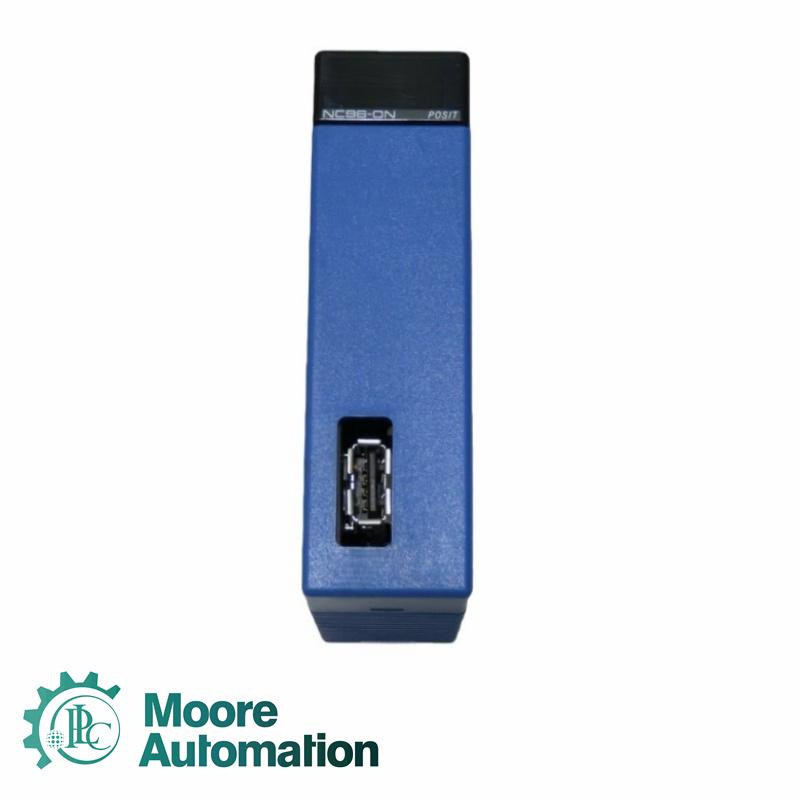

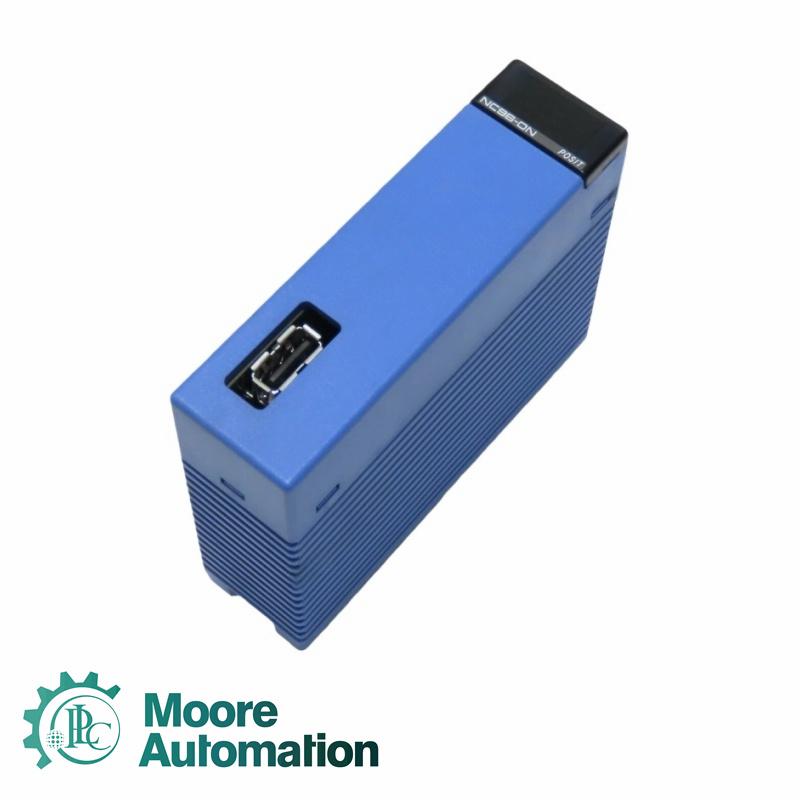

YOKOGAWA F3NC96-0N NC96-0N Positioning Module

Contact info

Sale Manager: John Yang

Email :  sales3@askplc.com

Mobile(WhatsApp):  86-18150117685

Main info

Part ID: F3NC96-0N NC96-0N

Type: Positioning Module

Packaging: Original packaging

Warranty period: 1 year

Delivery time: 1-3 days

Transportation period: DHL FEDEX EMS UPS TNT

Payment method: T/T

Condition: Original new

Shipping Port: Xiamen, China

MOQ: 1 Piece

Specification

Interface:MECHATROLINK-I compliant
Transmission Rate:10 Mbps
Transmission Bytes:32 bytes
Cycle Time vs. Number of Stations:1.0 ms for up to 8 axes, 2.0 ms for up to 15 axes (user selectable)
Network Topology:Bus (multi-drop)
Communication Method:Master/slave synchronous
Transmission Media:2-wire shielded twisted pair cable (proprietary cable)
Maximum Transmission Distance:50 m (total length)
Minimum Distance Between Stations:0.5 m
Number of Installed Modules:8 modules max. (120 axes max.)
Current Consumption:570 mA (5V DC)
External Connection:One MECHATROLINK-II communication port
External Dimensions:28.9 (W) × 100 (H) × 83.2 (D) mm
Weight:120 g
Operating Ambient Temperature:0 to 55°C
Operating Ambient Humidity:10 to 90% RH (non-condensing)
Operating Ambient Atmosphere:Free of corrosive gases, flammable gases, and heavy dust
Storage Ambient Temperature:-20 to 75°C
Storage Ambient Humidity:10 to 90% RH (non-condensing)

Shipping

1.For the in stock items, we will ship to you within 3 days after received payment

2.We can shipping all over the world via DHL,UPS,FEDEX,TNT and EMS.

3.If you have shipping agent please tell us before shipment.

4.We will packing the parts with strong box, if you have any special needs, please notify to us.

5.We usually ship up to before 4:30 PM, after shipment we will sent the tracking number to you. It will takes

7~15 days to received the packages

6.When you received the package, please email to us.
