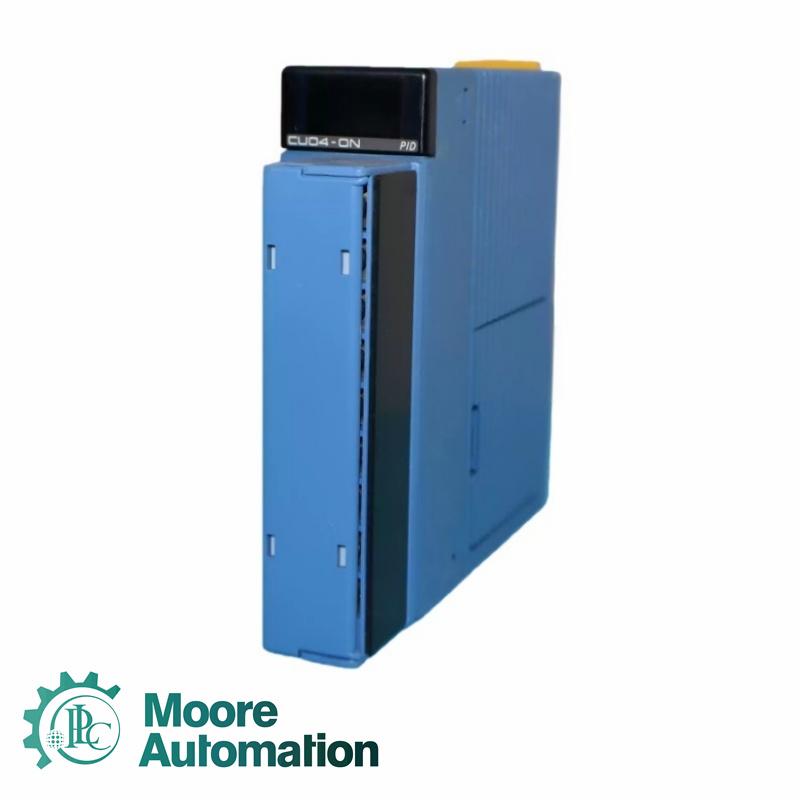

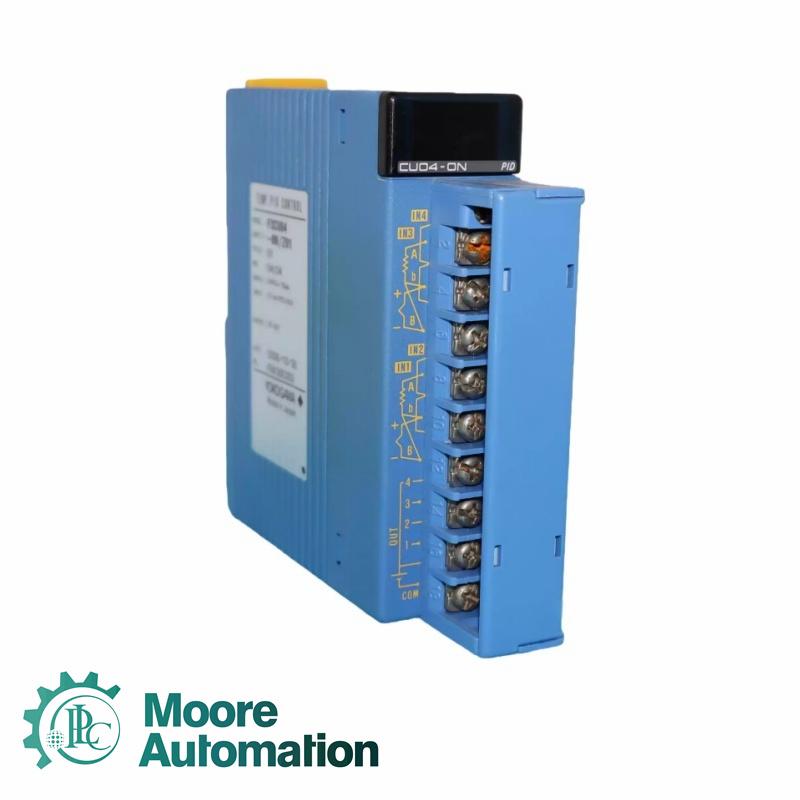

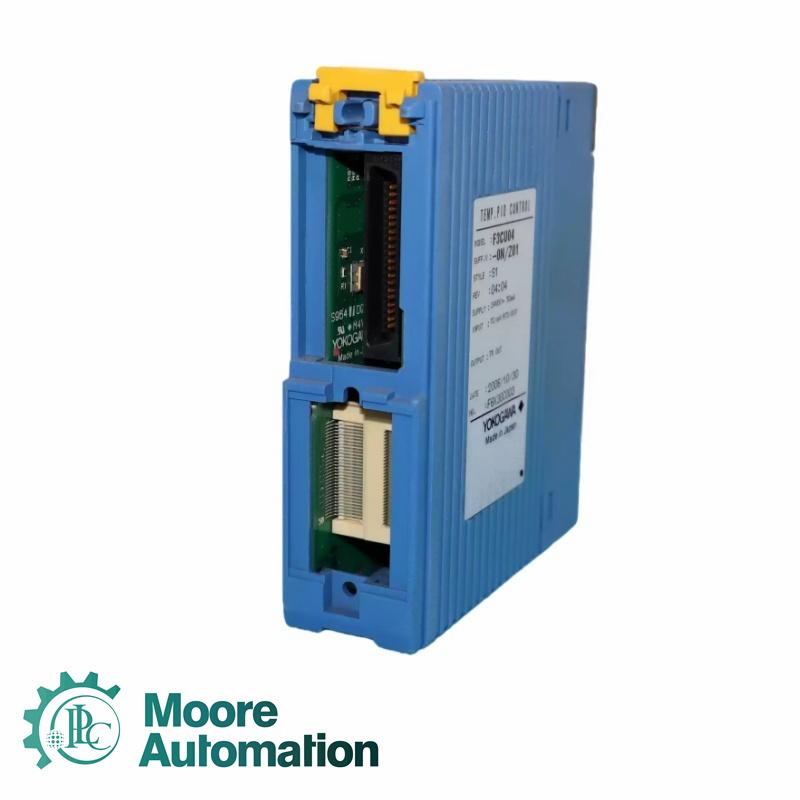

YOKOGAWA F3CU04-0N/Z01 Temperature Control and PID Module

Contact info

Sale Manager: John Yang

Email :  sales3@askplc.com

Mobile(WhatsApp):  86-18150117685

Main info

Part ID: F3CU04-0N/Z01

Type: Temperature Control and PID Module

Packaging: Original packaging

Warranty period: 1 year

Delivery time: 1-3 days

Transportation period: DHL FEDEX EMS UPS TNT

Payment method: T/T

Condition: Original new

Shipping Port: Xiamen, China

MOQ: 1 Piece

Specification

Number of Loops:4
Isolation Between Output Terminals:Not isolated
Alarm Types:Upper input limit, lower input limit, upper deviation limit, lower deviation limit, upper/lower deviation limit, deviation range (all with or without waiting)
Number of Alarm Outputs (Input Relays):4 points per loop (only alarms 1 and 2 have input relays)
Alarm Delay Timer:Yes
Warm-up Time:30 minutes minimum
Maximum Allowable Ambient Temperature Change Rate:10°C/h maximum
Mounting Position:Horizontal or inverted orientation not allowed
External Connection:One 18-point terminal block with M3.5 screws
External Dimensions:28.9 (W) × 100 (H) × 106.1 (D) mm
Current Consumption:460 mA at 5V DC
Weight:200 g
Input Insulation Resistance:1 MΩ minimum
Allowable Signal Source Resistance (Thermocouple or DC mV Input):250 Ω maximum
Allowable Signal Source Resistance (DC Voltage Input):2 kΩ maximum
Allowable Wiring Resistance (RTD):10 Ω maximum per wire (three wires must have equal resistance)
Measuring Current (RTD):Approx. 270 μA
