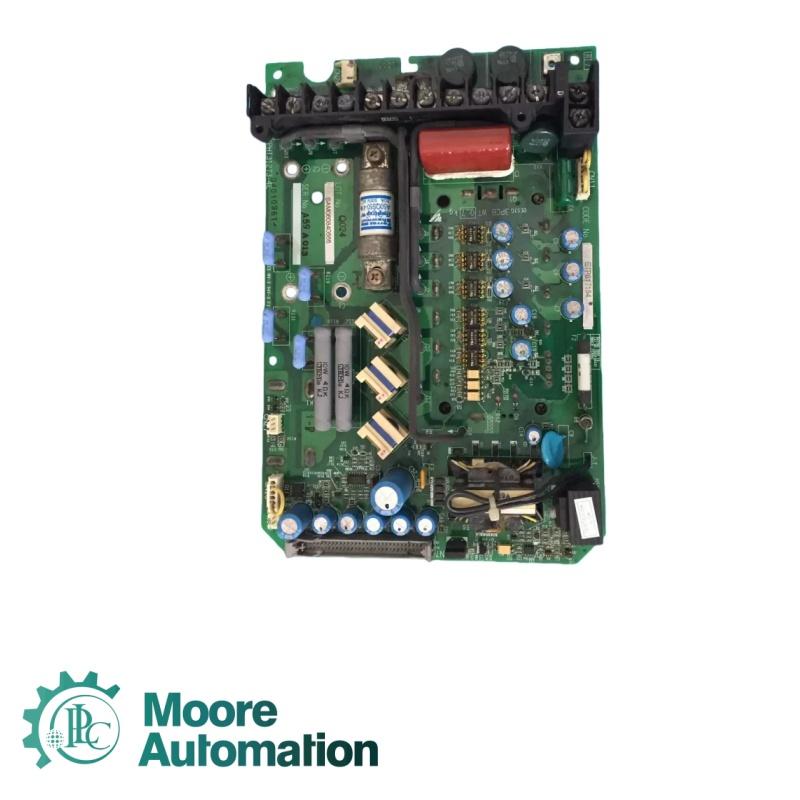

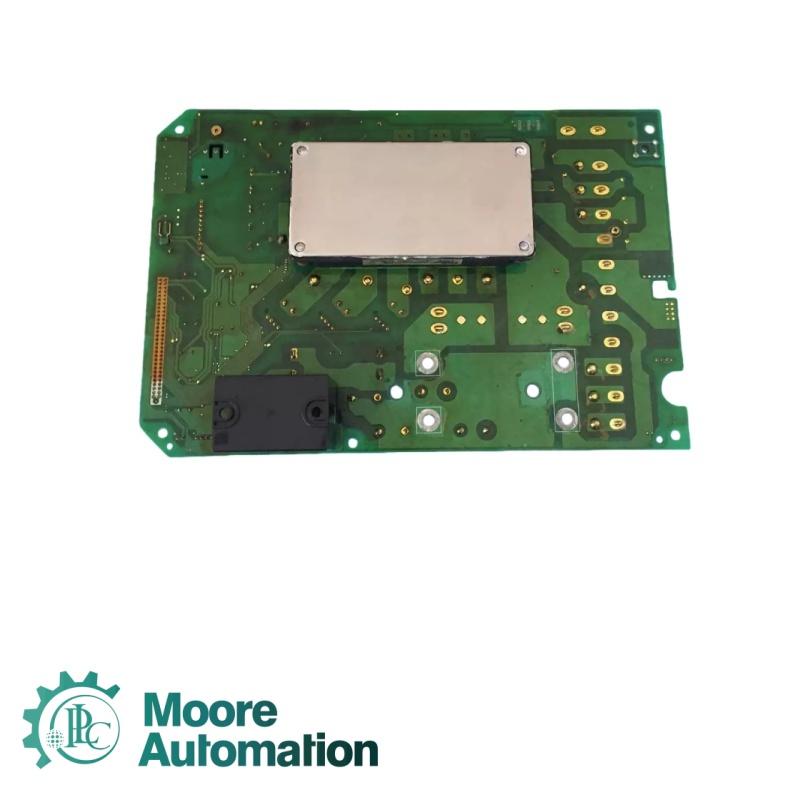

Yaskawa YPHT31273-4E +7MBR50SB120B ETP617145 Board

Yaskawa YPHT31273-4E +7MBR50SB120B ETP617145 Board

Yaskawa YPHT31273-4E +7MBR50SB120B ETP617145 Board

Brand:
Other
Order(MOQ):
1
Payment:
T/T
Product Origin:
Japan
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
in stock

Product Detail

We look forward to building a long-term, stable, and seamless partnership with you.

Product Name:YPHT31273-4E +7MBR50SB120B ETP617145
Brand Name:Yaskawa
Product Origin:Japan
Payment: T/T
Shipping Port: Xia men
Delivery time: 1-3 days
❒Email: sales3@askplc.com
❒Mobile(Whats App): 86-18150117685

Product Specs

Rated Collector-Emitter Voltage (Vces): 1200V DC
Rated Collector Current (Ic): 50A (at 25°C), 30A (at 100°C)
Peak Collector Current (Icm): 100A (pulsed, ≤1ms)
Gate-Emitter Voltage (Vges): ±20V (maximum)
On-State Voltage (Vce(sat)): ≤1.8V (at Ic=50A, Tj=25°C)
Switching Frequency: Up to 20kHz (continuous operation)
Junction Temperature Range (Tj): -40°C ~ +150°C
Thermal Resistance (Rth(j-c)): 0.8°C/W (per IGBT chip)
Protection Features: Built-in overcurrent protection (OCP), short-circuit protection (SCP), over-temperature protection (OTP)
Control Signal Input:
Position Command: Differential pulse/direction input, CW/CCW pulse input (5V/24V compatible)
Speed Command: 0-10V DC analog input (resolution 12-bit)
Torque Command: 4-20mA DC analog input (resolution 12-bit)
Feedback Interface: Supports incremental encoder (ABZ phase, 5V differential), absolute encoder (EnDat 2.2, BiSS-C)
Feedback Resolution: Up to 17-bit (for absolute encoders), 1MHz maximum pulse input frequency
Control Modes: Position control, speed control, torque control, hybrid control (configurable via software)
PID Control: Advanced 3-loop PID (position-speed-current) with auto-tuning function
Proportional Band (PB): 0.1% ~ 500% (adjustable)
Integral Time (Ti): 0.01s ~ 100s (adjustable)
Derivative Time (Td): 0 ~ 50s (adjustable)
Digital I/O Ports: 8 configurable digital inputs (24VDC, sinking/sourcing), 4 digital outputs (relay, 2A/250VAC)
Analog I/O Resolution: 12-bit (input), 12-bit (output)
