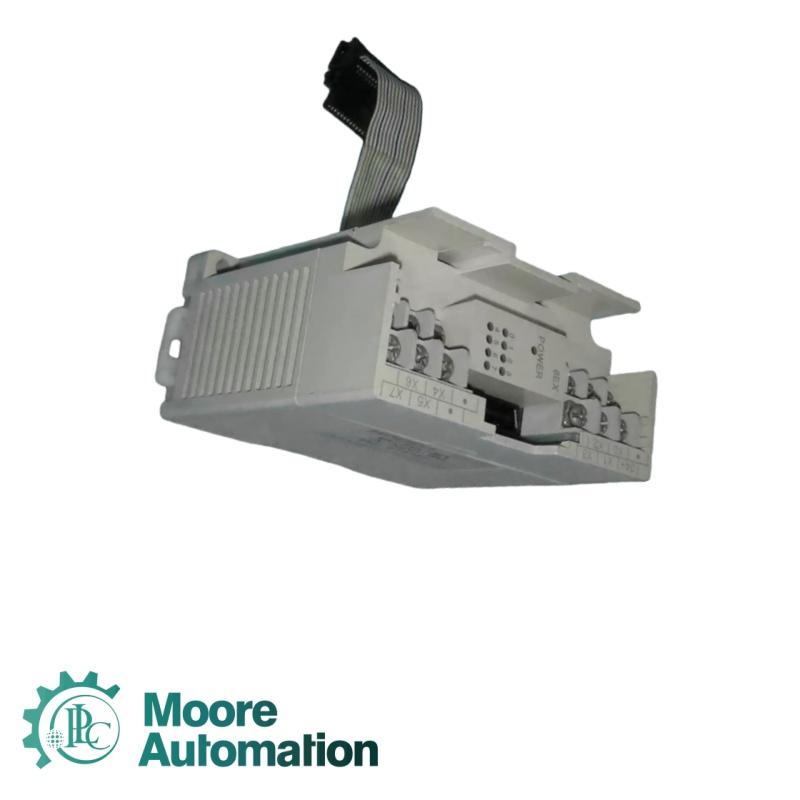

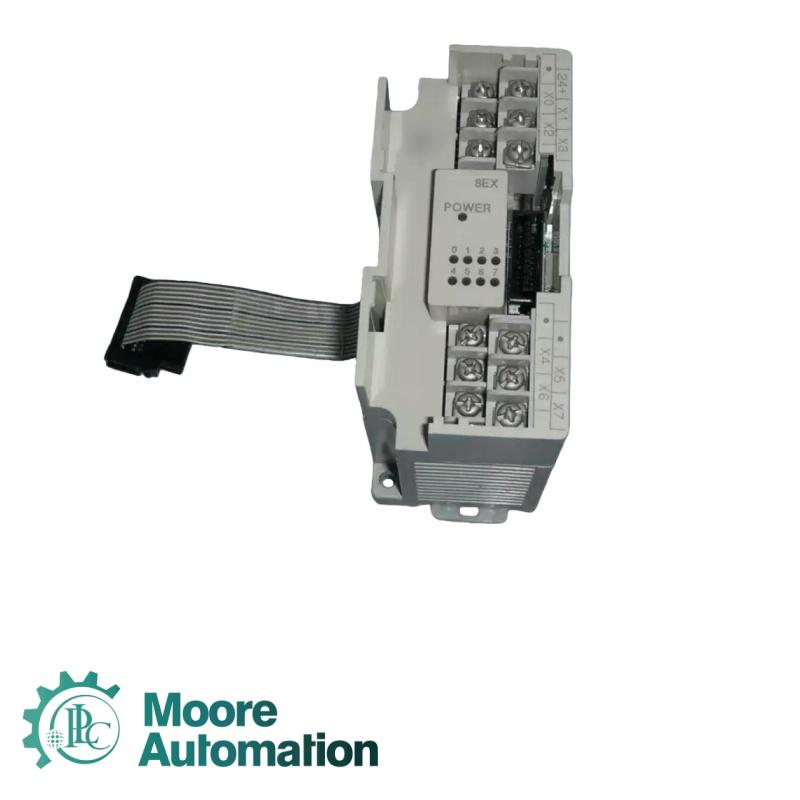

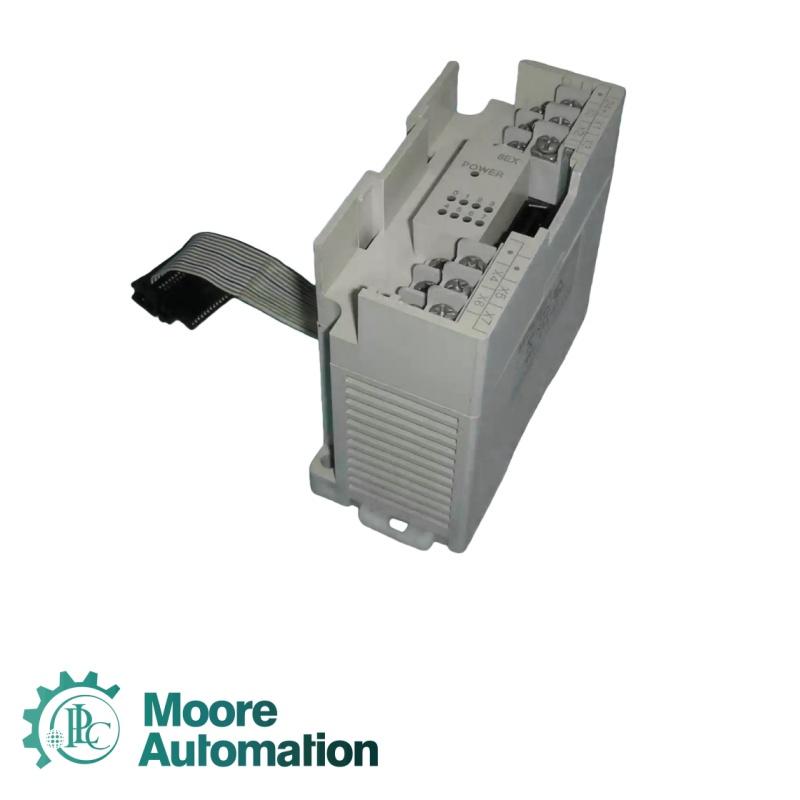

Mitsubishi FX2N-8EX PLC Expansion Module

Product Name:  FX2N-8EX

Brand Name:Mitsubishi

Product Origin:Japan

Payment: T/T

Shipping Port: Xia men

Delivery time: 1-3 days

❒Email: sales3@askplc.com

❒Mobile(Whats App): 86-18150117685

Number of Digital Input Channels: 8 isolated channels
Input Signal Type: DC sink input (NPN type)
Rated Input Voltage: 24VDC ±10%
Input Current: 7mA per channel (at 24VDC rated voltage)
Input Voltage Range (ON): 14VDC ~ 30VDC
Input Voltage Range (OFF): 0VDC ~ 5VDC
Response Time: ≤10ms (standard mode), ≤1ms (high-speed mode optional via PLC programming)
Input Impedance: 3.3kΩ (typical at 24VDC)
Channel Isolation: Channel-to-channel isolation (500VAC, 1 minute)
Power Consumption: 1.5W (max, supplied by PLC CPU)
Isolation Voltage: 2.5kVAC (power supply/bus to input circuits, 1 minute)
Electromagnetic Compatibility (EMC): Complies with EN 61000-6-2 (industrial immunity) and EN 61000-6-4 (industrial emissions)
Leakage Current: ≤0.1mA (per channel, at 24VDC)
Voltage Drop: ≤1.5VDC (at rated input current)
Operating Temperature Range: 0°C ~ +55°C
Storage Temperature Range: -20°C ~ +70°C
Operating Humidity Range: 35% ~ 85% RH (non-condensing, no dew formation)
Storage Humidity Range: 10% ~ 90% RH (non-condensing)
Vibration Resistance: 10Hz ~ 55Hz, 0.5mm amplitude (IEC 60068-2-6)
Shock Resistance: 15g acceleration, 11ms duration (IEC 60068-2-27)
Altitude: Up to 2000m (no derating required)

100% brand-new, factory-sealed products

Extensive stock available — orders usually ship within 1–3 days

Competitive pricing with real-time quotations

Professional service and dedicated technical support

One-year warranty on all products

Fast global shipping via DHL, UPS, FedEx, or TNT
