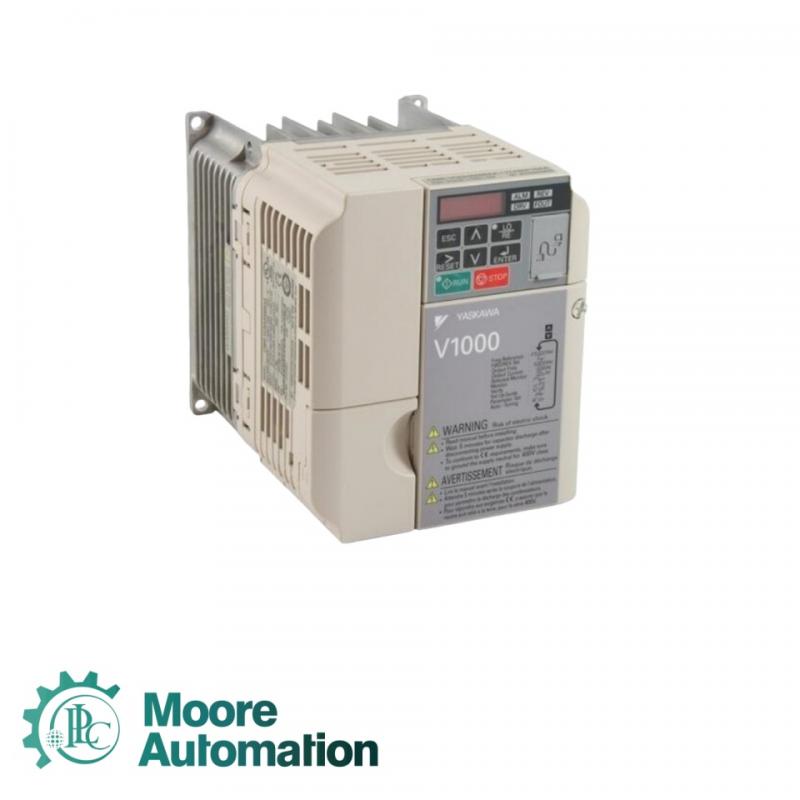

Yaskawa CIMR-VB4A0005BBA General Purpose Inverter AC Drive

Yaskawa CIMR-VB4A0005BBA is a high-performance three-phase frequency converter designed specifically for compact mechanical equipment and general industrial applications. This model has a three-phase input of 380-480 V AC and a rated output power of 2.2 kW (approximately 3 HP), which can drive various induction motors and permanent magnet synchronous motors.

Applicable region: B - China regional model
Voltage level: 4- Three phase 380-480 V AC ± 10%
Output power: 2.2 kW (approximately 3 HP)
Rated output current: 5.4 A
Input frequency range: 50/60 Hz ± 5%
Output frequency range: 0.1-400 Hz
Control methods: V/f control, Sensorless Vector Control
Starting torque: 200%/0.5 Hz (without encoder vector control mode)
Acceleration and deceleration time: 0.0~6000 seconds (adjustable)
Overload capacity: 150% rated current, lasting for 60 seconds
Cooling method: forced air cooling (with built-in cooling fan)
Protection level: IP20/open structure (suitable for installation inside cabinets)
Environmental specifications: B - Moisture proof and dust-proof (compliant with Chinese industrial standards)
Working temperature range: -10 ° C to+50 ° C (without condensation or freezing)
Storage temperature range: -20 ° C to+60 ° C
Relative humidity: ≤ 95% RH (no condensation)
Installation method: panel installation/rail installation
Vibration tolerance: 10-20 Hz: 9.8 m/s ² (1 G), 20-55 Hz: 5.9 m/s ²
Noise level:<65 dB (typical value)
Control terminals: multifunctional DI/DO port, analog input AI (0-10 V, 4-20 mA), RS-485 (Modbus RTU) communication interface
Braking method: Built in braking transistor, can be connected with external braking resistor
Protection functions: overcurrent, overvoltage, undervoltage, overload, overheating, ground short circuit, output phase loss
Dimensions: 60 mm (W) x 128 mm (H) x 150 mm (D)
Net weight: 1.7 kg
Transport weight: 3-4 kg (including packaging)
Certification standards: CE, UL, cUL, T Ü V, RoHS
