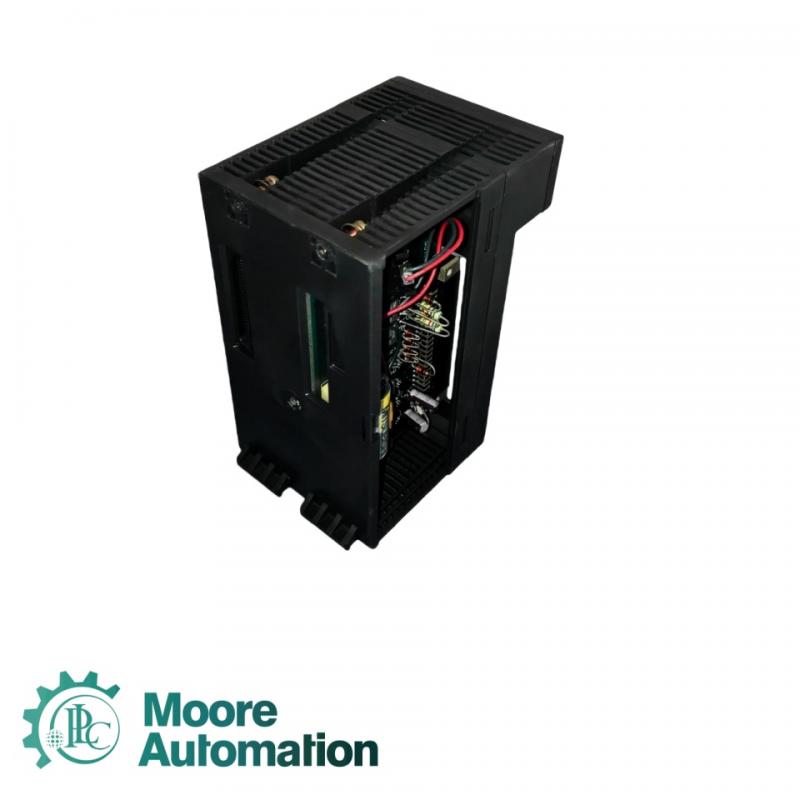

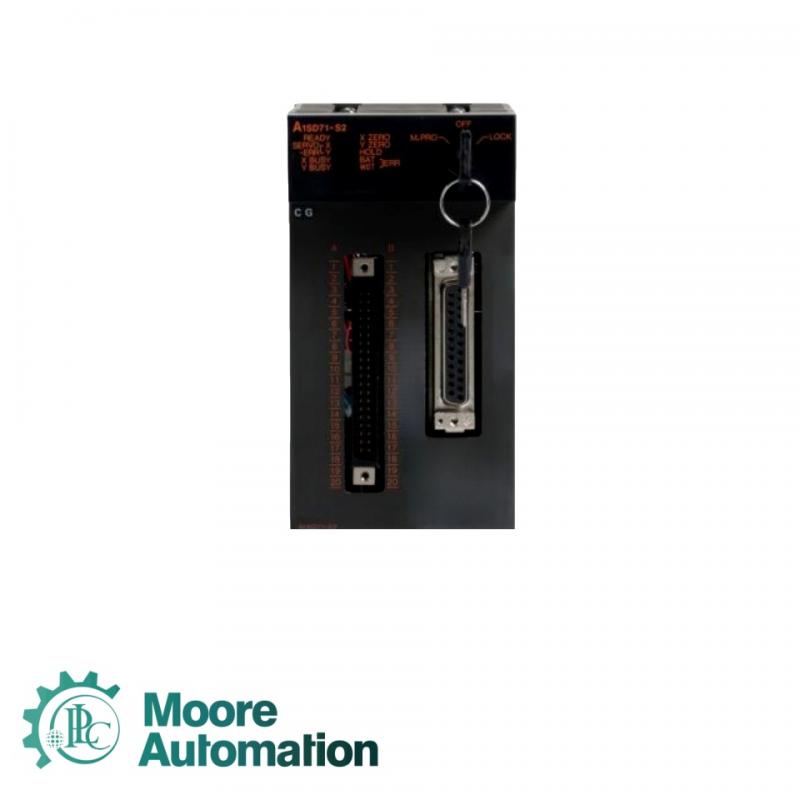

Mitsubishi A1SD71-S2 POSITIONING UNIT

Mitsubishi A1SD71-S2 POSITIONING UNIT

Brand:
Other
Order(MOQ):
1
Payment:
T/T
Product Origin:
Japan
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
in stock

Product Detail

²General info

Product Name:A1SD71-S2 Payment: T/T

Brand Name:Mitsubishi Shipping Port: Xia men

Product Origin:Japan Delivery time: 1-3 days

²Inquire to John Yang

Email: sales3@askplc.com Mobile(Whats App): 86-18150117685

²Product Description

The Mitsubishi A1SD71-S2 is a high-performance POSITIONING UNIT designed for use with the A1S series PLCs. It provides accurate and flexible positioning control for motion applications, supporting multiple control modes such as positioning, speed, and combined speed/positioning control. The module integrates seamlessly with Mitsubishi's A1SCPU programmable controllers, enabling precise motion synchronization and rapid data exchange within automation systems.

²Key Parameters

Number of I/O points: 48 points (empty 16 points + 32 points)
Applicable PC CPUs: A1SCPU
Applicable installation positions in the data link system: Master station, local station
Positioning modes: Positioning control mode; Speed/positioning control mode; Speed control mode (Select either at parameter.)
Positioning acceleration and deceleration times: 0 to 50000 (msec)
Inching: Disabled
Internal current consumption: 5 VDC, 0.8 A
Size mm (inch): 130(H) × 58.5(W) × 93.6(D) (5.12 × 2.74 × 3.69)
Weights kg (lb): 0.38 (0.84)
Operating temperature: 0°C to +55°C
Storage temperature: -25°C to +75°C
Relative humidity: 5% to 95% (non-condensing)
Vibration resistance: 10–55 Hz, 0.5 mm amplitude
Shock resistance: 10 G, 11 ms (3 times each in 3 directions)

²FAQ

▶Q : What PLC CPUs are compatible with the A1SD71-S2 module?
A : The A1SD71-S2 module is compatible with Mitsubishi A1SCPU series programmable logic controllers.

▶Q : What types of positioning control modes does this module support?
A : It supports three modes: positioning control, speed/positioning combined control, and speed control mode, selectable via parameter settings.

▶Q : What is the maximum pulse output frequency?
A : The module supports up to 500 kpps for high-speed and precision positioning operations.

▶Q : What are the power requirements for the A1SD71-S2?
A : The module consumes 0.8 A at 5 VDC, supplied from the PLC base unit.
