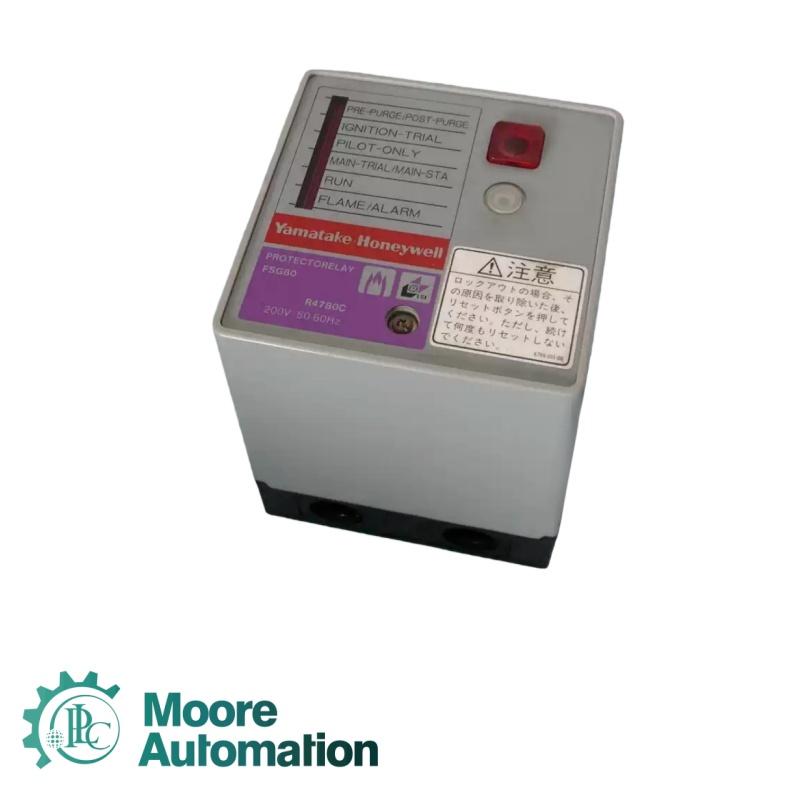

Yamatake Honeywell R4780C1019-2 FSG80 flame burner

Yamatake Honeywell  R4780C1019-2 FSG80 flame burner

Detection Range: 0.5–10 meters (dependent on burner size and flame type)
Response Time: < 1 second
Sensitivity Adjustment: Built-in adjustable sensitivity
Self-check Function: Automatic flame failure detection and alarm
Output Signal: Relay contact for flame OK / flame failure
Electrical Specifications
Power Supply Voltage: 100–240 V AC, 50/60 Hz
Power Consumption: 8 W typical
Signal Output Current: 0.5 A maximum for relay contacts
Output Type: SPDT relay, normally open / normally closed
Control Voltage Compatibility: 24–230 V AC/DC for interfacing with burner control circuits
Isolation: Electrical isolation between sensor input and control output
Mechanical Specifications
Enclosure Material: Flame-retardant plastic with aluminum backing
Mounting Type: Panel mount or bracket mount
Cable Connection: Screw terminals, standard industrial wiring
Flame Window Material: Quartz glass for UV/IR detection
Ingress Protection: IP54 for industrial environment
Environmental Specifications
Operating Temperature: –20°C … +60°C
Storage Temperature: –40°C … +80°C
Relative Humidity: 5% … 95% non-condensing
Vibration Resistance: 1 g, 10–55 Hz
Shock Resistance: 10 g, 11 ms
