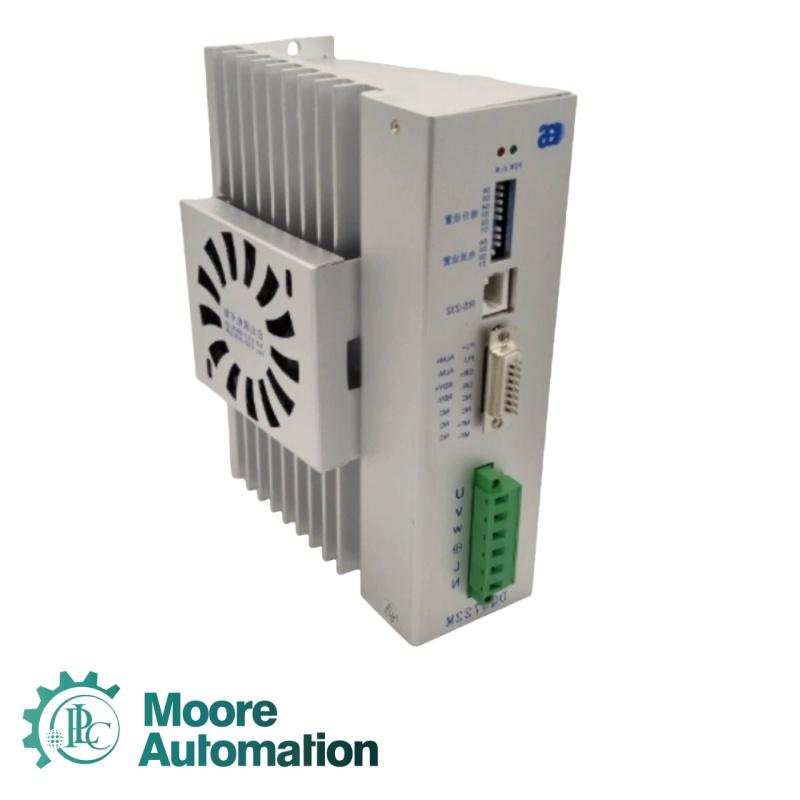

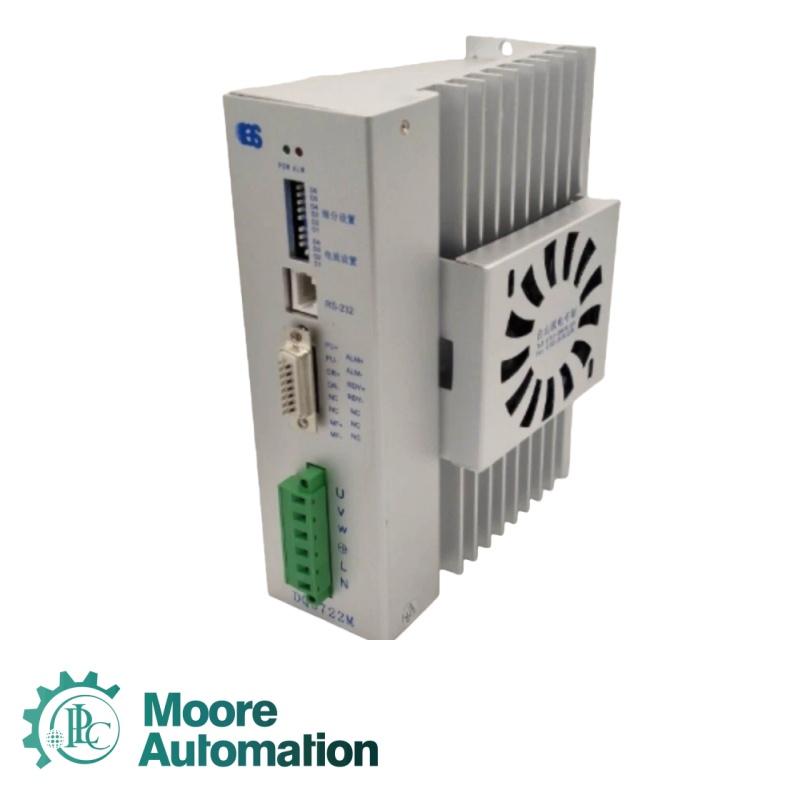

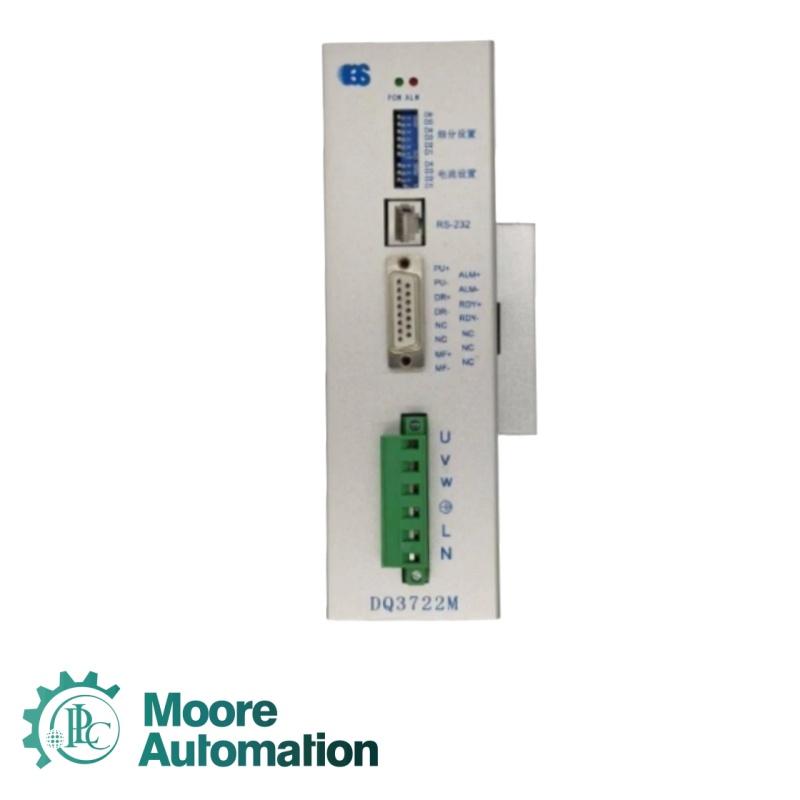

BS DQ3722M Three phase stepper motor driver

BS   DQ3722M    Three phase stepper motor driver

Input Voltage: 24–80 VDC
Output Current: 2.2 A RMS per phase
Peak Current: 3.1 A per phase (for short duration)
Control Signal Voltage: 5 V TTL / CMOS compatible
Step Input Frequency: Up to 200 kHz
Microstepping Resolution: 200–51,200 steps/rev selectable
Pulse Input Type: Single-ended or differential (selectable)
Phase Protection: Overcurrent, short-circuit, and thermal protection
Performance Parameters
Step Angle: 1.8° (full step, default)
Maximum Slew Rate: 3,000 steps/sec
Torque Control: Adjustable current limit for motor torque optimization
Acceleration/Deceleration Control: Programmable for smooth motion
Resonance Suppression: Built-in anti-resonance algorithm
Overheat Protection: Automatic current reduction if temperature exceeds threshold
Response Time: < 10 µs
Environmental Specifications
Operating Temperature: 0°C … +50°C
Storage Temperature: –20°C … +70°C
Relative Humidity: 5% … 95% non-condensing
Vibration Resistance: 1 g, 10–55 Hz
Shock Resistance: 10 g, 11 ms
