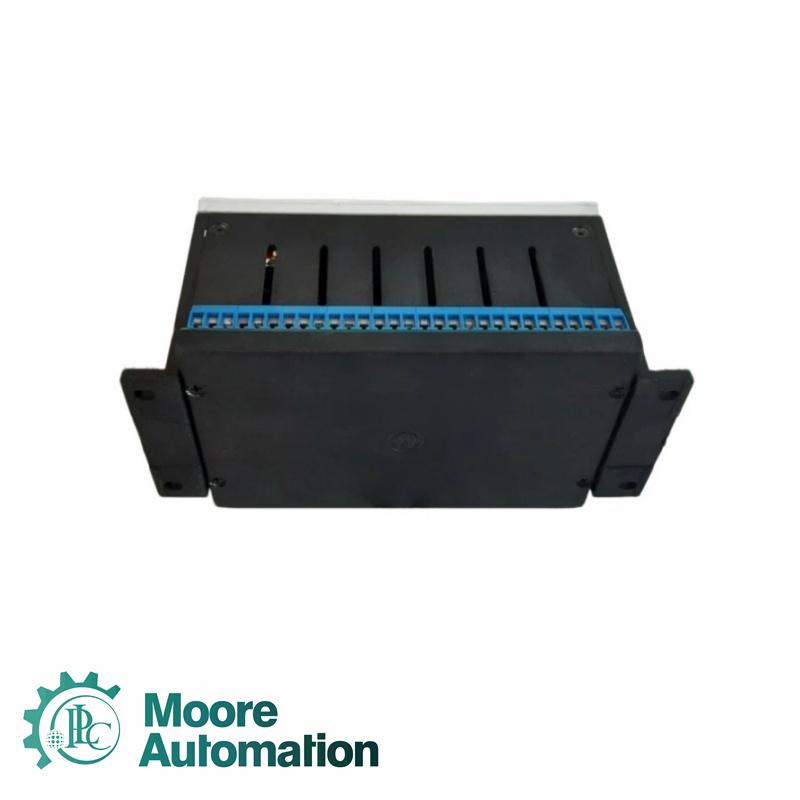

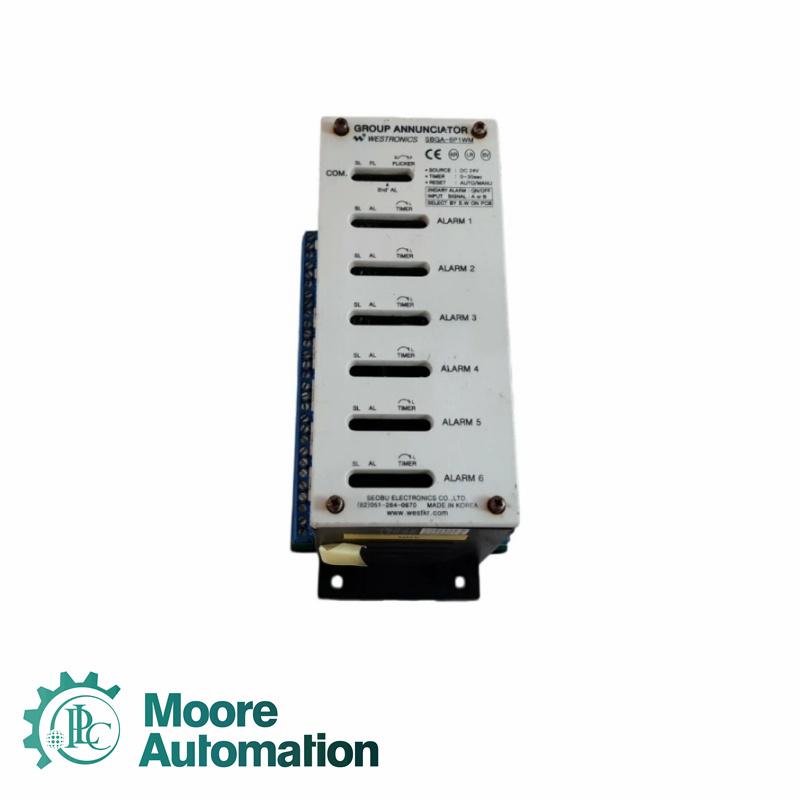

Westronics SBGA-6P1WM 6 POINT GROUP ANNUNCIATOR

Sale Manager: John Yang
Email: sales3@askplc.com

Mobile(WhatsApp):  86-18150117685

SBGA series are high quality Annunciators which have visible and audible self-alarm and extenal 2ndary alarm at sensing abnormal signal,and developed so as to be suitable for an alarm system of marine, power plant, steel, chemical plant and any other industrial facilities.And alarm system can be consist of maximumly 600 points by connecting the extension unit (SBGA-P1WEl.Each alarm is separated from the other, and input signal (NO or NCl and 2ndary alarm of each alarm can be individually controlled through the selection at alarm card

Dimensions: 2x18.5x26.1 cm
Weight: 0.46 kg
Unit Types: 1WM: Mast unit (with common card); 6P: 6 Point alarm
Power Rating: DC 24 V
Power Variation: DC 19–30 V
Accuracy: Less than ±1%
Timer: Flickering range: 1T–3T/sec
Alarm Delay Setting: 0–30 sec
Contact Type: "NO" or "NC" (selectable via DIP switch on each alarm card)
Input Signal: Loop current below 10 mA per point
Cable Length: Within 1000 m (≥0.75 mm²)
Visual Lamp Power: 2 W max.
Output Contact DC: DC 30 V 1.0 A (resistive)
Output Contact for Buzzer: DC 30 V 0.4 A inductive, p.f=0.4
Switching Capacity: 24 V DC: 2 A resistive / 0.8 A inductive, p.f=0.4
AC Switching Capacity: 120 V AC: 1 A resistive / 0.4 A inductive, p.f=0.4
Electrical Life Expectancy: 10 × 10⁶ cycles
Mechanical Life Expectancy: 10,000 × 10⁶ cycles
Secondary Alarm Contact: "NC" dry contact
Insulation Resistance: ≥200 MΩ between live part and enclosure
Surge Transient: 0.5 kV, 50 µs line/line
Enclosure Material: PC, flame retardant UL94V-0, TRIREX3025G10/G/F reinforced
Insulating Material: PA, UL94V-0
Terminal Block Material: Cu/Zn
Rated Voltage: 250 V (UL1059, EN60998)
External Wire Size (max): AWG 22–14 (2.5 mm²)
Terminal Block Test Voltage: 2.0 kV
Rated Torque: 0.5 Nm / M3
Screw Size / Terminal Spacing: 5.0 mm
Ambient Operating Temperature: -25 °C to +55 °C
Storage Temperature: -25 °C to +85 °C
Humidity Range: 45%–85% RH
Vibration Test: 30 Hz for 2 hours (acceleration ±0.7 G)
Total Current Consumption: ≤140 mA
Recommended Power Supply with Visual Lamp (2 W): ≥1.0 A
