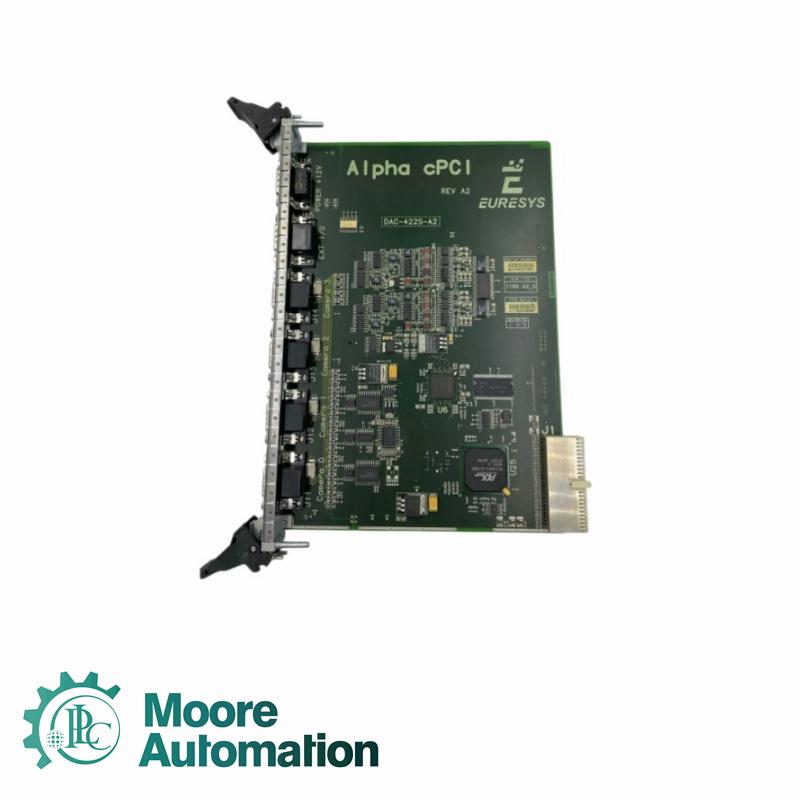

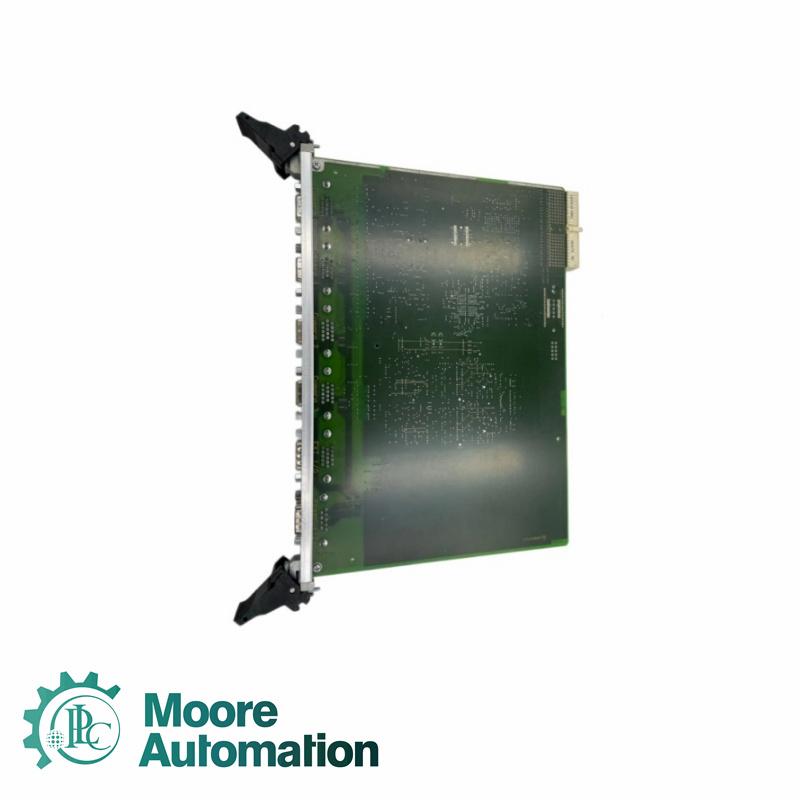

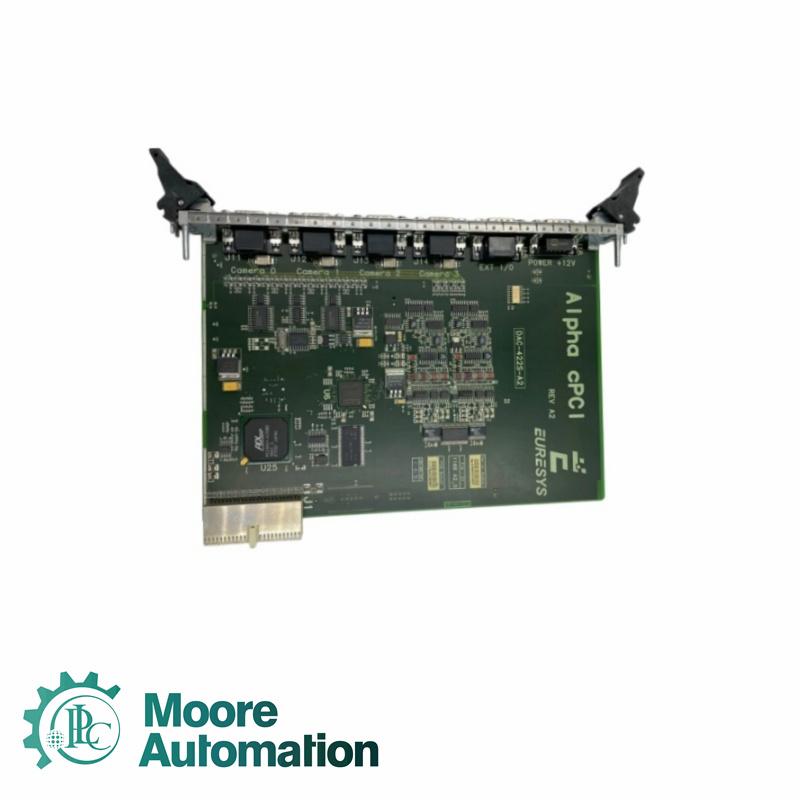

ALPHA CPCI-2IPC-6U Bus Motherboard Module

Sale Manager: John Yang
Email: sales3@askplc.com

Mobile(WhatsApp):  86-18150117685

The CPCI-2IPC-6U module provides a high performance flexible I/O scheme, that supports industry standard Industry PacksÔ. For application requiring high performance, high density I/O or unique combinations, the CPCI-2IPC-6U is the perfect solution. The Local DSP’s can be used to simply move data to and from the CPCI bus or provide local processing functions such as local PID controls, FFT’s, digital filtering, etc. Custom application software can be downloaded to the DSP via the CPCI bus. WinNT drivers are
·ADA-08 ADC & DAC
·ADC-08 12 bit ADC
·ADC-16 12 bit ADC
·CIO-32 32 ttl I/O
·CSI-10 SCSI
·DAC-08 14 bit DAC
·FPGA-IO User I/O
·INP-16 Isolated input
·LAN-100 100 base T
·LAN-12 Arcnet
·LAN-15 1553-DDC/ACE
·MFI-IP Multi function
·OUT-16 Isolated output
·SCC-04 4 232/422/485
·SCC-08 Octal serial
·1553B-IP SUMMIT 1553

Manufacturer: ALPHA
Model: CPCI-2IPC-6U
Module Type: CompactPCI DSP I/O Module
Form Factor: 6U CompactPCI
DSP Processors: Two TMS320C31 DSP
SRAM Memory: 512K bytes zero wait state per DSP
Flash Memory: 4 Mbit per DSP
Industry Pack Carrier: Quad Industry Pack carrier
Industry Pack Slots: 4 per carrier
Industry Pack Speed: 8 MHz / 32 MHz supported
PCI Bridge: Local DEC PCI bridge
DSP Communication: Independent connection to CPCI bus
Firmware Download: Via CompactPCI bus
Front Panel I/O: CE approved connectors
Rear Panel I/O: Supported
Operating System Support: Windows NT / Windows 95
Supported Industry Packs: ADA-08 ADC & DAC; ADC-08 12 bit ADC; ADC-16 12 bit ADC; CIO-32 32 TTL I/O; CSI-10 SCSI; DAC-08 14 bit DAC; FPGA-IO User I/O; INP-16 Isolated Input; LAN-100 100Base-T; LAN-12 Arcnet; LAN-15 1553-DDC/ACE; MFI-IP Multi Function; OUT-16 Isolated Output; SCC-04 4 Serial 232/422/485; SCC-08 Octal Serial; 1553B-IP SUMMIT 1553

· Two TMS320C31 DSP control engines
· 512K bytes of zero wait state SRAM per DSP
· 4 Mbit Flash memory per DSP
· QUAD Industry PackÔ carrier, two per DSP
· Supports 8 and 32 Mhz Industry PacksÔ
· Local DEC PCI bridge to two independent DSP’s
· Application firmware can be downloaded to each of the DSP’s via the CompactPCI bus
· Front panel I/O with CE approved connectors
· 6U CompactPCI form factor with front and rear panel I/O
· Windows NT© and Windows 95© drivers available
