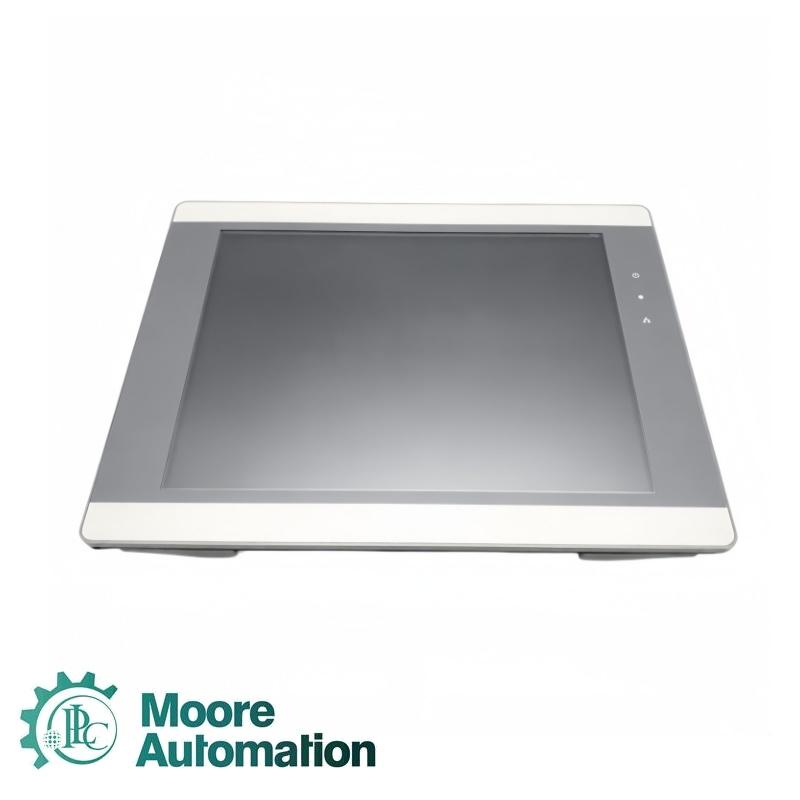

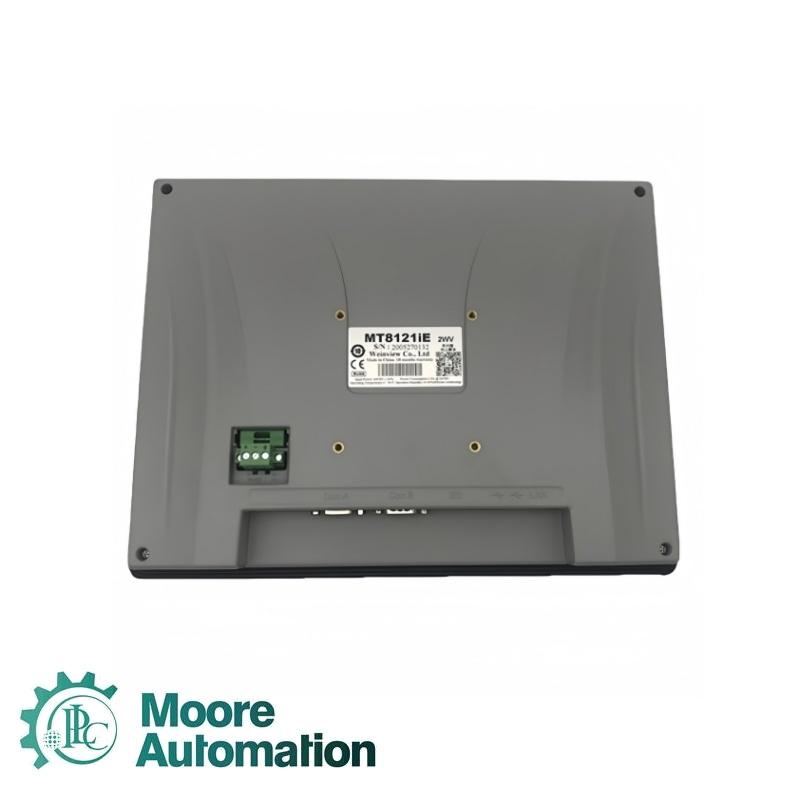

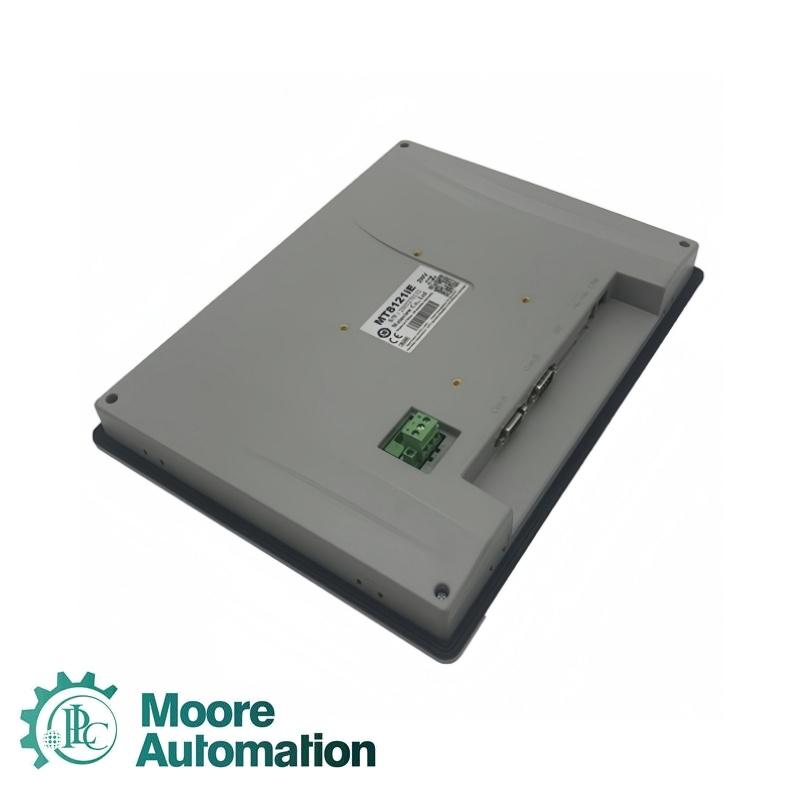

 Weintek MT8121iE 12.1-inch IPS Human Machine Interface
Weintek MT8121iE Weintek MT8121iE Weintek MT8121iE

Weintek MT8121iE 12.1-inch IPS Human Machine Interface

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

  • Order(MOQ):

    1

  • Payment:

    T/T

  • Product Origin:

    Taiwan

  • Color:

    Brand New

  • Shipping Port:

    Xiamen

  • Lead Time：

    3-5 Days

  • Warranty:

    1 Year
Contact Us

  • Product Detail

Specifications

Weintek MT8121iE 12.1-inch IPS Human Machine Interface combines a 1024 x 768 IPS display, resistive touch input, 128 MB flash memory and multiple industrial communication interfaces. Its panel-mount design, built-in power isolation and front-panel protection support operator-interface use in industrial control systems.

Product type
Human machine interface
Display
12.1-inch IPS TFT
Resolution
1024 x 768 pixels
Brightness
500 cd/m²
Contrast ratio
1000:1
Display colors
16.7 million
Backlight
LED, more than 30,000 hours
Viewing angle (T/B/L/R)
89° / 89° / 89° / 89°
Pixel pitch
0.240 x 0.240 mm
Touch panel
4-wire resistive
Touch accuracy
Active-area X ±2%; Y ±2%
Flash memory
128 MB
RAM
256 MB
Processor
32-bit RISC, 600 MHz
SD card
SD / SDHC
USB host
USB 2.0 x 1
USB client
USB 2.0 x 1
Ethernet
10/100 Base-T x 1
Serial ports
COM1 RS-232/RS-485 2W/4W; COM3 RS-485 2W
RS-485 isolation
Dual isolation
Input power
24 V DC ±20%
Power consumption
1.5 A at 24 V DC
Voltage resistance
500 V AC for 1 minute
Isolation resistance
More than 50 MΩ at 500 V DC
Dimensions (W x H x D)
322 x 243 x 51 mm
Panel cutout
305 x 231 mm
Weight
Approx. 2.0 kg
Mounting
Panel mount
Front protection
NEMA 4 / IP65 compliant
Operating temperature
0 to 50 °C
Storage temperature
-20 to 60 °C
Relative humidity
10 to 90%, non-condensing
RTC
Built-in
Software
EasyBuilder Pro V4.00.01 or later
Certification
CE marked
Enclosure
Plastic

Application Industry

01
Machine control visualizationPresents process values, operating status and control objects on a 12.1-inch panel.
02
Serial device integrationConnects controller and peripheral devices through isolated RS-232 and RS-485 interfaces.
03
Ethernet-connected automationSupports project transfer and communication with Ethernet devices on a 10/100 Base-T network.
04
Production data handlingUses removable or USB storage for recipes, event logs, data logs and project backup.

FAQ

What panel cutout is required for Weintek MT8121iE?
Prepare a 305 x 231 mm opening and verify mounting-clearance and clamp requirements before machining the enclosure.
What power supply should be used with Weintek MT8121iE?
Use a 24 V DC source within ±20% and size the supply for the documented 1.5 A consumption.
Which communication ports are available on Weintek MT8121iE?
COM1 supports RS-232 or RS-485 two-wire/four-wire operation, COM3 supports RS-485 two-wire operation, and one 10/100 Base-T Ethernet port is provided.
Which engineering software is specified for Weintek MT8121iE?
Use EasyBuilder Pro V4.00.01 or a later supported version for project development and transfer.
How can project and production data be transferred on Weintek MT8121iE?
Use the SD/SDHC slot, USB host, USB client or Ethernet interface according to the approved backup and maintenance procedure.
