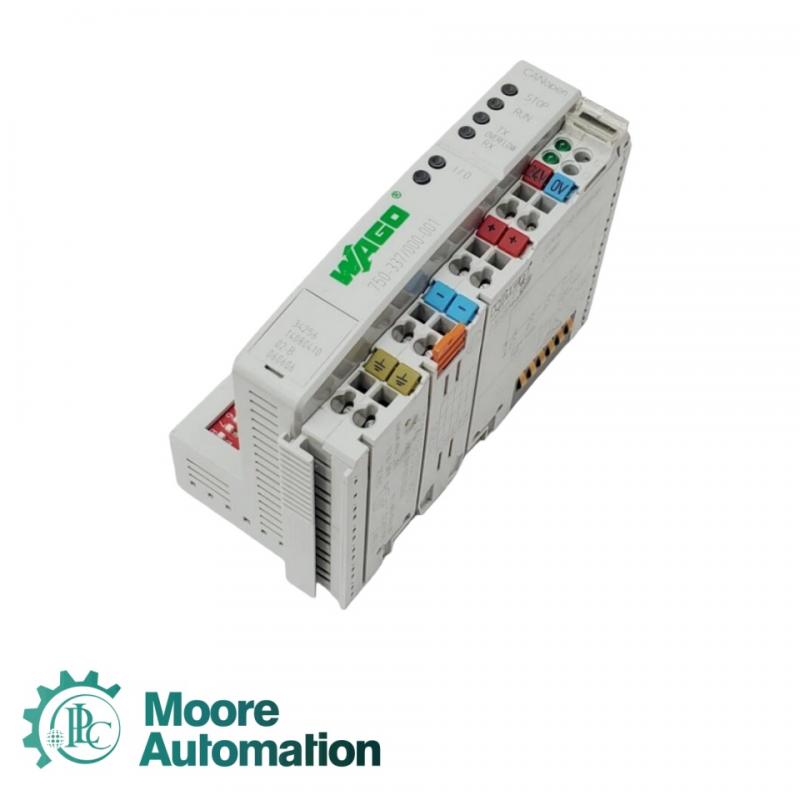

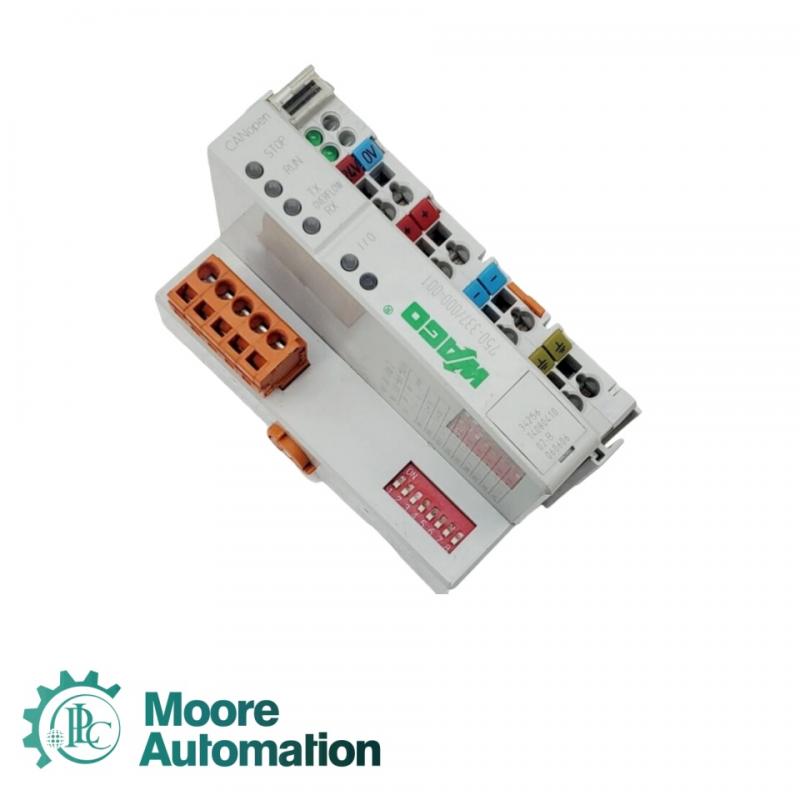

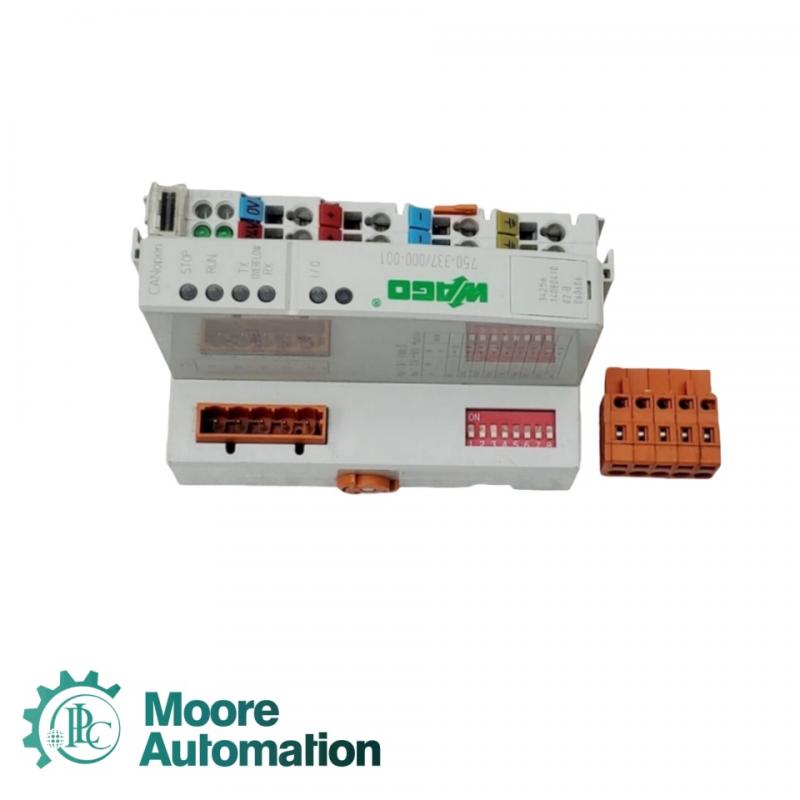

WAGO 750-337/000-001 CANOPEN FIELDBUS COUPLER

WAGO 750-337/000-001 CANOPEN FIELDBUS COUPLER

WAGO 750-337/000-001 CANOPEN FIELDBUS COUPLER

Brand:
Other
Order(MOQ):
1
Payment:
T/T
Product Origin:
Germany
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
in stock

Product Detail

Product Specifications

Product Name: 750-337/000-001 Payment: T/T

Brand Name:WAGO Shipping Port: Xia men

Product Origin: Germany Lead Time：in stock

Order(MOQ):1 Delivery time: 1-3 days

John Yang: At Your Service!
Email: sales3@askplc.com	Mobile(Whats App): 86-18150117685

Product Information

WAGO 750-337/000-001 is a high-performance CANopen bus coupler designed specifically for WAGO I/O systems, supporting its connection as a slave to CANopen networks. This module uses MCS (Multi Contact System) connectors, providing a baud rate of up to 1 Mbaud and supporting up to 110 I/O modules. By using PDO (Process Data Object) and SDO (Service Data Object) protocols, automatically detect connected modules and create local process images to ensure efficient and stable data transmission.

Parameter Information

Power supply voltage: 24 VDC (redundant input)
Voltage range: 18.5 VDC to 30.5 VDC
Typical current consumption: 250 mA (at 24 VDC)
Maximum power consumption: 6 W
Control signal voltage: 24 V (typical value)
Control signal current: 100 mA
Connection method: COMBICON screw connection
Wire specifications: Solid wire: 0.2 mm ² to 2.5 mm ²; Thin stranded wire: 0.2 mm ² to 2.5 mm ²
Wire section AWG: 24 to 12 AWG
Stripping length: 7 mm
Installation method: DIN rail installation
Dimensions (width x height x depth): 45 mm x 99 mm x 112 mm
Environmental temperature (operation): -40 ° C to 70 ° C
Environmental temperature (storage/transportation): -40 ° C to 85 ° C
Relative humidity (operation): 30% to 95% (no condensation)
Relative humidity (storage/transportation): 30% to 95% (non condensing)
Protection level: IP20
Vibration (operation): Complies with IEC 60068-2-6 standard, 5g, 150 Hz
Impact (operation): Complies with IEC 60068-2-27 standard, 15g
Electromagnetic compatibility: Complies with EMC Directive 2014/30/EU, IEC 61000-6-2, IEC 61000-4-2 (ESD) and other standards
Certification: CE

FAQ

Q: What bus protocols does WAGO 750-337/000-001 support?
A: This module supports the CANopen protocol and serves as a slave station for the WAGO I/O system to communicate with the CANopen network.

Q: How to set the baud rate of WAGO 750-337/000-001?
A: The baud rate can be set through DIP switches and supports 9 different baud rates.

Q: How many I/O modules does this module support?
A: WAGO 750-337/000-001 supports up to 110 I/O modules.

Q: How to connect WAGO 750-337/000-001 to CANopen network?
A: Connect to CANopen network through MCS connector to ensure the stability and reliability of data transmission.
