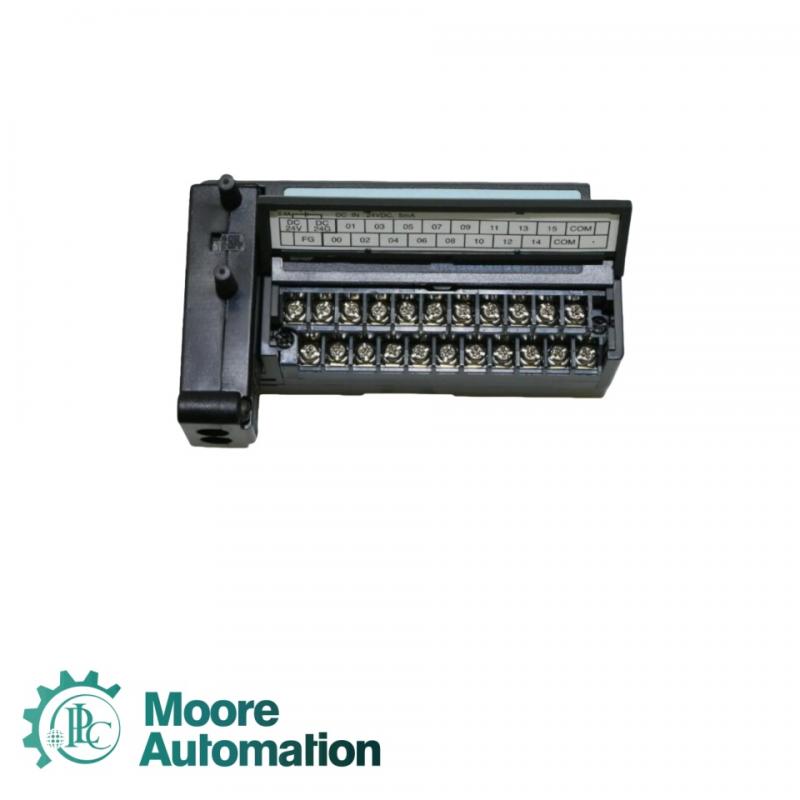

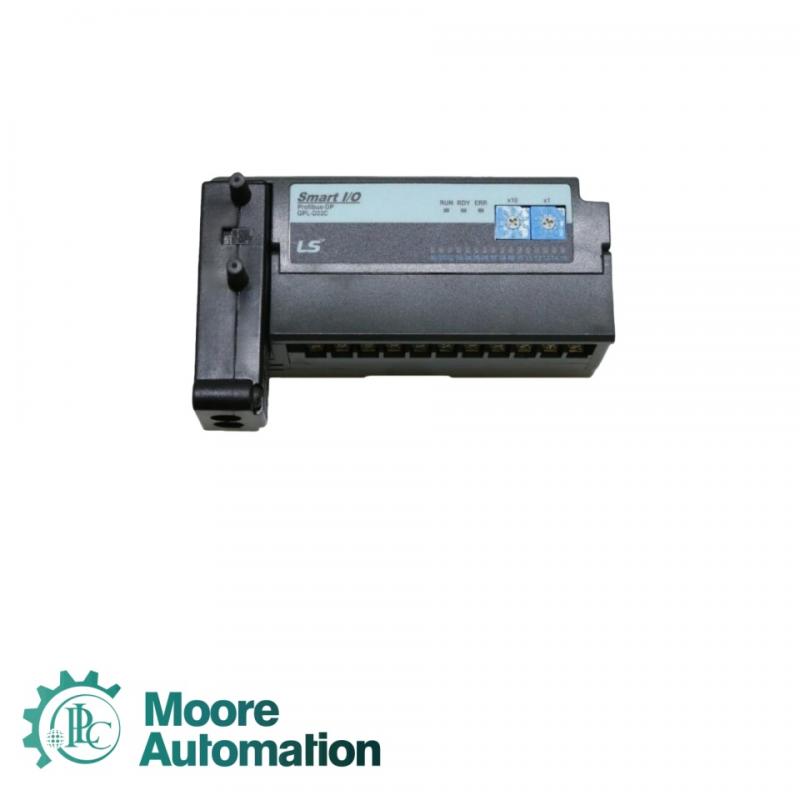

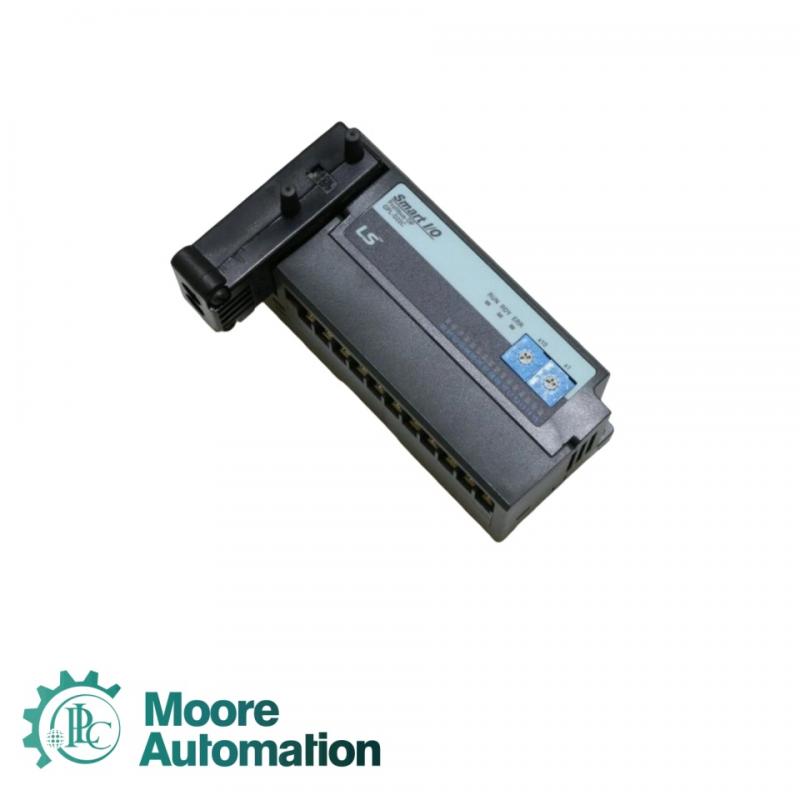

LS GPL-CON(S) SMART I/O Module

LS GPL-CON(S) SMART I/O Module

Brand:
Other
Order(MOQ):
1
Payment:
T/T
Product Origin:
South Korea
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
in stock

Product Detail

Product Specifications

Product Name: GPL-CON(S) Payment: T/T

Brand Name:LS Shipping Port: Xia men

Product Origin: South Korea Lead Time：in stock

Order(MOQ):1 Delivery time: 1-3 days

John Yang: At Your Service!
Email: sales3@askplc.com	Mobile(Whats App): 86-18150117685

Product Information

The LS GPL-CON (S) SMART I/O Module is designed to provide efficient and flexible input-output solutions for industrial automation systems. Among them, the GPL-CON (S) module, as one of its key components, is widely used in applications that require high reliability and real-time data exchange, such as intelligent manufacturing, process control, and remote monitoring.

Parameter Information

Communication protocols: Profibus DP, DeviceNet, Modbus, RAPIEnet
Power supply voltage: 24 VDC (redundant input)
Voltage range: 18.5 VDC to 30.5 VDC
Typical current consumption: 250 mA (at 24 VDC)
Maximum power consumption: 6 W
Control signal voltage: 24 V (typical value)
Control signal current: 100 mA
Connection method: COMBICON screw connection
Wire specifications: Solid wire: 0.2 mm ² to 2.5 mm ²; Thin stranded wire: 0.2 mm ² to 2.5 mm ²
Wire section AWG: 24 to 12 AWG
Stripping length: 7 mm
Installation method: DIN rail installation
Dimensions (width x height x depth): 45 mm x 99 mm x 112 mm
Environmental temperature (operation): -40 ° C to 70 ° C
Environmental temperature (storage/transportation): -40 ° C to 85 ° C
Relative humidity (operation): 30% to 95% (no condensation)
Relative humidity (storage/transportation): 30% to 95% (non condensing)
Protection level: IP20
Vibration (operation): Complies with IEC 60068-2-6 standard, 5g, 150 Hz
Impact (operation): Complies with IEC 60068-2-27 standard, 15g
Electromagnetic compatibility: Complies with EMC Directive 2014/30/EU, IEC 61000-6-2, IEC 61000-4-2 (ESD) and other standards
Certification: CE

FAQ

Q: What communication protocols does the GPL-CON (S) module support?
A: The GPL-CON (S) module supports multiple industrial communication protocols, including Profibus DP, DeviceNet, Modbus, RAPIEnet, etc., to meet the communication needs of different systems.

Q: What is the power supply voltage of this module?
A: The power supply voltage of GPL-CON (S) module is 24 VDC, supporting redundant inputs, with a voltage range of 18.5 VDC to 30.5 VDC.

Q: What is the typical current consumption of the module?
A: At a voltage of 24 VDC, the typical current consumption of the GPL-CON (S) module is 250 mA.

Q: What is the installation method for this module?
A: The GPL-CON (S) module adopts a DIN rail installation method, which facilitates installation and maintenance in industrial control cabinets.
