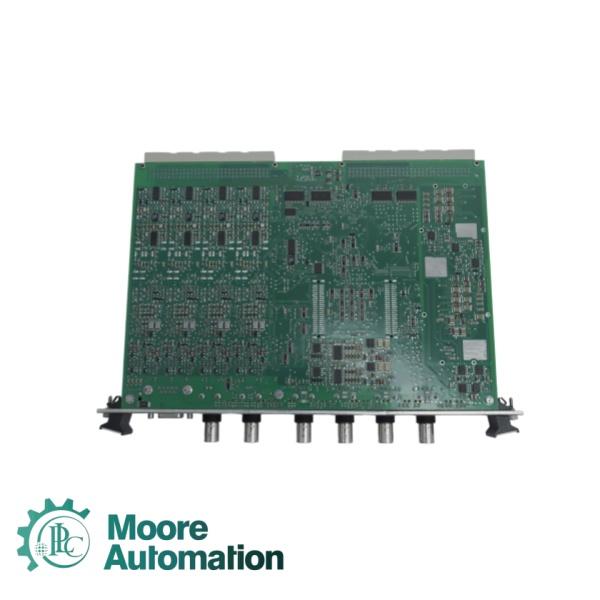

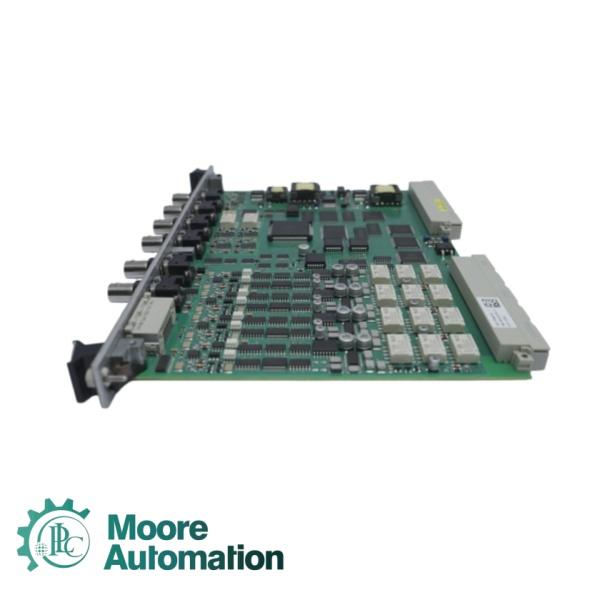

VIBRO METER  VM600 MPC4 200-510-070-112

The Vibro-Meter VM600 MPC4 200-510-070-112 is a machinery protection card that serves as the central element in the VM600 series Machinery Protection System (MPS) from Meggitt's Vibro-Meter® product line . This highly versatile card is designed for continuous online monitoring and real-time measurement of critical rotating machinery . The MPC4 (Multi-Purpose Card) functions as both a system controller and a data communications gateway for a VM600 rack-based machinery protection system and/or condition monitoring system (CMS) . It integrates all Traditional Safety Instrumentation (TSI) functions into a single module, with monitoring and protection functions configured via software to meet site-specific requirements .

Detailed Information

Part Number: VM600 MPC4 200-510-070-112

Product Type: Machinery Protection Card / Multi-Purpose Card

System Compatibility: VM600 Machinery Protection System (MPS)

Channels: 4 dynamic signal inputs + 2 speed/tachometer inputs (6 channels total)

AC Input Range: ±10 V max

DC Input Range: 0 to +20 V or 0 to -20 V

Common Mode Voltage Range: -50 to +50 V

Common Mode Rejection Ratio (CMRR): >60 dB at 50 Hz

Crosstalk: -72 dB

Input Impedance: 200 kΩ

Analog Frequency Range: DC to 60 kHz (-3 dB)

DC Current Input Range: 0 to 25 mA

Current Measuring Resistor: 324.5Ω

Features

• Continuously online machinery protection card

• Real-time measurement and monitoring using state-of-the-art DSP techniques

• 4 dynamic signal channels and 2 tachometer (speed) channels, all individually programmable

• Programmable broad-band and narrow-band filters

• Simultaneous amplitude and phase monitoring in order-tracking mode

• Programmable Alert, Danger and OK set points

• Adaptive Alert and Danger levels

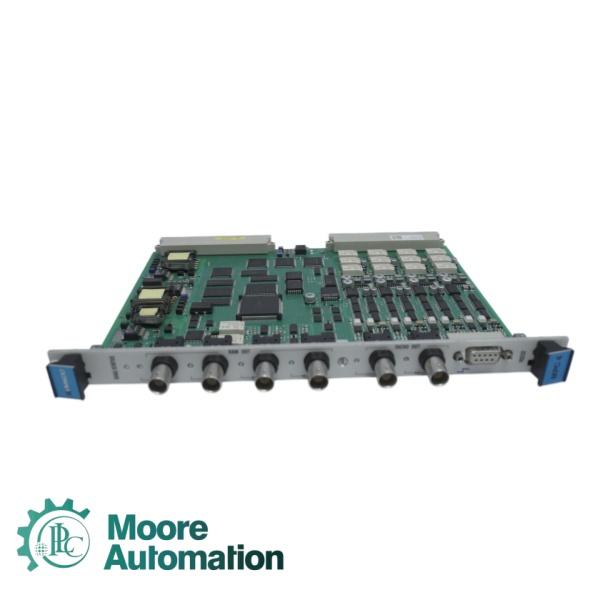

• Front-panel BNC connectors for easy analysis of buffered “raw” sensor signals

• Front-panel LEDs indicate status and alarms

Application

The VM600 MPC4 is used in high-reliability and safety-critical rotating machinery applications across multiple industries :
