Product Infor
Brand name: PLC

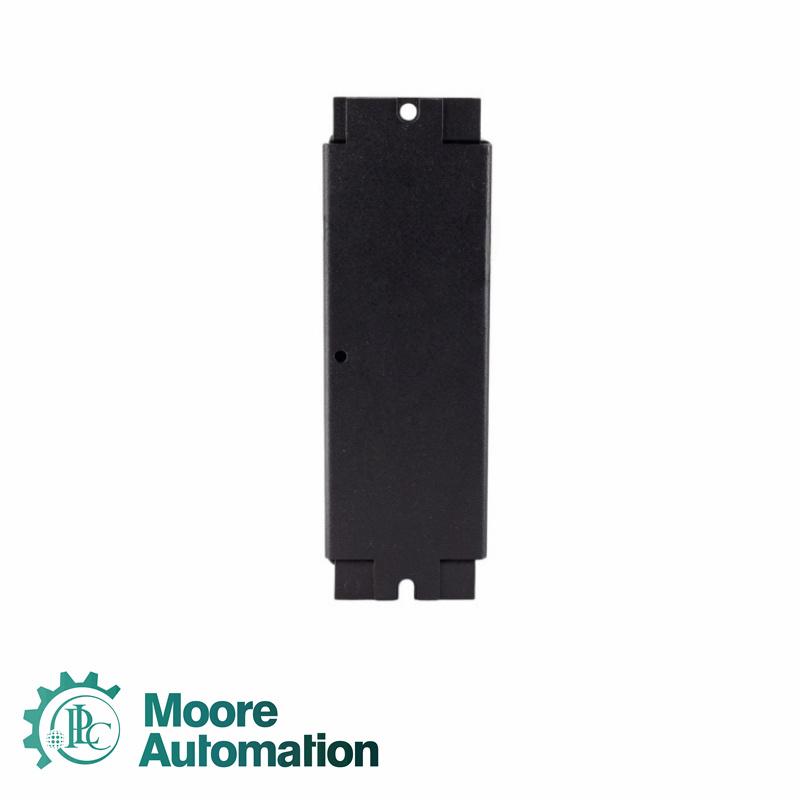

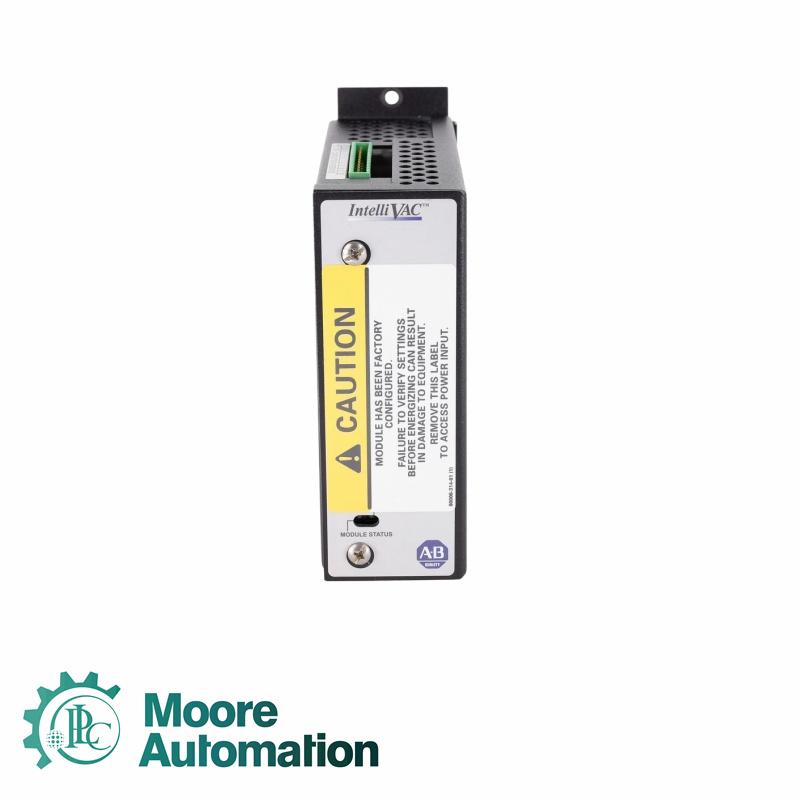

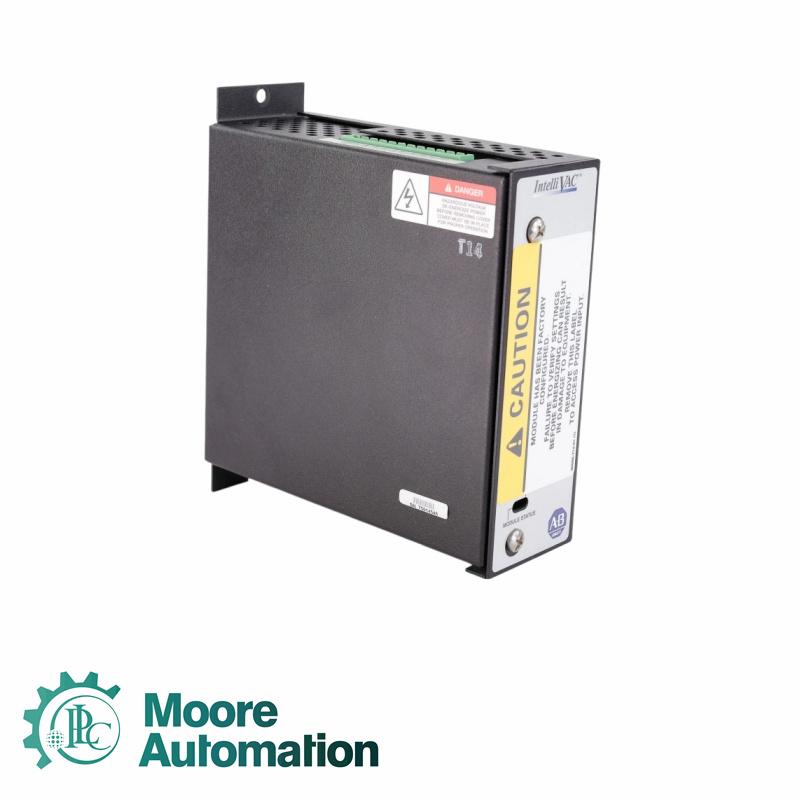

Model: 1503VC-BMC5-MC1
Warranty period: 1 year
Condition: 100% original new
Transportation period: DHL FEDEX EMS UPS TNT
Full Details
Parameter
Value
Main Input Voltage (AC)
L1–L2/N: 110–240 V rms (+10% / -15%), 47–63 Hz
Main Input Voltage (DC)
110–250 V DC (+10% / -15%)
Status Output Contacts (AC)
250 V rms, 5 A (R load); 2 A (reactive, PF = 0.4)
Status Output Contacts (DC)
30 V DC, 5 A (R load); 2 A (reactive, L/R = 7 ms)
Command Input Range (AC)
70–240 V rms
Command Input Range (DC)
70–250 V DC
Max ON-State Current (Open/Close Command)
11 mA AC @ 276 V AC, 60 Hz, 60°C; 2.4 mA DC @ 276 V DC, 60°C
Min ON-State Current (Open/Close Command)
2.5 mA AC @ 70 V AC, 60 Hz, 60°C; 1.2 mA DC @ 68 V DC, 60°C
Max OFF-State Current (Open/Close Command)
1.9 µA @ 60 V AC, 60 Hz, 60°C; 900 µA @ 60 V DC, 60°C
Inrush Current
120/240 V AC or DC
Idle Current (Max, coil not energized)
120/240 V AC or DC
Hold Current (Max)
120/240 V AC or DC
Close Current
120 V AC or DC
Operating Temperature
0°C to +60°C (ambient at control module)
Non-Operating Temperature
-40°C to +85°C
Altitude
-1000 to 5000 m
Pollution Level
Level 1 (UL840 / IEC 60664-1)
Humidity
95% non-condensing
Shock (Operational)
15 g peak, 11 ms
Vibration (Operational)
10–57 Hz: 0.015 in p-p; 57–150 Hz: 2.5 g
Standards & Approvals
CE, cULus, CSA, IEC pending
Qiuck Details
The 1503VC-BMC5-MC1 IntelliVAC Contactor Control Module is a high-performance control solution designed for medium-voltage vacuum contactor systems used in industrial motor control applications. It is part of the advanced IntelliVAC control platform developed for reliable switching and protection of vacuum contactors in demanding electrical environments.
|
Ask for Quotation |
|
|
|
Contact: John Yang |
|
|
Email: sales3@askplc.com |
|
|
Mobile(WhatsApp): 86-18150117685 |
Application
High-altitude mining site: operates reliably in high-elevation environments, ensuring stable motor start-stop control in remote mountain distribution systems.
Rail transit manufacturing plant: designed for strong mechanical vibration environments, suitable for installation in transportation control systems with continuous movement stress.
Thermal power plant: supports wide-range AC/DC power input, serving as a core control unit for valves and circuit breakers under unstable electrical conditions.
Oil refinery facility: built for high humidity and elevated temperature environments, ensuring stable long-term operation in harsh process areas.
Marine equipment manufacturing plant: compliant with multiple international standards, suitable for integration into ship power distribution systems for monitoring and control functions.
Careful Customer Service
Over millions spares inventory
Fast lead times deliver uptime globally
100% brand-new and original products
Competitive prices and specific dealer discounts
Frequently Asked Questions
Q: Can the 1503VC-BMC5-MC1 module be directly connected to a DC 24V command signal?
A: No. The command input requires DC 70V to 250V for stable activation. Signals below this range may not reliably drive the module.
Q: Does the 1503VC-BMC5-MC1 require derating at a high altitude of 5000 meters?
A: No. It is designed to operate from -1000 to 5000 meters without performance degradation within its specified temperature range.
Q: What is the maximum AC current that the 1503VC-BMC5-MC1 status output contacts can drive?
A: It supports up to 5A for resistive loads at AC 250V, and up to 2A for inductive loads under PF=0.4 conditions.
Q: Are the environmental humidity requirements for the 1503VC-BMC5-MC1 strict?
A: No. It supports operation up to 95% relative humidity as long as condensation is avoided.
Q: How is the shock resistance of the 1503VC-BMC5-MC1 control module?
A: It withstands vibration up to 2.5g and short-duration mechanical shocks up to 15g during operation.
