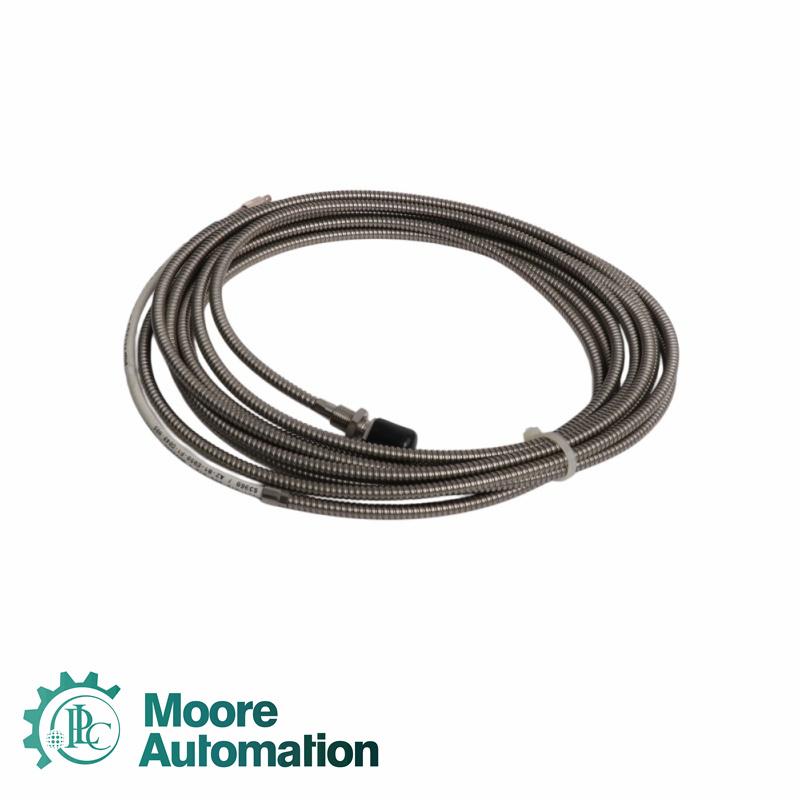

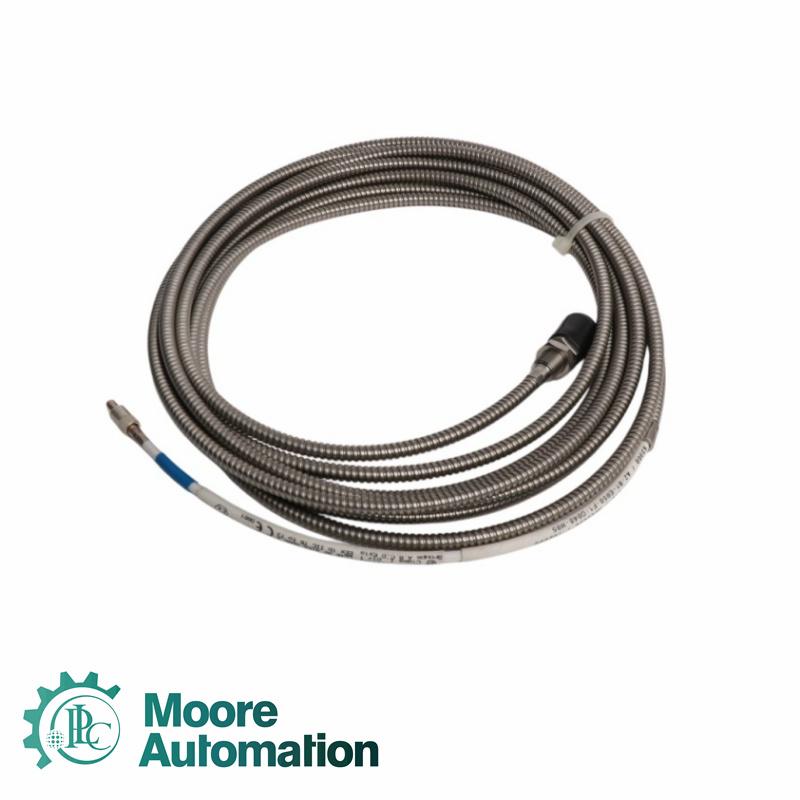

Vibro Meter TQ402 111-402-000-013 Proximity Transducer

1

Sale Manager----John Yang

Email: sales3@askplc.com

Mobile(WhatsApp):  86-18150117685

2

The system is based around a TQ402 or TQ412 non-contact sensor and an IQS900 signal conditioner. Together, these form a calibrated proximity measurement system in which each component is interchangeable. The system outputs a voltage or a current proportional to the distance between the transducer tip and the target, such as a machine shaft. The active part of the transducer is a coil of wire that is moulded inside the tip of the device, made of Torlon® (polyamide-imide). The transducer body is made of stainless steel. The target material must, in all cases, be metallic. The transducer body is available with metric or imperial thread. The TQ412 version is intended for reverse-mount applications. Both the TQ402 and TQ412 have an integral coaxial cable, terminated with a self-locking miniature coaxial connector. Various cable lengths (integral and extension) can be ordered.

Ask John Yang（Email: sales3@askplc.com）for more infor of TQ402 111-402-000-013

3

Measuring Range:(Options: 2 mm or 4 mm)Accurate proximity measurements within the specified range
Sensitivity:(Options: 4mV/mor 8mV/m)Determines the system's ability to detect changes in proximity.
Temperature ranges: Transducer −40 to +180°C with drift <5% (operating), +180 to +220°C with drift >5% (short-term survival)
Temperature ranges: Transducer and cable −40 to +195°C if used in an Ex Zone
Temperature ranges: Cable, connector and optional protection −40 to +200°C
Protection rating: IP68 (transducer head and integral cable)
Vibration: 5 g peak between 10 and 500 Hz
Shock acceleration: 15 g peak (half sine-wave, 11 ms duration)
Transducer construction: Wire coil Ø8 mm, Torlon (polyamide-imide) tip, encapsulated in stainless steel body (AISI 316L) with high-temperature epoxy glue
Integral and extension cables: FEP covered 70 Ω coaxial cable, Ø3.6 mm
Connectors: Self-locking miniature coaxial connectors, hand-tightened until locked
Optional protection: Flexible stainless steel hose (protection tube), provides mechanical protection but not leak-tight
Optional protection: FEP sheath (extruded fluorinated ethylene propylene), chemical-resistant, low permeability to liquids, gases and moisture, flexible, low friction, mechanically tough

4

Is this product brand new?
Yes, Vibro Meter TQ402 111-402-000-013 is brand new, original, unused, and factory sealed

Do you have it in stock?
Yes, right now we have Vibro Meter TQ402 111-402-000-013 in stock ready for shipment, we can support video inspection.

What shipping methods are used for TQ402 111-402-000-013?
Major carriers like FedEx, DHL, and UPS are primarily used for worldwide delivery.

How are the TQ402 111-402-000-013 packaged?
TQ402 111-402-000-013 packaging generally involves multiple layers of protection to ensure safe transit.

Do you offer any discounts?
Yes! For discounts on TQ402 111-402-000-013, please contact John for the best offer.

5

→Single-source solution for all major automation brands

→Technical support from specification to installation

→Rapid response to urgent requirements

→Quality assurance on all components
