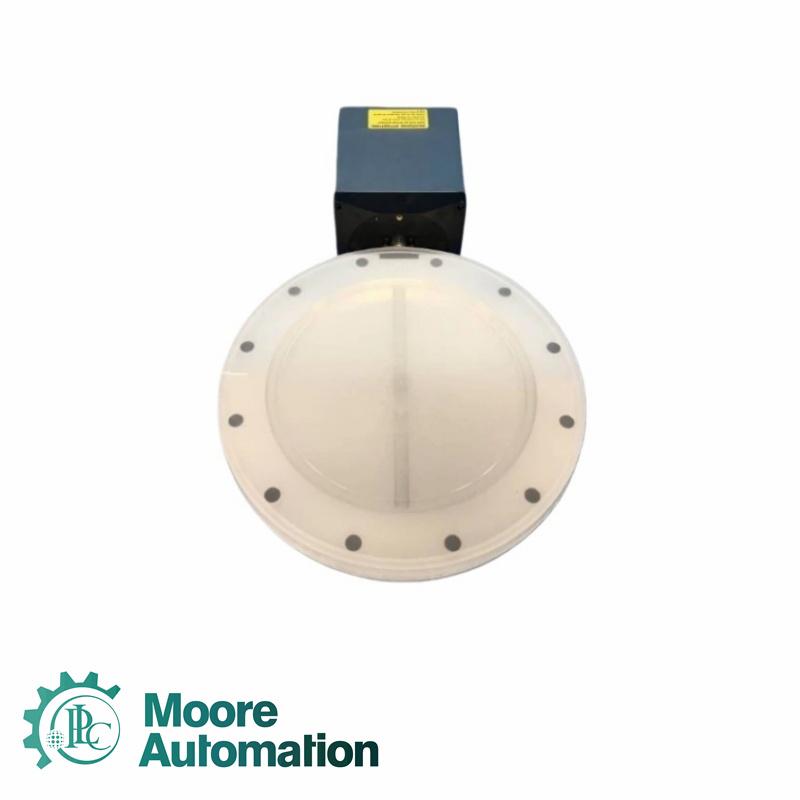

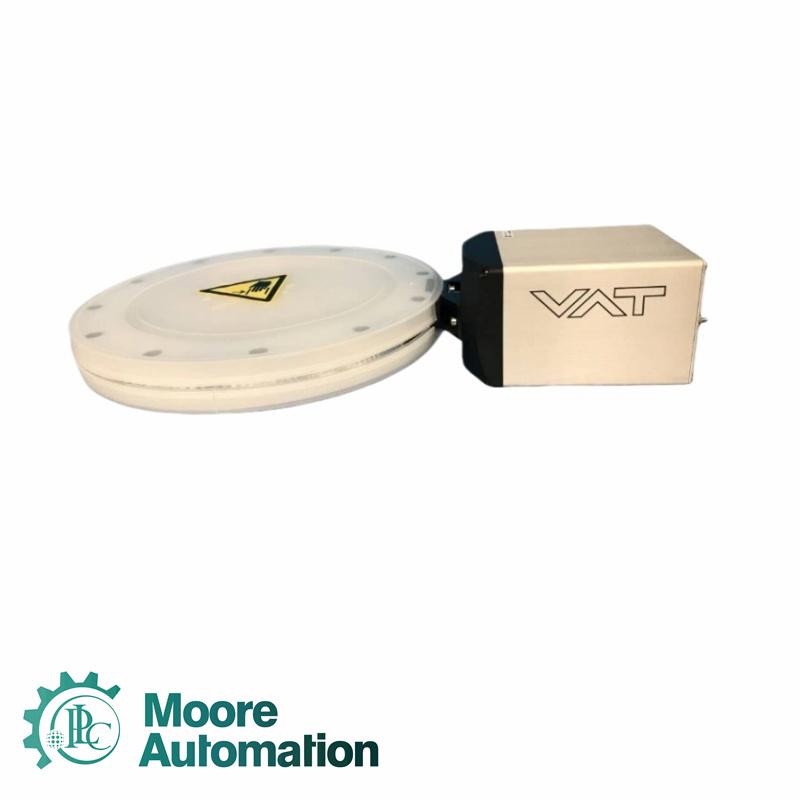

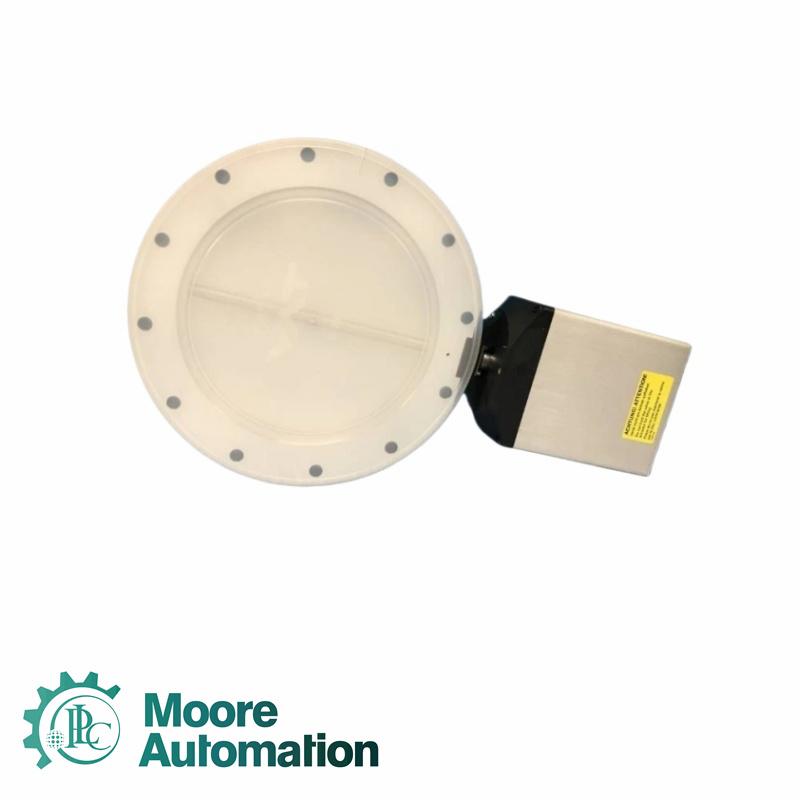

VAT 61246-PAGI-0001/0103 A-1174333 Butterfly control valve

1

Sale Manager----John Yang

Email: sales3@askplc.com

Mobile(WhatsApp):  86-18150117685

2

The plate acts as a throttling element and varies the conductance of the valve opening. The pressure
controller calculates the required plate position to achieve the setpoint pressure. See also principle
drawing in the glossary, chapter «Pressure closed-loop control». Actuation is performed by a stepper
motor. An encoder monitors the position. This principle ensures fast and accurate process pressure
control even in contaminating processes.

We hope to go beyond the usual ways to meet your needs, focusing on economic and efficient collaboration.

We are committed to building long-term partnerships to identify your common opportunities for cost savings.

Ask John Yang（Email: sales3@askplc.com）for more infor of VAT 61246-PAGI-0001/0103 A-1174333 Butterfly control valve

3

Sizes: DN 25 – 320 mm (1" – 12")
Actuator: integrated pressure controller with stepper motor
Body material: aluminum or stainless steel
Feedthrough: rotary feedthrough
Standard flanges: ISO-KF, ISO-F
Leak rate: Valve body < 1·10⁻⁹ mbar l/s
Pressure range: 1·10⁻⁸ mbar to 1.2 bar (abs)
Cycles until first service: 2 million
Valve body temperature: ≤ 150°C
Actuator ambient temperature: max. 50°C (≤ 35°C recommended)
Material valve body/plate aluminum: EN AW-6082 (3.2315)
Material valve body/plate stainless steel: AISI 316L (1.4404 or 1.4435)
Shaft material: AISI 316L (1.4404 or 1.4435)
Other parts material: iglidur®X, AISI 316L (1.4404 or 1.4435)
Seal feedthrough: FKM (e.g., Viton®)
Mounting position: any (shaft on pump side recommended)

4

What is the VAT 61246-PAGI-0001/0103 A-1174333?
It is a Butterfly control valve.


Is this product brand new?
Yes, VAT 61246-PAGI-0001/0103 A-1174333 is brand new, original, unused, and factory sealed


Do you have it in stock?
Yes, right now we have VAT 61246-PAGI-0001/0103 A-1174333 in stock ready for shipment, we can support video inspection.


Why can't I see a price for this VAT 61246-PAGI-0001/0103 A-1174333?
In addition to "new original" " units.
we also specialize in the selling "discontinued" and hard to find industrial automation parts which tend to have a fluctuating market value. These fluctuations may make it difficult for us to provide accurate daily prices for parts on our website. Therefore, in an effort to ensure that we always provide you with the best and most accurate price available, our team will source and price your part on an enquiry-by-enquiry basis.
