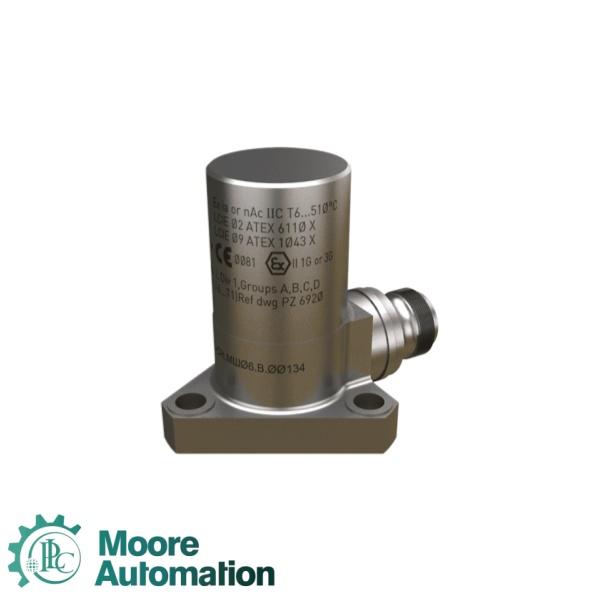

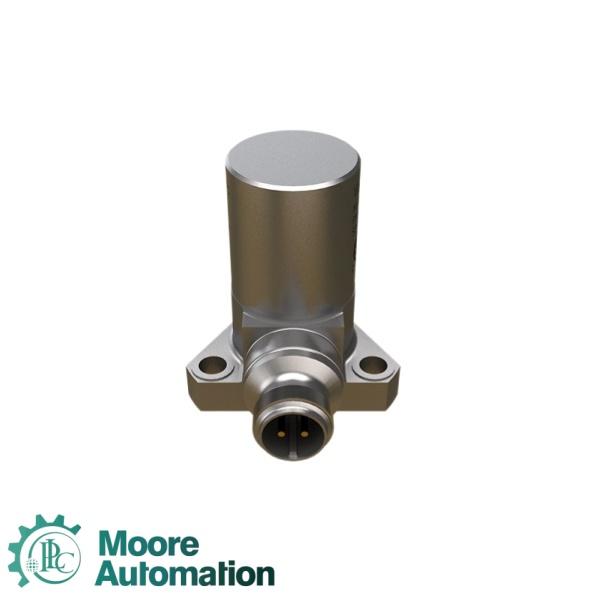

VIBRO METER CA134 144-134-000-612 piezoelectric accelerometer

│Contact us│

Sales manager: Yuki

Email: sales6@askplc.com

WhatsApp: +8617359287459

│Basic Information │

The Vibro-Meter CA134 144-134-000-612 is an industrial-grade, symmetrical piezoelectric accelerometer designed for the long-term monitoring of absolute vibration in the most severe industrial environments. Utilizing a stable VC2-type single crystal compression-mode measuring element encapsulated in a hermetically welded Inconel 600 nickel alloy housing, this model comes equipped with an integrated 2-pole mineral-insulated (MI) cable protected by a robust double braid. Operating strictly as a charge-output device, it outputs a low-level pC/g signal that isolates its internal circuitry from the sensor casing, requiring an external charge amplifier (such as the Vibro-Meter IPC707 signal conditioner) to translate its metrics into usable current or voltage signals. Its unique chemical resistance, explosive atmosphere certifications, and extreme thermal resilience allow it to operate reliably across a vast temperature envelope spanning from deep cryogenic states up to intense high-heat environments.

│Details│

Sensitivity (at 120 Hz, +23 °C): 10 pC/g ± 5%

Dynamic Range: 0.001 to 500 g peak

Frequency Response: 0.5 to 3,500 Hz (±5%); 3,500 to 6,000 Hz (<10%)

Resonant Frequency: > 14 kHz

Operating Temp Range: −54 °C to +500 °C (down to -253 °C for cryogenic versions)

Construction: Hermetically welded Inconel 600, 2-pole system, 2-pole MI cable

│Applications│

➟ Heavy-Duty Gas Turbine Monitoring: Serves as the primary casing vibration sensor on industrial gas turbines, tracking structural integrity under extreme heat and high mechanical stress.

➟ Steam Turbine Condition Monitoring: Measures continuous high-frequency vibration profiles on steam turbine bearing housings to detect rotor unbalance, misalignment, and structural looseness.

➟ Exhaust and Combustion Zone Sensing: Mounts directly onto exhaust casings, ducts, and hot-end machine components where proximity to high-temperature process gases destroys standard sensors.
