Product Brief

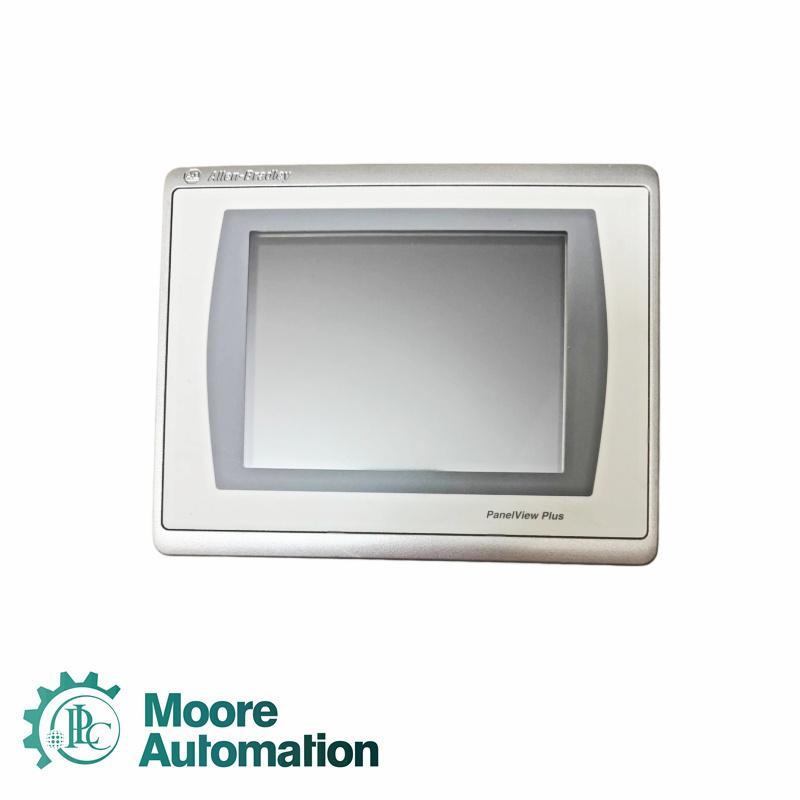

The PanelView Plus 7 Performance terminals are operator interface devices. They monitor and control devices that are attached to ControlLogix and CompactLogix 5370 controllers on an EtherNet/IP network. Animated graphic and text displays provide operators a view into the operating state of a machine or process. Operators interact with the control system by using touch screen or keypad input.
Main Parameters
|
Component Type |
Operator Panel |
|
Power Supply |
18–30 V DC |
|
Maximum Power Consumption |
50 W (DC) / 50 VA (AC) |
|
Operator Input Method |
Touch Screen |
|
Display Size |
6.5 inches |
|
Display Technology |
TFT (Thin Film Transistor) |
|
Display Resolution |
640 × 480 pixels |
|
Display Colors |
262K |
|
Display Brightness |
300 cd/m² |
|
Display Backlight |
LED |
|
Backlight Life |
50,000 hours |
|
Touch Screen Type |
Resistive |
|
Operating Force (Touch Screen) |
0.98 N |
|
Real-Time Clock |
Integrated |
|
Battery Type |
Lithium |
|
Battery Service Life |
4 years |
|
Installed RAM |
1 GB |
|
Non-Volatile Memory |
512 MB |
|
Memory Card Slot |
1 × SD/MMC |
|
USB Interfaces |
2 × USB Host, 1 × USB Device |
|
Ethernet Interfaces |
2 × 10/100 Mbps RJ-45 |
|
Communication Protocols |
EtherNet/IP, EtherNet/OCPP |
|
Dimensions (W × H × D) |
212 × 170 × 69.6 mm |
|
Weight |
1.2 kg |
|
Front Protection Rating |
IP66 |
What Moore can do for you?
1.100% original product, 100% quality assurance and the more competitive price.
We send you a new product asking zero cent!
2.Thoughful service
Professional after-sales service.
3.Quick Shipping
We have large quantities of inventories, can ship immediately.
FAQ
Q: What display technology does the 2711P-T7C22D9P touchscreen use?
A: It uses TFT (Thin-Film Transistor) display technology.
Q: What is the display resolution of the 2711P-T7C22D9P?
A: It features a display resolution of 640 × 480 pixels.
Q: What DC power supply voltage is required for the 2711P-T7C22D9P to operate normally?
A: It requires an 18–30 V DC power supply.
Q: What is the service life of the built-in lithium battery in the 2711P-T7C22D9P?
A: The built-in lithium battery typically has a service life of 4 years.
Q: How many RJ-45 Ethernet ports does the 2711P-T7C22D9P have?
A: It is equipped with 2 RJ-45 Ethernet ports.
Application
Automotive Manufacturing: Assembly lines and robotic workstations.
Food Processing: Mixing, packaging, and sterilization equipment.
Pharmaceutical: Cleanroom recipe management and process control.
Chemical Processing: Reactor monitoring and process visualization.
Water Treatment: Pump stations, valves, and filtration system control.
|
