SIEMENS C98043-A7005-L1/6RY1704-0AA00 Operator Panel

hot selling

1 year warranty

Best choice and best discounts

Email me:sales6@askplc.com

Order(MOQ):
1
Payment:
T/T
Product Origin:
GERMANY
Color:
Brand New
Shipping Port:
Xiamen
Product Origin:
GERMANY
Lead Time:
3-5 days

Product Detail

Quick contact

Sales Manager: Yuki Huang

Email: sales6@askplc.com

Whatsapp: +86 17359287459

Product information

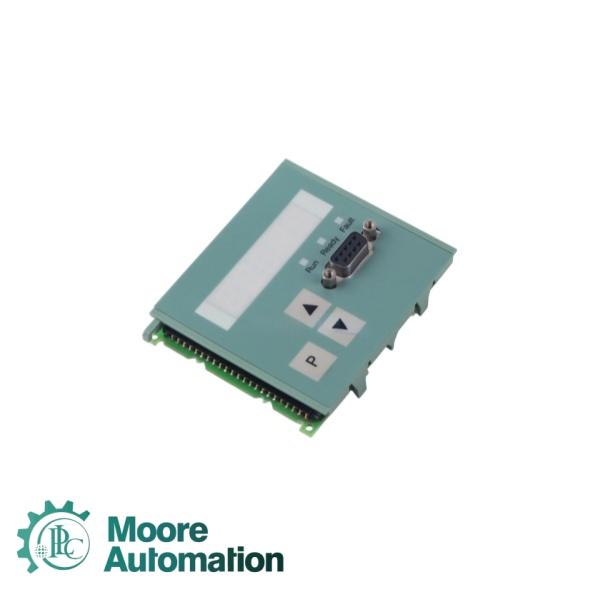

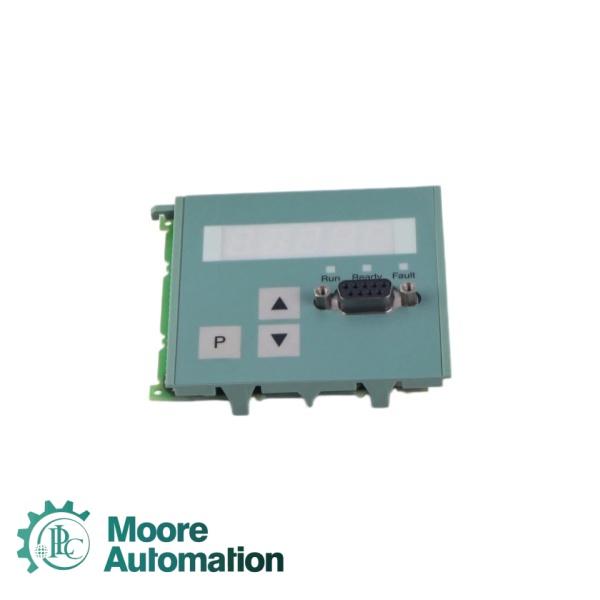

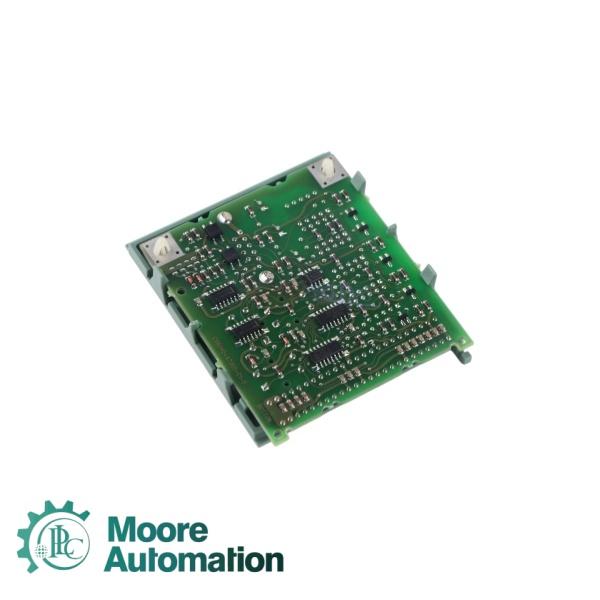

The Siemens C98043-A7005-L1/6RY1704-0AA00 is an integrated, microprocessor-driven parameterization and operator interface panel designed exclusively as a spare part for the SIMOREG DC Master 6RA70 digital chassis converter series. Mounted directly on the front fascia of the drive unit, this panel serves as the primary human-machine interface (HMI) for local operators. It features a built-in 5-digit LED segment display accompanied by three system status LEDs and a dedicated tactile keypad matrix, allowing technicians to configure over a thousand drive parameters, initialize auto-tuning routines, and perform comprehensive real-time diagnostics. Furthermore, the panel houses vital communication routing infrastructure, including the native G-SST1 serial interface and an RJ45/USS port (X300), which bridges the internal CUD1 control electronics board to external processing systems, standard engineering PCs, or premium handheld OP1S text-display terminals.

Internal Electronic Supply Voltage:	+5 VDC (±5%) logic supply routed via the CUD1 control board ribbon interface
Operating Input Current Draw:	Typ. 90 mA to 150 mA max
Display Specifications:	5-digit, 7-segment red LED array for parameter code and data visualization
Status Indicators:	3 integrated LEDs representing the active converter operational states
Input Interface:	4-key tactile dome membrane keypad
Operating Ambient Temperature:	0 °C to +55 °C during closed-cabinet operation
Storage Temperature:	-25 °C to +70 °C
Relative Environmental Humidity:	5% to 95% maximum moisture saturation, strictly non-condensing

Service and Warranty

Work time: 8am-24pm Online Service

Pakage: (original) Packing is factory seal

Delivery: By sea,by air or by express

Warranty: 12 months Warranty

FAQ

Q1: What are Siemens' primary business areas and fields of operation?

A: Siemens is a leading technology company focused on four core business areas: industry (digital industry and automation), infrastructure (intelligent infrastructure and smart buildings), mobility (rail transport solutions), and healthcare (through Siemens Healthineers, a separately publicly listed company majority-owned by Siemens) .

Q2: What are Siemens' proprietary technologies in power electronics and grid protection?

A: Siemens has developed advanced power electronics including an optimized clocked buck-boost converter with dual switch elements and a regulating unit that generates separate control signals for buck and boost modes, enabling efficient input-to-output voltage conversion. For grid protection, Siemens has pioneered an optimized protection system using grid-protection units (GPUs) that detect fault signals and disconnect power lines or generation units, combined with inverter-based resource supervisory controllers (IBR SC) that are co-optimized through a protection system co-optimizer to maximize dependability, security, and operation speed during grid faults. The company also offers dynamic isolators that monitor voltage differences across busbars and automatically connect or disconnect electrical groups based on real-time conditions.

Q3: How does Siemens implement diagnostic fault handling in SIMATIC PLC systems through organization blocks?

A: Siemens SIMATIC PLCs (S7-300/400/1500) use dedicated fault organization blocks for real-time system diagnostics: OB82 handles diagnostic interrupts (e.g., wire break detection on I/O modules), OB83 manages module insertion/removal interrupts (for PROFINET IO devices), and OB86 processes rack or PROFINET station failures. These blocks contain 20 bytes of temporary variables including OB82_MDL_ADDR , OB82_MDL_TYPE , and OB82_DATE_TIME for timestamping, allowing engineers to write diagnostic routines that capture fault details and safely condition outputs to prevent hazardous states during maintenance .
