SIEMENS 6ES7241-1CH30-1XB0 Communication Board

Contact : Yuki

☆Email: sales6@askplc.com

☆Whatsapp: +86 17359287459

Product Details

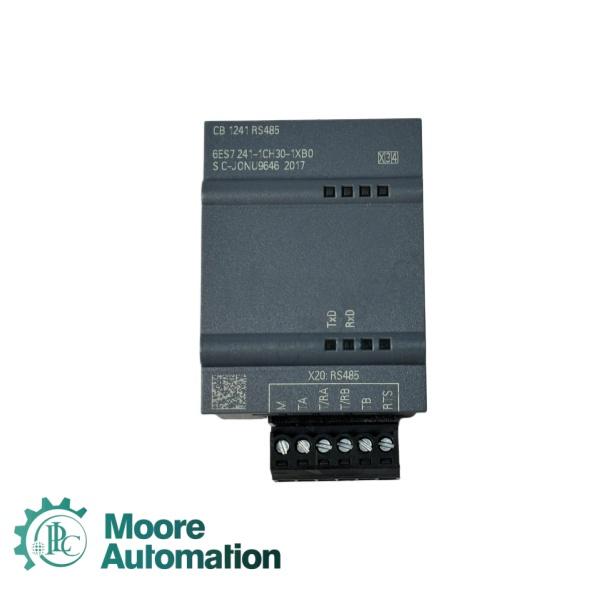

➪The Siemens 6ES7241-1CH30-1XB0, also known as the CB 1241 RS485, is a communication board designed for the SIMATIC S7-1200 series of programmable logic controllers (PLCs).

➪Input current from backplane bus (5 V DC): 50 mA (typical)

➪Power loss: 1.5 W (typical)

➪Ambient temperature (operation, horizontal): -20 °C to 60 °C

➪Ambient temperature (operation, vertical): -20 °C to 50 °C

➪Ambient temperature (storage/transport): -40 °C to 70 °C

➪Relative humidity (operation): 95% at 25 °C, without condensation

Features

·No additional cabinet space required – the installation dimensions of the CPU remain unchanged.

·Direct electrical and mechanical connection to the CPU via the front-side holder.

·Removable terminals – supports "permanent wiring" for easy board replacement.

FAQ

✭Q: What are Siemens' primary business areas and fields of operation?

A: Siemens is a leading technology company focused on four core business areas: industry (digital industry and automation), infrastructure (intelligent infrastructure and smart buildings), mobility (rail transport solutions), and healthcare (through Siemens Healthineers, a separately publicly listed company majority-owned by Siemens) .

✭Q: What are Siemens' proprietary technologies in power electronics and grid protection?

A: Siemens has developed advanced power electronics including an optimized clocked buck-boost converter with dual switch elements and a regulating unit that generates separate control signals for buck and boost modes, enabling efficient input-to-output voltage conversion. For grid protection, Siemens has pioneered an optimized protection system using grid-protection units (GPUs) that detect fault signals and disconnect power lines or generation units, combined with inverter-based resource supervisory controllers (IBR SC) that are co-optimized through a protection system co-optimizer to maximize dependability, security, and operation speed during grid faults. The company also offers dynamic isolators that monitor voltage differences across busbars and automatically connect or disconnect electrical groups based on real-time conditions.

✭Q: How does Siemens implement diagnostic fault handling in SIMATIC PLC systems through organization blocks?

A: Siemens SIMATIC PLCs (S7-300/400/1500) use dedicated fault organization blocks for real-time system diagnostics: OB82 handles diagnostic interrupts (e.g., wire break detection on I/O modules), OB83 manages module insertion/removal interrupts (for PROFINET IO devices), and OB86 processes rack or PROFINET station failures. These blocks contain 20 bytes of temporary variables including OB82_MDL_ADDR , OB82_MDL_TYPE , and OB82_DATE_TIME for timestamping, allowing engineers to write diagnostic routines that capture fault details and safely condition outputs to prevent hazardous states during maintenance .
