SIEMENS 6SL3210-1PE31-8AL0 Industrial automation components

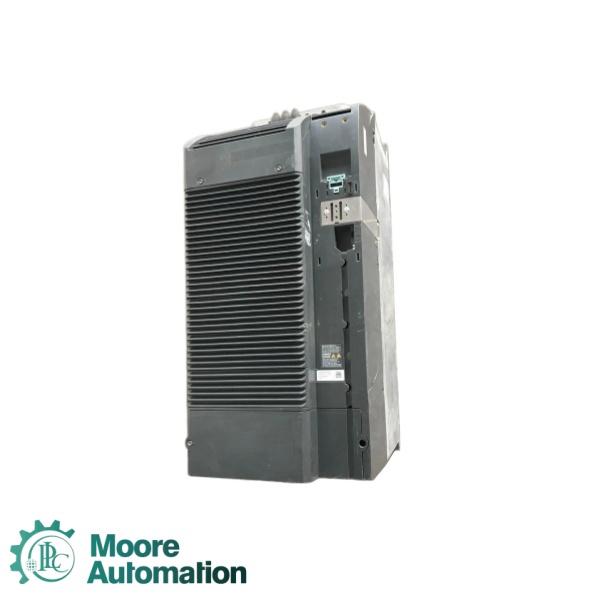

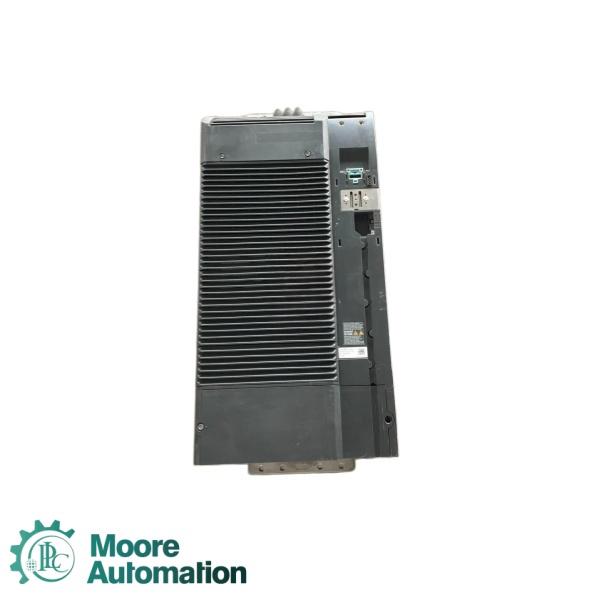

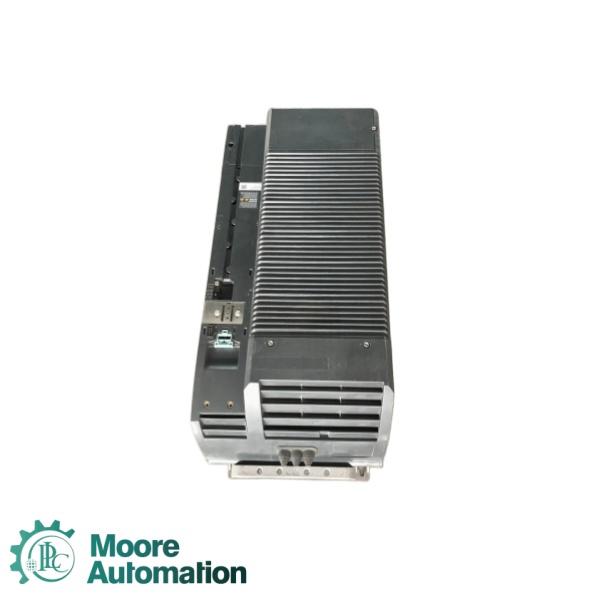

The Siemens 6SL3210-1PE31-8AL0 is a high-performance SINAMICS PM240-2 Power Module engineered for the SINAMICS G120 variable frequency drive (VFD) platform. Operating as an air-cooled, frame size F (FSF) industrial hardware unit, it features an integrated Class A line filter and a built-in braking chopper. Designed without a built-in control unit or panel, it pairs with external Siemens intelligence modules to perform heavy-duty motor control. The module translates incoming 3-phase alternating current into variable-frequency output to smoothly adjust the speed, torque, and acceleration of high-power industrial induction motors, helping reduce energy consumption and mechanical wear on large pumps, fans, and conveyor systems.

Line voltage: 380 ...480 V ±10 %

Line frequency: 47 ...63 Hz

Rated current (LO): 172.00 A

Rated current (HO): 154.00 A

Pulse frequency: 2 kHz

Output frequency for vector control: 0 ...200 Hz

Output frequency for V/f control: 0 ...550 Hz

Q1: What are Siemens' primary business areas and fields of operation?

A1: Siemens is a leading technology company focused on four core business areas: industry (digital industry and automation), infrastructure (intelligent infrastructure and smart buildings), mobility (rail transport solutions), and healthcare (through Siemens Healthineers, a separately publicly listed company majority-owned by Siemens) .

Q2: What are Siemens' proprietary technologies in power electronics and grid protection?

A2: Siemens has developed advanced power electronics including an optimized clocked buck-boost converter with dual switch elements and a regulating unit that generates separate control signals for buck and boost modes, enabling efficient input-to-output voltage conversion. For grid protection, Siemens has pioneered an optimized protection system using grid-protection units (GPUs) that detect fault signals and disconnect power lines or generation units, combined with inverter-based resource supervisory controllers (IBR SC) that are co-optimized through a protection system co-optimizer to maximize dependability, security, and operation speed during grid faults. The company also offers dynamic isolators that monitor voltage differences across busbars and automatically connect or disconnect electrical groups based on real-time conditions.

Q3: How does Siemens implement diagnostic fault handling in SIMATIC PLC systems through organization blocks?

A3: Siemens SIMATIC PLCs (S7-300/400/1500) use dedicated fault organization blocks for real-time system diagnostics: OB82 handles diagnostic interrupts (e.g., wire break detection on I/O modules), OB83 manages module insertion/removal interrupts, and OB86 processes rack or PROFINET station failures. These blocks contain 20 bytes of temporary variables including OB82_MDL_ADDR, OB82_MDL_TYPE, and OB82_DATE_TIME for timestamping, allowing engineers to write diagnostic routines that capture fault details and safely condition outputs to prevent hazardous states during maintenance .
