Product Brief

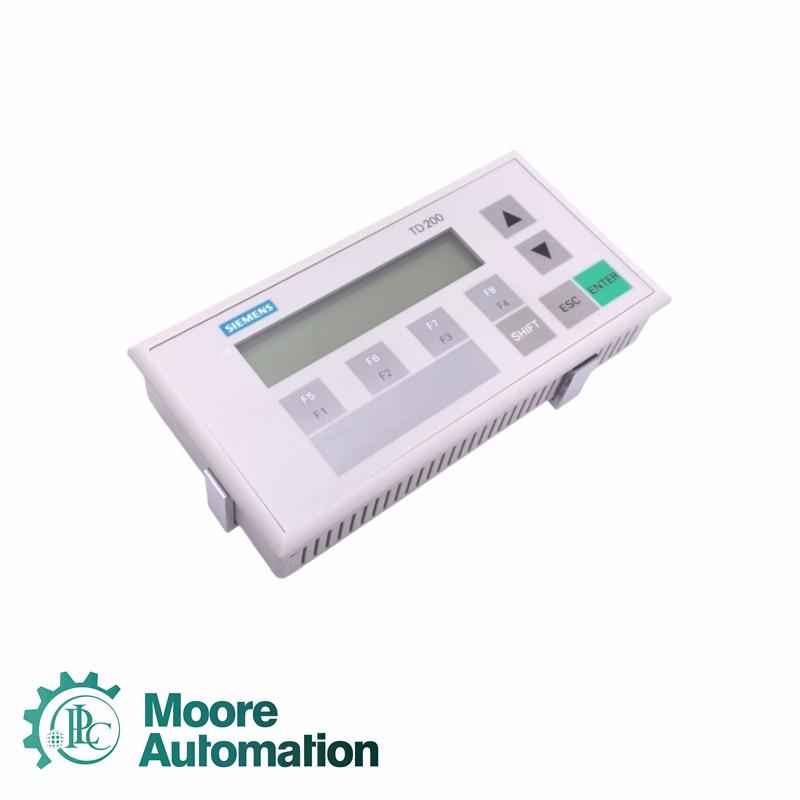

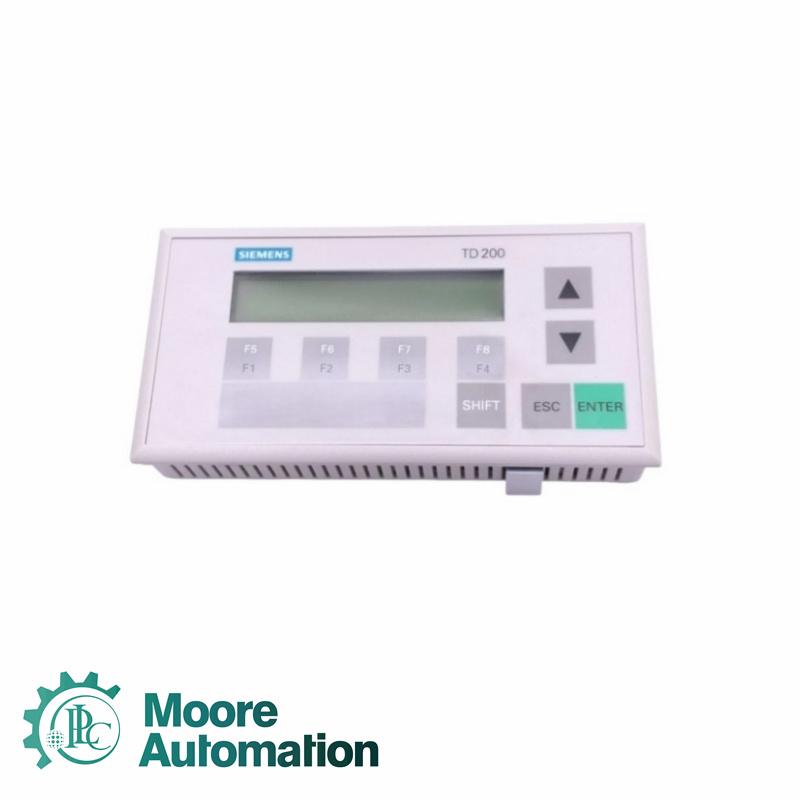

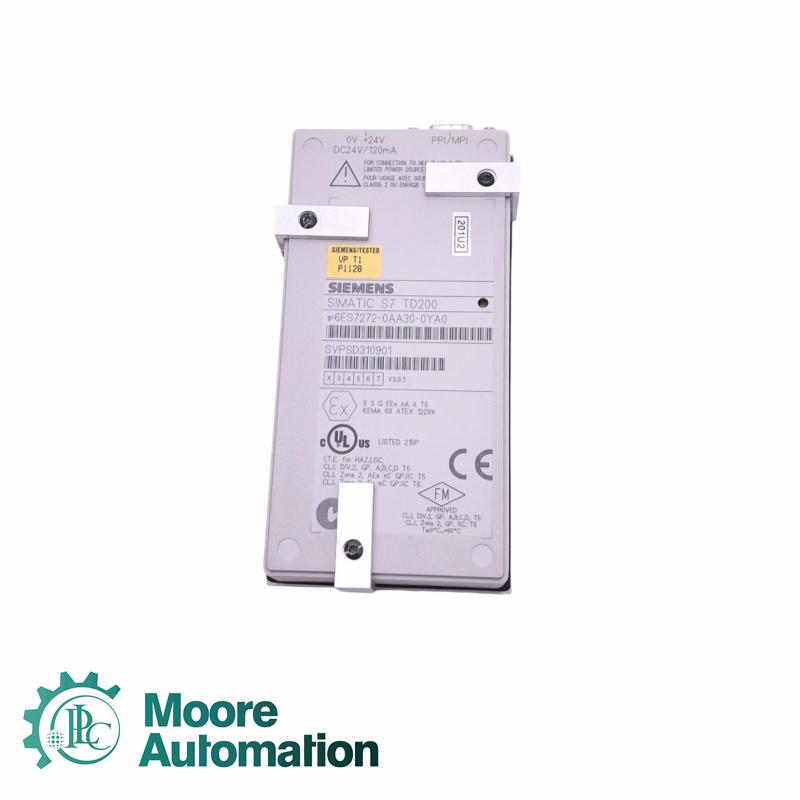

The 6ES7272-0AA30-0YA0 is a TD 200 text display specifically designed for Siemens SIMATIC S7-200 series PLCs. It is a low-cost, functional human-machine interface (HMI) primarily used to display the PLC system's operating status, fault alarm information, and to modify control parameters (such as setpoints, motor switching, etc.).
Main Parameters
|
Size |
14.8x7.6x2.7cm |
|
Display Lines |
2 |
|
Characters per Line |
20 |
|
Character Size |
5 mm |
|
Display Type |
Backlit LCD |
|
Rated Voltage |
24 VDC |
|
Input Current |
120 mA @ 24 VDC |
|
Communication Interface |
Point-to-Point Interface (PPI) |
|
Maximum Transmission Rate |
187.5 kbit/s |
|
Maximum Number of Nodes |
126 |
|
Protection Rating |
IP65 |
|
Operating Temperature |
0°C to +60°C |
|
Storage / Transport Temperature |
-40°C to +70°C |
|
Panel / Cabinet Thickness |
0.3 to 4 mm (recommended 0.3 mm) |
|
Weight |
Approximately 250 g |
What Moore can do for you?
1.100% original product, 100% quality assurance and the more competitive price.
We send you a new product asking zero cent!
2.Thoughful service
Professional after-sales service.
3.Quick Shipping
We have large quantities of inventories, can ship immediately.
FAQ
Q: How many characters per line can the display of 6ES7272-0AA30-0YA0 show at maximum?
A: The display can show up to 20 characters per line.
Q: What is the maximum transmission rate of the PPI communication interface of 6ES7272-0AA30-0YA0?
A: The maximum transmission rate is 187.5 kbit/s.
Q: What is the maximum number of nodes allowed in a network using 6ES7272-0AA30-0YA0?
A: The network supports up to 126 nodes.
Q: What IP protection rating does the front panel of 6ES7272-0AA30-0YA0 have?
A: The front panel has an IP65 protection rating.
Q: What is the allowed panel thickness range for installing 6ES7272-0AA30-0YA0?
A: The installation panel thickness range is 0.3 to 4 mm.
Application
Machinery plants: configure operating parameters for automated machines and CNC equipment
Food plants: display the status of filling lines and mixing machines
Packaging plants: operate control interfaces for packing, sealing, and labeling machines
Pharmaceutical plants: monitor process data for mixing reactors and packaging lines
Electrical control plants: assemble operator panels for low-voltage switchboards and pump control cabinets
|
