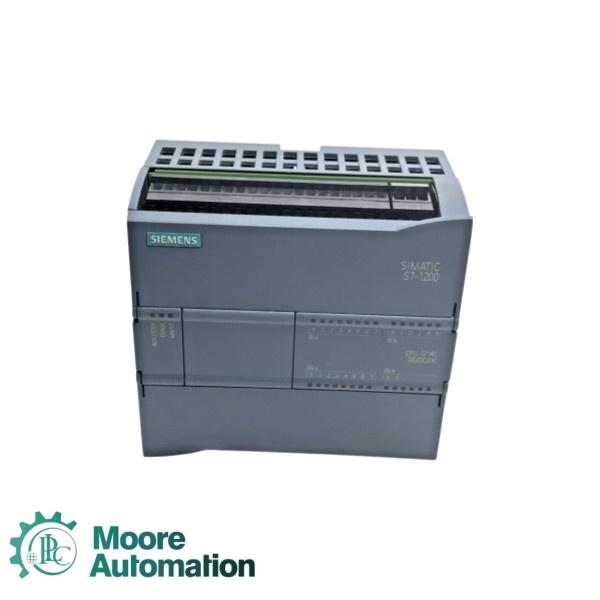

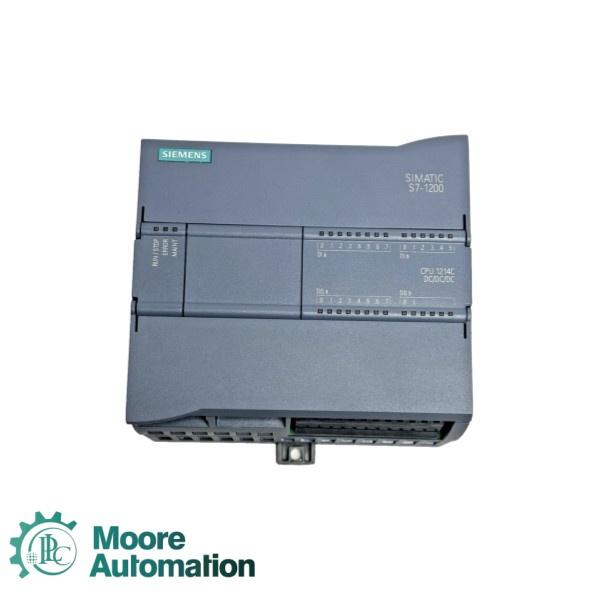

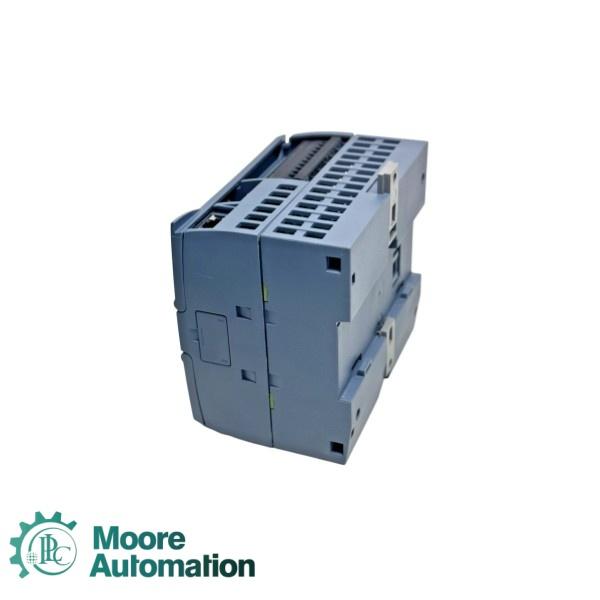

SIEMENS 6ES7214-1AG40-0XB0 VERSION 4.2 CPU

The Siemens 6ES7214-1AG40-0XB0 VERSION 4.2 is a compact programmable logic controller (PLC) main processor unit designed to act as the primary intelligence hub for industrial automation arrays. Operating under firmware profile Version 4.2, this advanced unit combines logic processing, localized memory blocks, and built-in interface ports within a singular modular chassis. Its completely solid-state DC/DC/DC topology dictates that the CPU power supply, the integrated digital inputs, and the high-speed transistor outputs all function entirely on 24-volt direct current loops. Outfitted with an embedded PROFINET communication node, it processes intricate automation loops, coordinates distributed fieldbus configurations, and delivers high-performance control without requiring external communications processors.

Supply Voltage: 24 V DC

Current Consumption (Rated Value): 500 mA

Current Consumption (Max Load): 1,500 mA

Inrush Current Peak: 12 A at 28.8 V DC

Power Loss: 12 W

Onboard Integrated Inputs: 14 x Digital Inputs

Onboard Integrated Outputs: 10 x Digital Transistor Outputs

Work Memory (Integrated): 100 KB

Load Memory (Integrated): 4 MB

Ambient Operating Temperature (Horizontal Rail): -20 °C to +60 °C

Ambient Operating Temperature (Vertical Rail): -20 °C to +50 °C
