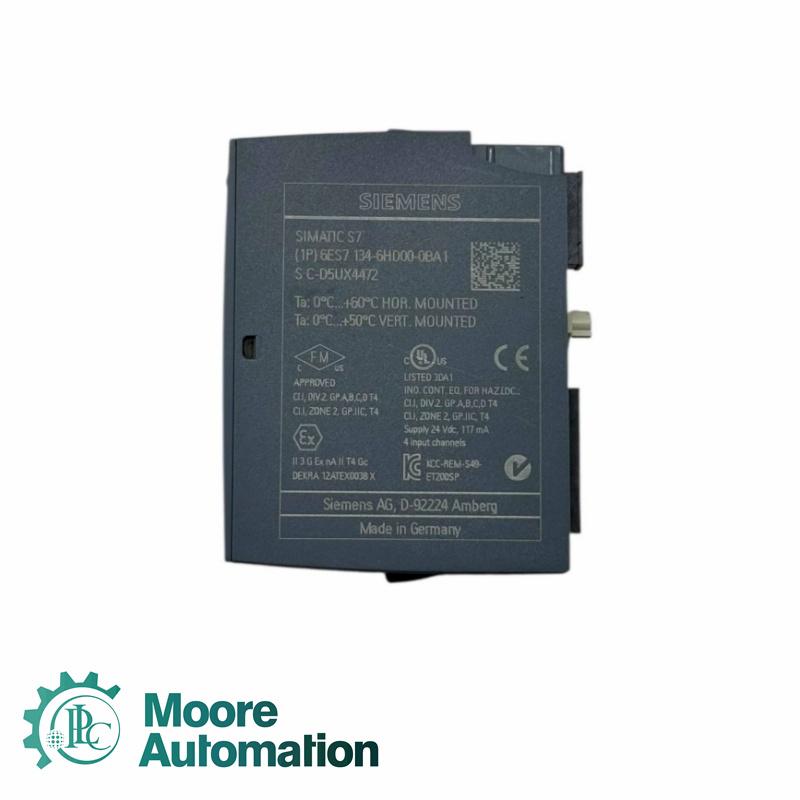

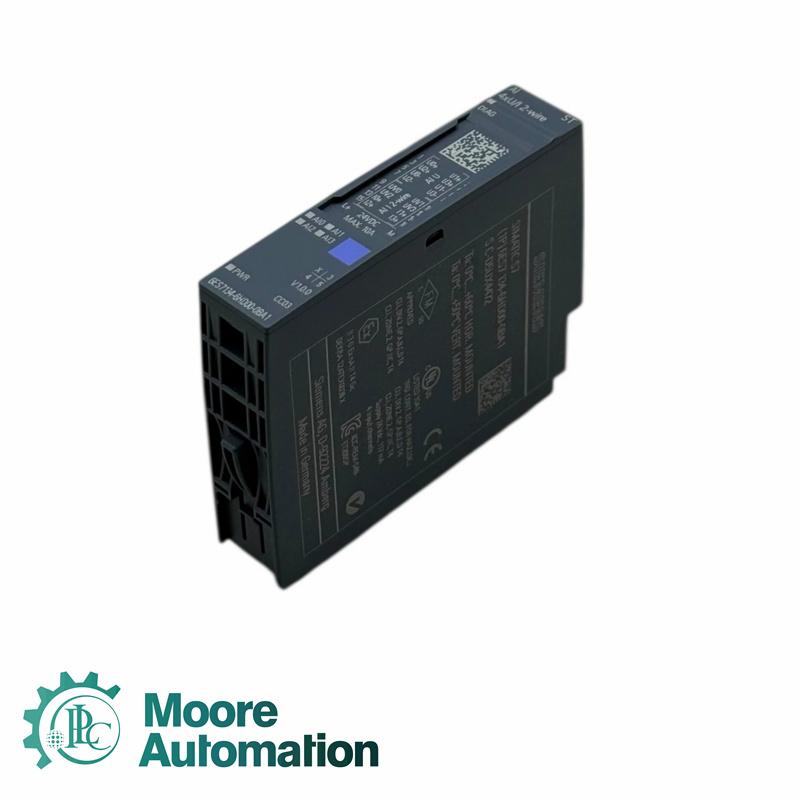

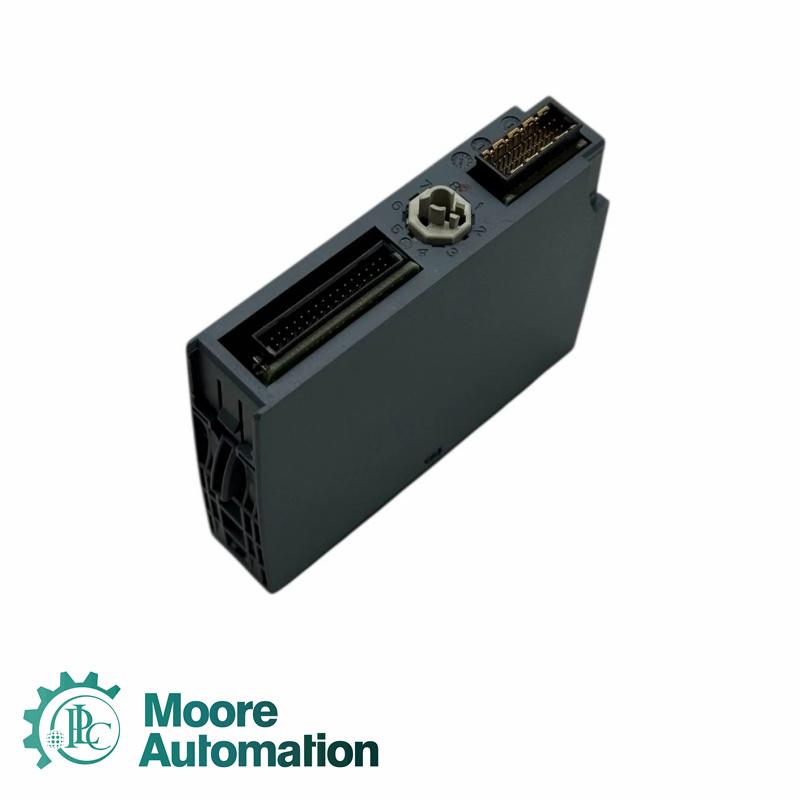

Siemens 6ES7134-6HD00-0BA1 Analog Input Module

Contact info

Email:sales3@askplc.com

Mobile:86-18150117685

Website:https://www.controldcs.com/

Manager:John Yang in moore automation

Item Overview

The Siemens 6ES7134-6HD00-0BA1 is a versatile analog input module designed for the SIMATIC ET 200SP system. This module features 4 universal inputs for voltage and current measurements, supporting 2-wire standard connections.

Performance Specifications

Usable BaseUnits:

BU type A0, A1

Color Code:

CC03

Rated Supply Voltage:

24 V DC

Voltage Range (Min):

19.2 V DC

Voltage Range (Max):

28.8 V DC

Reverse Polarity Protection:

Yes

Current Consumption (Max, no sensor supply):

37 mA

Number of Analog Inputs:

4

Max Input Voltage (Voltage Input, Destruction Limit):

30 V

Max Input Current (Current Input, Destruction Limit):

50 mA

Max Shielded Cable Length:

1000 m (200 m for voltage measurement)

Voltage Encoder Connection:

Yes

Current Encoder Connection (2-wire Transducer):

Yes

Max Burden of 2-Wire Transmitter:

650 Ω

Operational Limit Voltage (Overall Temp Range):

±0.5 %

Operational Limit Current (Overall Temp Range):

±0.5 %

Basic Error Limit Voltage (25°C):

±0.3 %

Basic Error Limit Current (25°C):

±0.3 %

Operating Temperature (Horizontal):

0°C to +60°C

Operating Temperature (Vertical):

0°C to +50°C

Width:

15 mm

Weight:

Approx. 31 g

Application Factory

Power and Energy Industry:

Distributed monitoring systems for power plants, substations, and renewable energy sites.

Oil and Chemical Bases:

Process control systems for oil refineries, fertilizer plants, and large-scale petrochemical production bases.

Water Treatment and Environmental Protection Facilities:

Automated control systems deployed in municipal wastewater treatment plants, water purification plants, and industrial wastewater treatment stations.

Manufacturing and Automated Production Lines:

Widely used in automobile assembly plants, food and beverage processing plants, pharmaceutical plants, and semiconductor packaging and testing lines.

Cement and Mining Industry:

Remote I/O stations for mines, cement clinker production lines, and large-scale material handling systems.

Infrastructure and Building Automation:

Environmental monitoring systems for large data centers, rail transit computer rooms, and intelligent buildings.

FAQ

Question

Answer

Q: What is the 6ES7134-6HD00-0BA1?

A: It is an Analog Input Module.

Q: What shipping methods are used for 6ES7134-6HD00-0BA1?

A: Major carriers like FedEx, DHL, and UPS are primarily used for worldwide delivery.

Q: How are the 6ES7134-6HD00-0BA1 packaged?

A: 6ES7134-6HD00-0BA1 packaging generally involves multiple layers of protection to ensure safe transit.

Q: How to Check Price and Availability for 6ES7134-6HD00-0BA1?

A: Please contact John Yang for sales at +86-18150117685 or request a quote.

Q: How long is the warranty period of 6ES7134-6HD00-0BA1?

A: We offer a standard one-year warranty for all new and original products.
