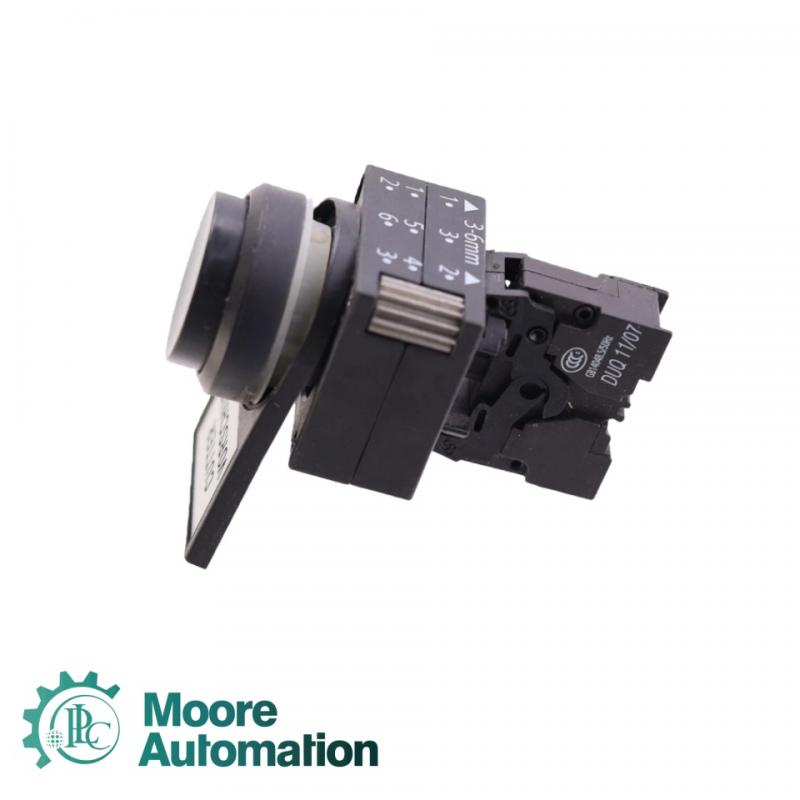

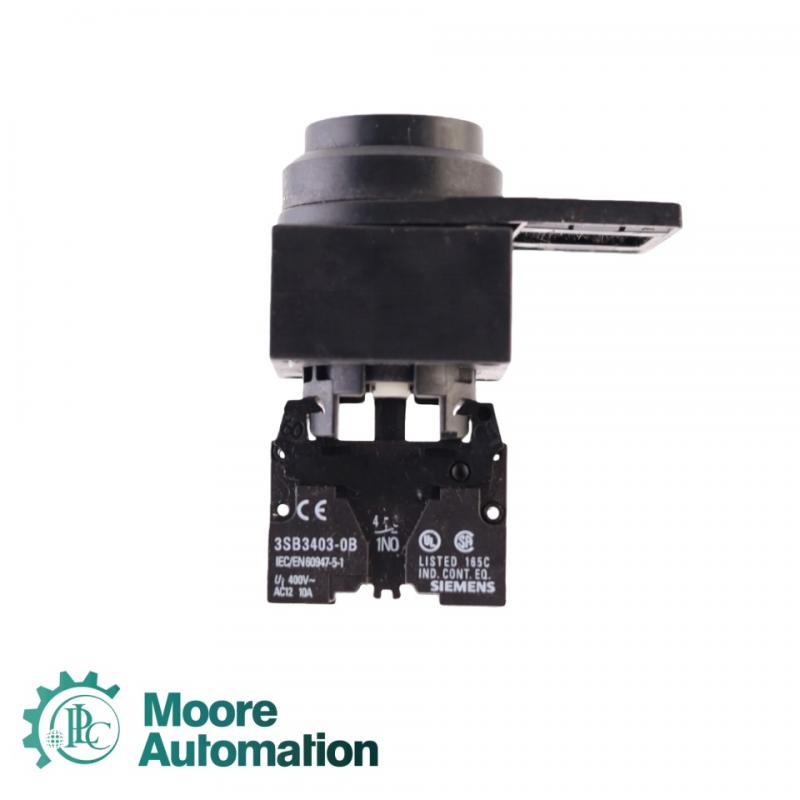

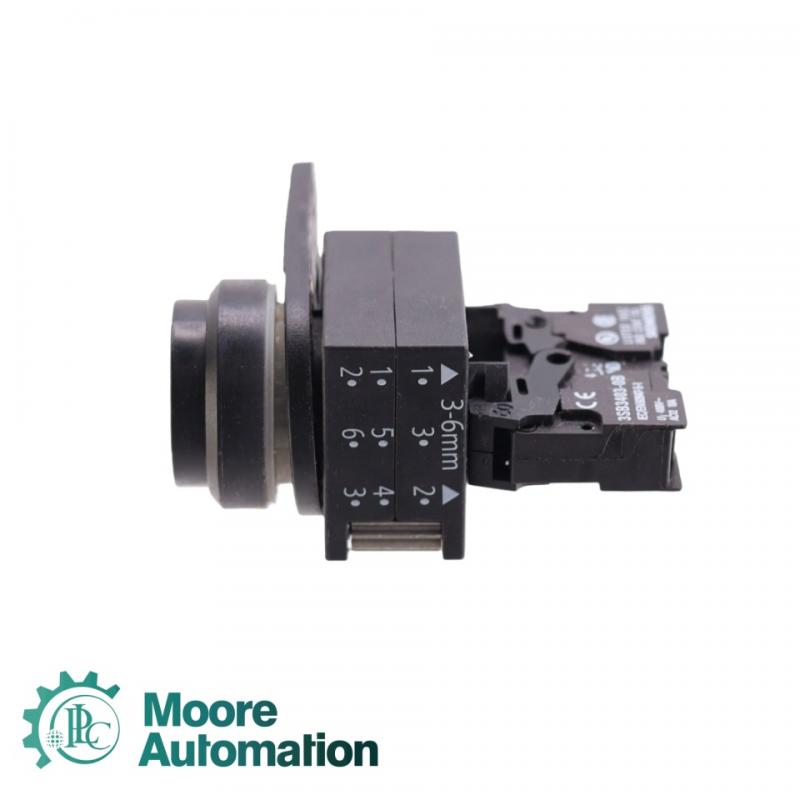

Siemens 3SB3403-0B Pushbutton Switch Auxiliary

Email: sales3@askplc.com

Mobile(Whats App): 86-18150117685

Product Name: 3SB3403-0B

Product Origin:Germany

Shipping Port: Xia men

Brand Name:Siemens

Payment: T/T

Delivery time: 1-3 days

Number of Lampholders: 0
Positive Opening Function: No
Product Component (Diode): No
Product Component (Lamp Transformer): No
Product Component (Light Source): No
Product Component (Series Resistor): No
Insulation Voltage (Rated Value): 400 V
Operating Voltage Type: AC/DC
Degree of Pollution: Class 3
Surge Voltage Resistance (Rated Value): 4 kV
Maximum Operating Frequency: 1000 1/h
Mechanical Service Life (Switching Cycles, Typical): 10,000,000
Electrical Endurance (Switching Cycles, with Contactors 3RT1015 to 3RT1026, Typical): 10,000,000
Thermal Current: 10 A
Protection Class (Enclosure): IP40
Protection Class (Terminal): IP20
Equipment Marking (acc. to DIN 40719 extended according to IEC 204-2 / IEC 750): S
Equipment Marking (acc. to DIN EN 61346-2): S
Equipment Marking (acc. to DIN EN 81346-2): S
Fuse Link Design (for Short-Circuit Protection of Auxiliary Switch, Type of Assignment 1 Required): gG / Dz 10 A
Operating Voltage (AC, 50 Hz, Rated Value): 5 ... 400 V
Operating Voltage (AC, 60 Hz, Rated Value): 5 ... 300 V
Operating Voltage (DC, Rated Value, Maximum): 230 V
Operating Voltage (DC, Rated Value, Minimum): 5 V
Operating Voltage 1 (AC, 50 Hz, Rated Value): 400 V
Operating Voltage 1 (AC, 60 Hz, Rated Value): 300 V
Operating Voltage 1 (DC, Rated Value): 24 V
Contact Reliability: 1 incorrect switching operation in 100 million switching operations (5 V, 1 mA)
Number of NC Contacts (for Auxiliary Contacts): 0
Number of NO Contacts (for Auxiliary Contacts): 1
Number of CO Contacts (for Auxiliary Contacts): 0
Operating Current (AC-12, 24 V, Rated Value): 10 A
Operating Current (AC-12, 48 V, Rated Value): 10 A
Operating Current (AC-12, 110 V, Rated Value): 10 A
Operating Current (AC-12, 230 V, Rated Value): 10 A
Operating Current (AC-12, 400 V, Rated Value): 10 A
Operating Current (AC-15, 230 V, Rated Value): 6 A
Operating Current (AC-15, 400 V, Rated Value): 3 A
Type of Electrical Connection: Spring-loaded terminals
Connectable Conductor Cross-section (Auxiliary Contacts, Solid): 2x (0.25 ... 1.5 mm²)
Connectable Conductor Cross-section (Auxiliary Contacts, Finely Stranded with Core End Processing): 2x (0.25 ... 0.75 mm²)
Connectable Conductor Cross-section (Auxiliary Contacts, Finely Stranded without Core End Processing): 2x (0.25 ... 1.5 mm²)
Connectable Conductor Cross-section (Auxiliary Contacts, AWG): 2x (24 ... 16)
Ambient Temperature (During Operation): -25 ... +70 °C
Ambient Temperature (During Storage): -25 ... +80 °C
Mounting Type: Front mounting
Height: 30 mm
Width: 10 mm
Depth: 21.2 mm
Certificates/Approvals: General Product Approval, Functional Safety/Safety of Machinery, Declaration of Conformity, CE, EG-Konf., SF, EAC

·Condition: Brand new and factory sealed.

·Warranty: 12-month manufacturer coverage.

·Packaging: Original packaging with secure cartons.

·Delivery Time: Ships within 3 business days after payment.
