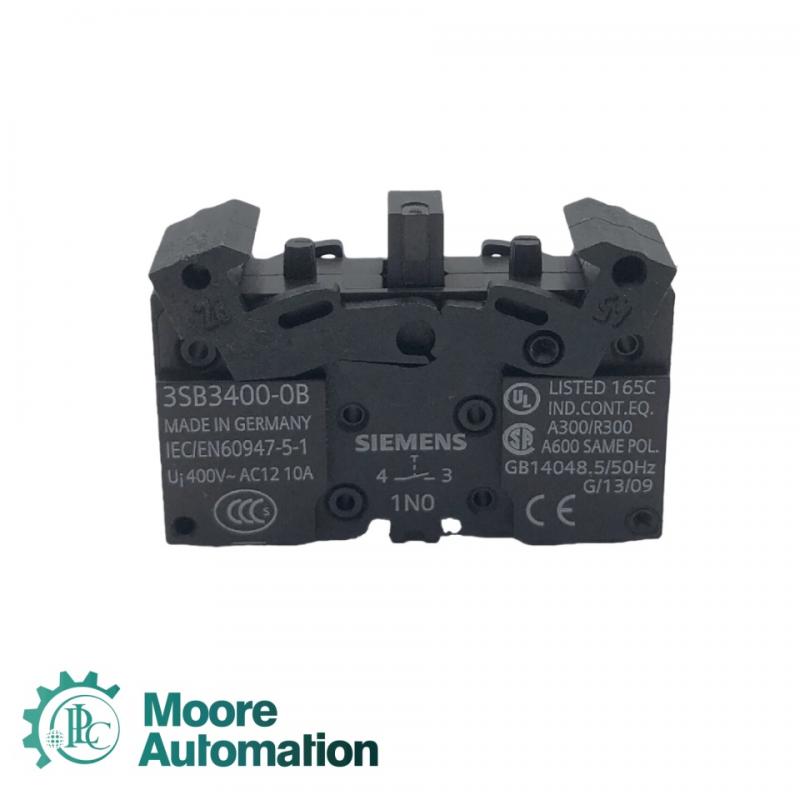

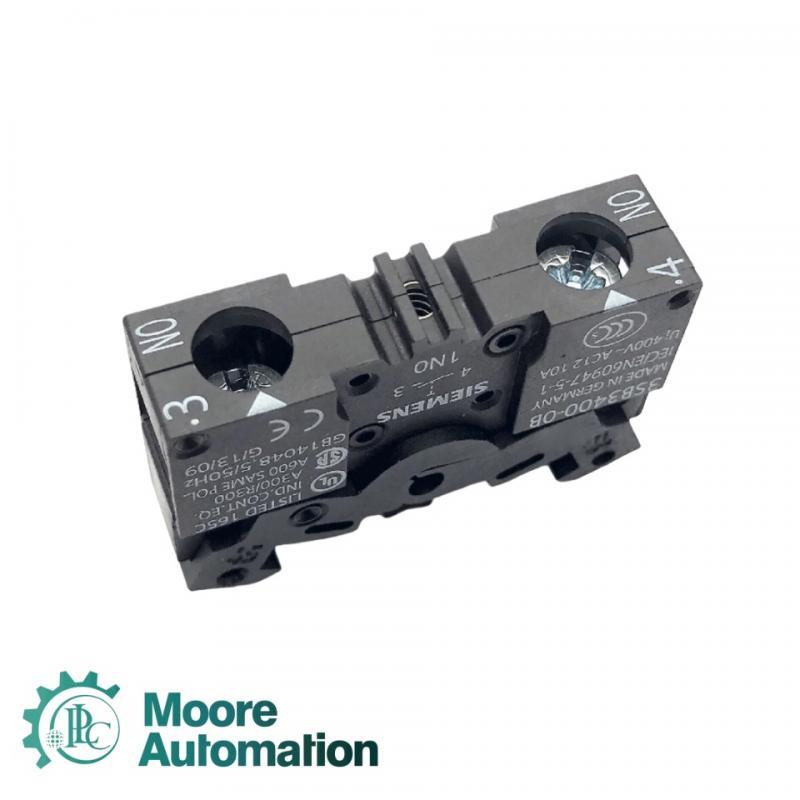

Siemens 3SB3400-0B Contact Block

Email: sales3@askplc.com

Mobile(Whats App): 86-18150117685

Product Name: 3SB3400-0B

Product Origin:Germany

Shipping Port: Xia men

Brand Name:Siemens

Payment: T/T

Delivery time: 1-3 days

Number of NC Contacts (for auxiliary contacts): 0
Number of NO Contacts (for auxiliary contacts): 1
Number of Change-over Switches (for auxiliary contacts): 0
Positive Opening Function: No
Number of Lampholders: 0
Electrical Connection Design: Screw-type terminals
Degree of Pollution: Class 3
Fuse Link Design (for short-circuit protection of auxiliary switch): gG / Dz 10 A
Contact Reliability: 1 incorrect switching operation in 100 million switching operations (5 V, 1 mA)
Thermal Current: 10 A
Type of Operating Voltage: AC/DC
Item Designation (according to DIN EN 61346-2): S
Item Designation (according to DIN 40719 extendable after IEC 204-2 / IEC 750): S
Operating Ambient Temperature: -25 … +70 °C
Storage Ambient Temperature: -25 … +80 °C
Protection Class (Terminal): IP20
Protection Class (Housing): IP40
Operating Voltage (AC, 50 Hz, rated value): 400 V
Operating Voltage (AC, 60 Hz, rated value): 300 V
Operating Voltage (DC, rated value): 24 V
Operating Voltage Range (AC, 50 Hz): 5 … 400 V
Operating Voltage Range (AC, 60 Hz): 5 … 300 V
Operating Voltage Range (DC): 5 … 230 V
Operating Current (AC-12, 24 V): 10 A
Operating Current (AC-12, 48 V): 10 A
Operating Current (AC-12, 110 V): 10 A
Operating Current (AC-12, 230 V): 10 A
Operating Current (AC-12, 400 V): 10 A
Operating Current (AC-15, 24 V): 6 A
Operating Current (AC-15, 48 V): 6 A
Operating Current (AC-15, 110 V): 6 A
Operating Current (AC-15, 230 V): 6 A
Operating Current (AC-15, 400 V): 3 A
Operating Current (DC-12, 24 V): 10 A
Operating Current (DC-12, 48 V): 5 A
Operating Current (DC-12, 110 V): 2.5 A
Operating Current (DC-12, 230 V): 1 A
Operating Current (DC-13, 24 V): 3 A
Operating Current (DC-13, 48 V): 1.5 A
Operating Current (DC-13, 110 V): 0.7 A
Operating Current (DC-13, 230 V): 0.3 A
Suitability for Integration (Pressure Selection Button): Yes
Suitability for Integration (Front Element): Yes
Suitability for Integration (Suspension Switch): Yes
Suitability for Integration (Suspension Pushbutton): Yes
Insulation Voltage (rated value): 400 V
Impulse Voltage Resistance (rated value): 4 kV
Tightening Torque (for auxiliary contacts with screw-type terminals): 0.8 N·m
Maximum Operating Cycles: 1,000 cycles/h
Typical Electrical Operating Cycles (with contactors 3RT1015 to 3RT1026): 10,000,000
Typical Mechanical Operating Cycles: 10,000,000
Product Component (Fluorescent Materials): No
Product Component (Diode): No
Product Component (Lamp Transformer): No
Product Component (Series Resistance): No
Type of Mounting: Front mounting
Connectable Conductor Cross-section (Auxiliary Contacts, Solid): 2x (1 ... 1.5 mm²)
Connectable Conductor Cross-section (Auxiliary Contacts, Solid with Conductor End Processing): 2x (0.5 ... 0.75 mm²)
Connectable Conductor Cross-section (Auxiliary Contacts, Finely Stranded with Conductor End Processing): 2x (0.5 ... 1.5 mm²)
Connectable Conductor Cross-section (Auxiliary Contacts, AWG): 2x (18 ... 14)

·Condition: Brand new and factory sealed.

·Warranty: 12-month manufacturer coverage.

·Packaging: Original packaging with secure cartons.

·Delivery Time: Ships within 3 business days after payment.
