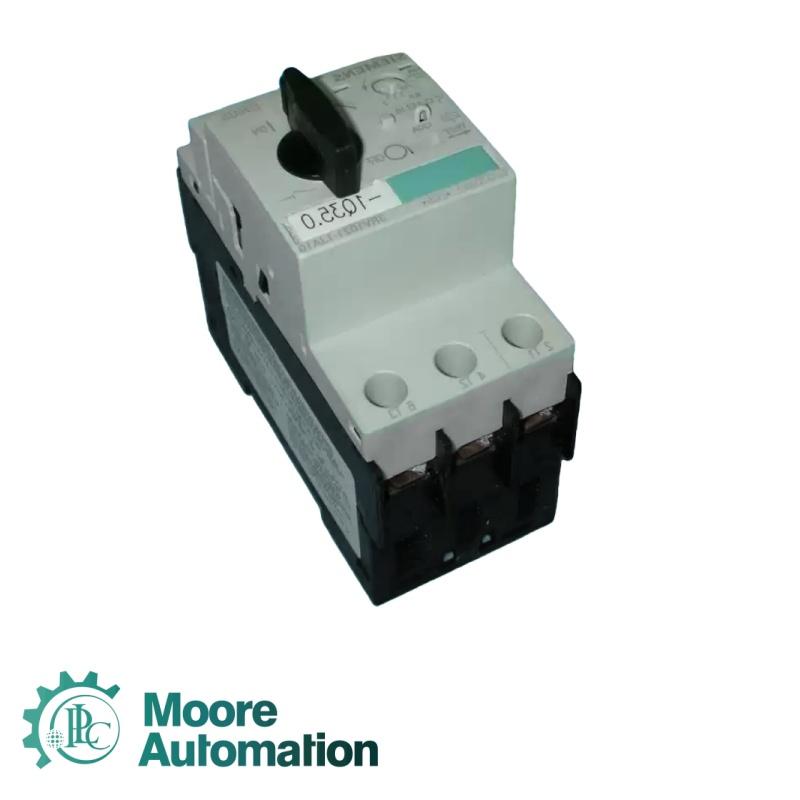

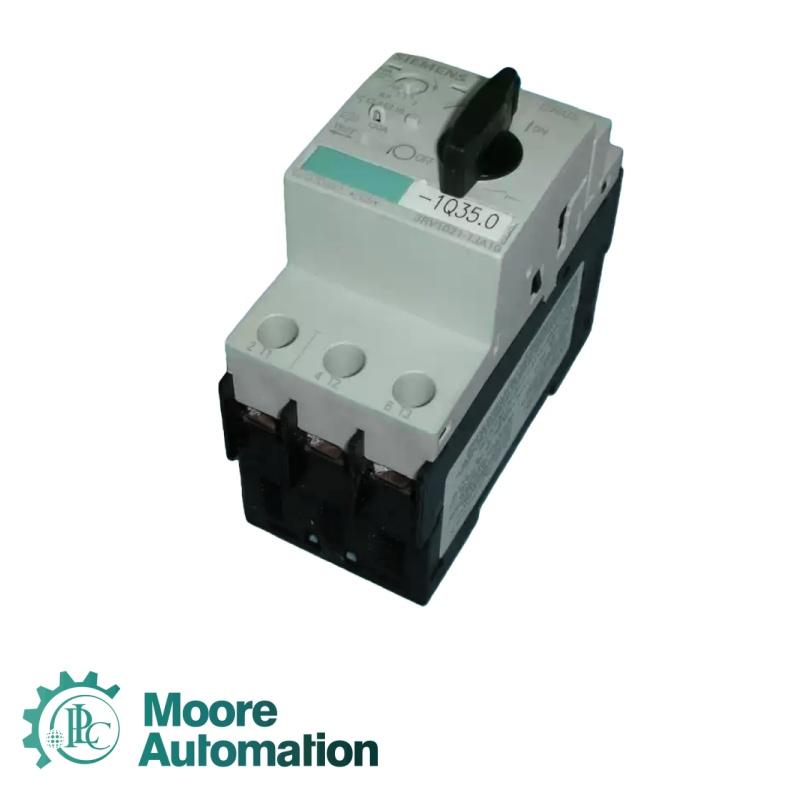

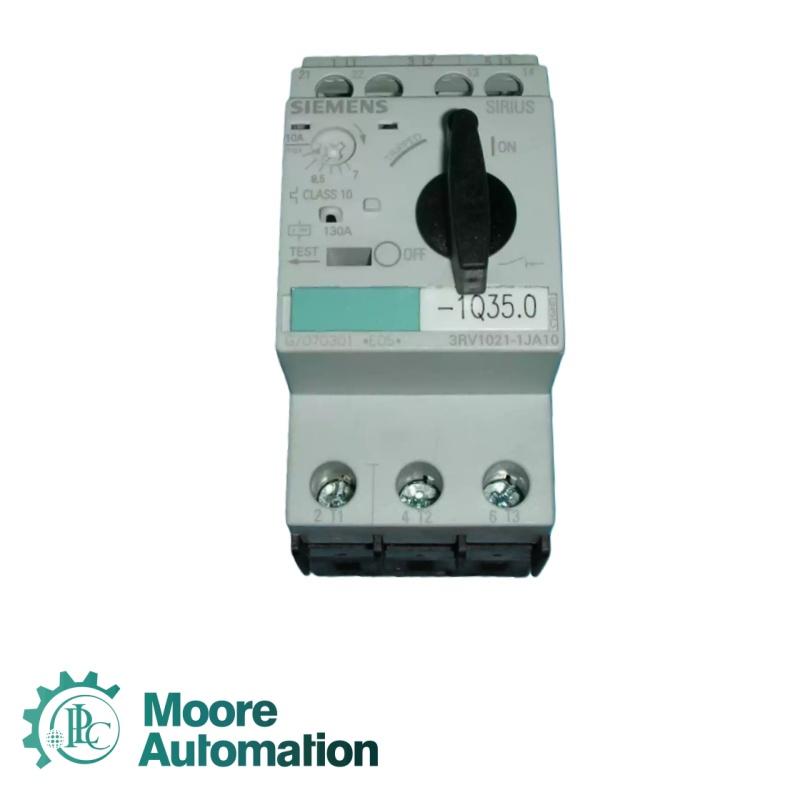

SIEMENS 3RV1021-1JA10 CIRCUIT BREAKER

All our products are fully authentic

Structural dimensions of circuit breaker: S0
Number of poles/for main current circuit: 3
Detachable wiring clip for auxiliary and control circuits: No
Overload protection: Yes
Phase recognition: Yes
Grounding identification: No
Auxiliary switch (product component): No
Undervoltage release (product component): No
Release alarm (product component): No
Auxiliary switch (product extension): Yes
Optional/Motor Drive (Product Expansion): No
Pulse voltage intensity/measured value: 6000
Protection level IP/front: IP20
Anti electric shock contact protection: direct contact protection
Installation height/for heights above NN/maximum: 2000
Impact resistance: 25g/11ms
Environmental temperature (during transportation): -50...+80
Environmental temperature (during storage): -50...+80
Environmental temperature (during operation): -20...+60
Loss of active power/total/typical: 7
Working voltage/measured value: 690
Rated power/at AC-3/at 400 V/measured value: none
Working current/at AC-3/at 400 V/measured value: 10
Mechanical service life (conversion cycle)/main contact/typical: 100000
Switching frequency/AC-3 hour/maximum value: 15
Number of converters/for auxiliary contacts: 0
Release level: CLASS 10
Adjustable action value current/overload trip controlled by current: 7... 10 A
Tightening type: Screw fastening and buckle fastening on 35mm mounting rails according to DIN EN 50022
Loading location: Any
Depth: 96 mm
Height: 97 mm
Width: 45 mm
Arrangement of electrical connections/for main current circuits: front side
Electrical connection structure form (for main circuit): bolted connection
Electrical connection structure form (used for auxiliary and control current circuits): bolted connection
Types of wire cross-sections that can be connected (main contact single core wire): 2x (1... 2.5 mm ²), 2x (2.5... 6 mm ²)
Connectable wire cross-sectional type (main contact thin core wire): None
Types of wire cross-sections that can be connected (main contacts with cable end processing): 2x (1... 2.5 mm ²), 2x (2.5... 6 mm ²)
Types of wire cross-sections that can be connected (main contact multi strand wire): 2x (1... 2.5 mm ²), 2x (2.5... 6 mm ²)
Connectable wire section types (main contact AWG wire): 2x (14... 10)
Certification: CCC, EAC, UL, LRS, RMRS
