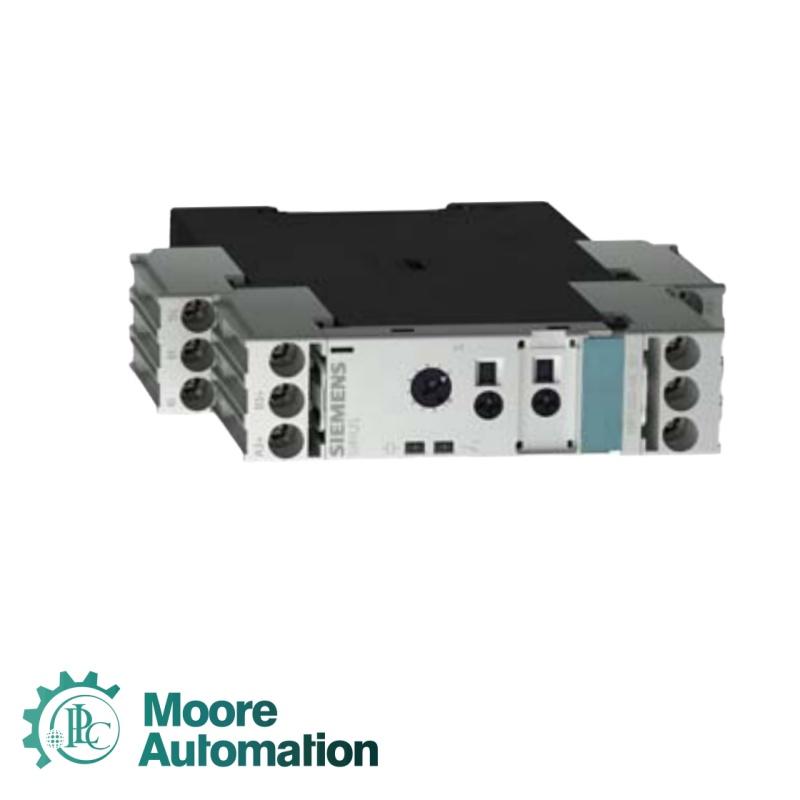

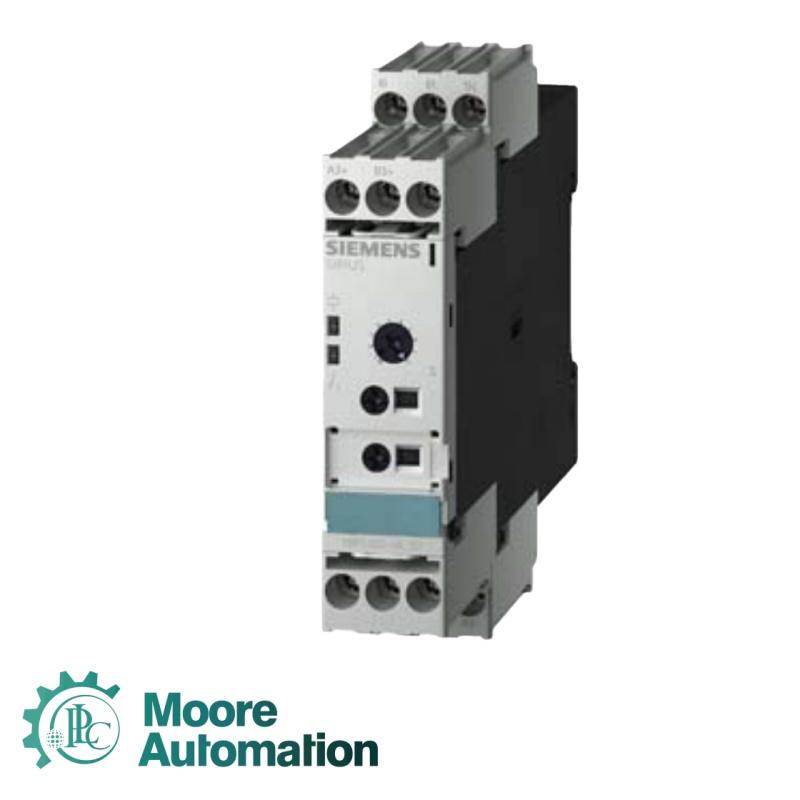

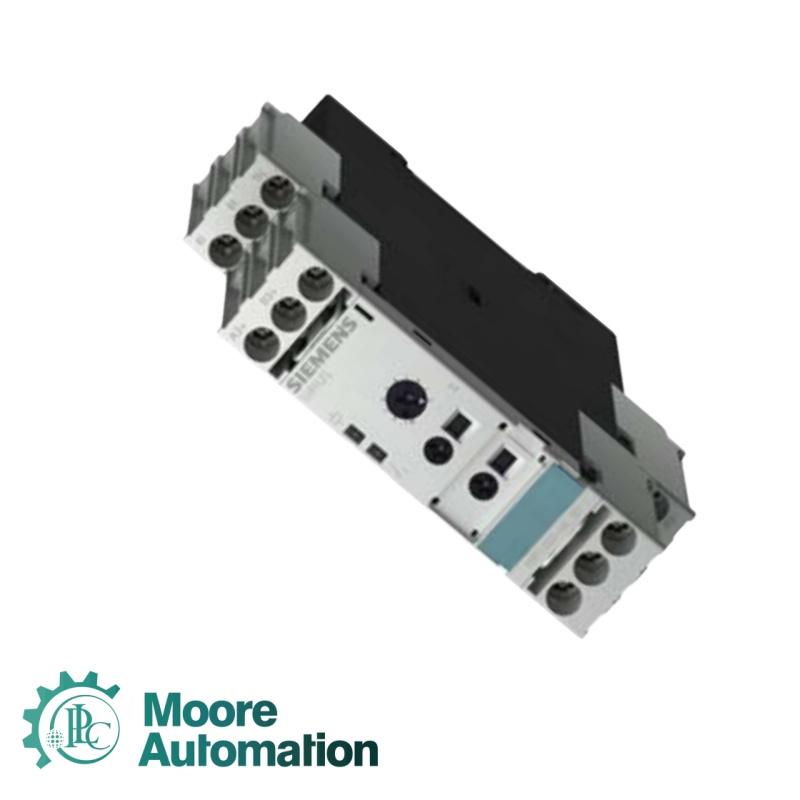

SIEMENS 3RP1505-1AP30 MULTI-FUNCTION TIME RELAY

SIEMENS 3RP1505-1AP30 MULTI-FUNCTION TIME RELAY

SIEMENS 3RP1505-1AP30 MULTI-FUNCTION TIME RELAY

Brand:
Siemens
Order(MOQ):
1
Payment:
T/T
Product Origin:
Germany
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
in stock

Product Detail

We anticipate a productive and mutually beneficial business relationship

All our products are fully authentic

Number of Functions: 8 timing functions
Time Ranges: 15 ranges, from 0.05 seconds to 100 hours
Supply Voltage:
24 V AC / DC
200 – 240 V AC, 50 / 60 Hz
Power Loss (Max): ~2 W
Rated Insulation Voltage (Overvoltage Category III): 300 V
Test Voltage (Isolation): 2 kV
Surge Voltage Resistance: 4,000 V
Pollution Degree: 3
Mechanical Service Life: ~10,000,000 cycles
Electrical Endurance (AC-15, 230 V): ~100,000 operations
Adjustable Time Accuracy: ±5% relative to full scale
Repeat Accuracy: ±1%
Minimum ON Period: 35 ms
Recovery Time: 150 ms
Thermal Current (Ie): 5 A
Short-Circuit Protection (Auxiliary): Requires fuse gL / gG 4 A for the control circuit
Auxiliary Contact Current Ratings:
AC‑15: 3 A @ 24 V, 3 A @ 250 V
DC‑13: 1 A @ 24 V, 0.2 A @ 125 V, 0.1 A @ 250 V
Contact Material: AgSnO₂
Operating Frequency (with Contactor): Up to 5,000 operations/hour
Operating Ambient Temperature: –25 °C to +60 °C
Storage Temperature: –40 °C to +85 °C
Insulation / Protection Class:
Front: IP40
Terminals: IP20
Mounting: Snap-on + screw mounting on 35 mm DIN rail, any orientation allowed
Conductor Cross‑Section (Terminals):
Solid: 0.5 – 4 mm²
Finely stranded (with ferrules): 0.5 – 2.5 mm²
Screw Terminal Torque: 0.8 – 1.2 N·m
Altitude for Installation: Up to 2,000 m above sea level
