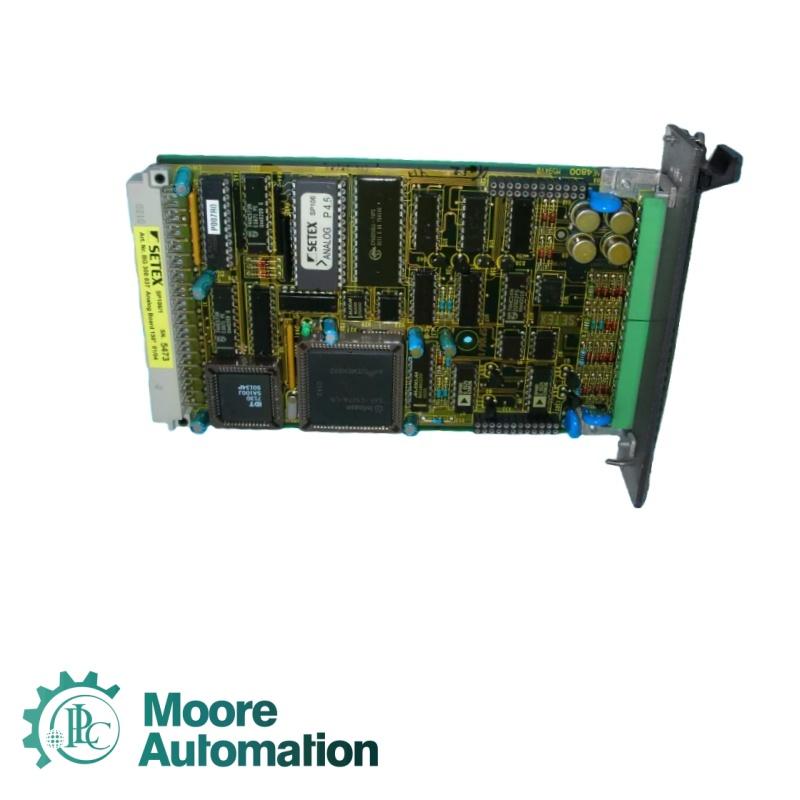

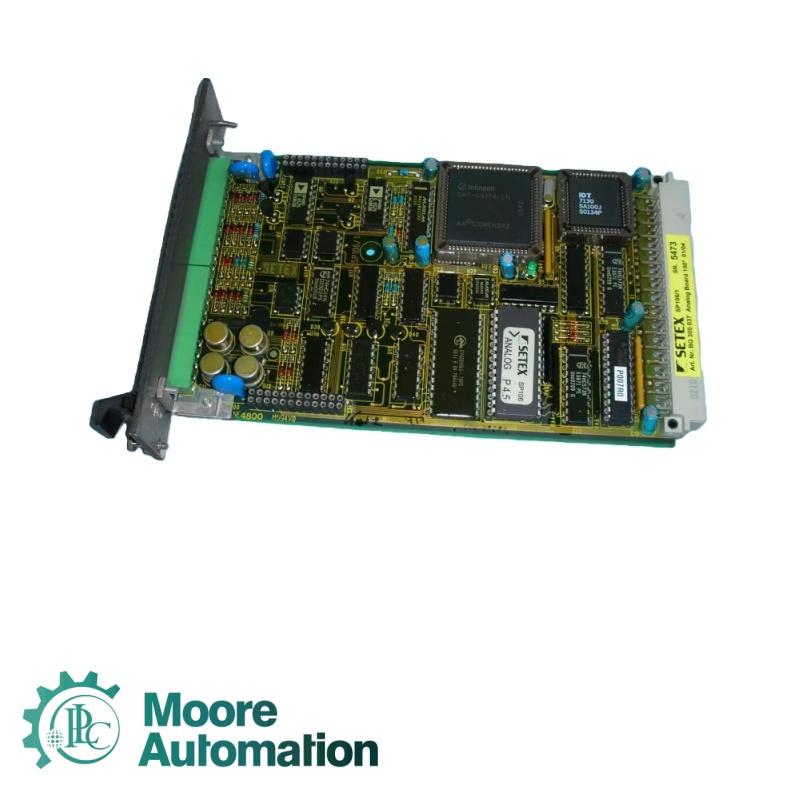

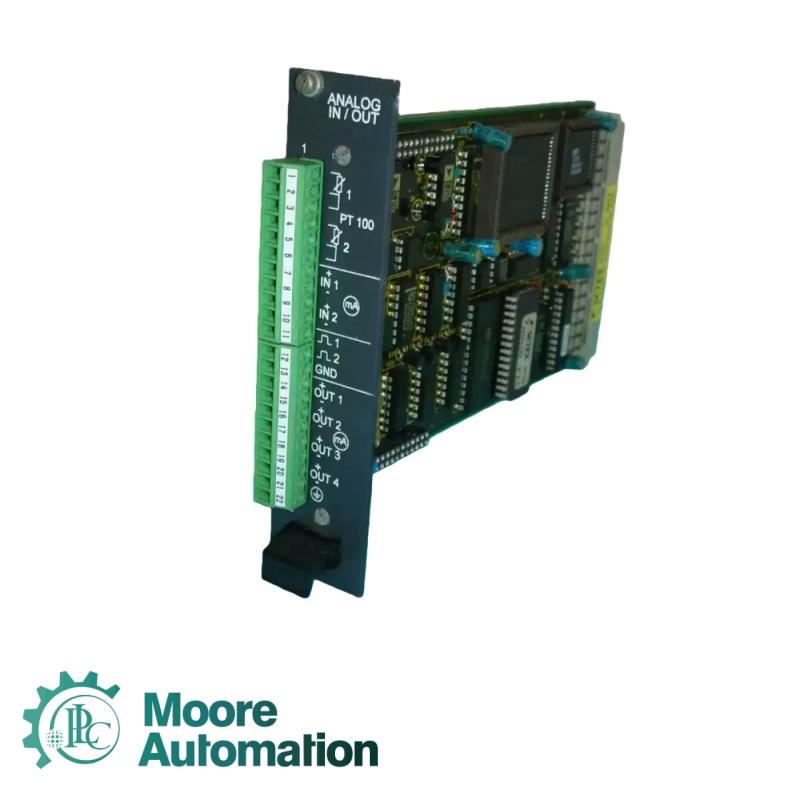

SETEX SP106/1 Analog board

John Yang

WhatsApp:+86 18150117685

Email: sales3@askplc.com

Model: SP106/1

Product Type:Analog board

Product parameter:

Number of Analog Inputs: 6 independent channels
Input Signal Types: 0–10 V, 4–20 mA selectable per channel
Input Resolution: 12-bit A/D conversion
Input Accuracy: ±0.3% FS
Input Isolation: Galvanically isolated channels for noise immunity
Input Filtering: Digital/analog low-pass filtering
Analog Output Specifications:
Number of Analog Outputs: 2 channels
Output Signal Types: 0–10 V or 0–20 mA depending on configuration
Output Resolution: 12-bit D/A conversion
Output Drive Capability: Up to 20 mA load
Stability: High linearity with drift compensation
Electrical Characteristics:
Power Supply Voltage: 24 V DC (supplied via SETEX controller backplane)
Power Consumption: Approx. 4 W
Protection Features:
Over-voltage protection
Reverse polarity protection
ESD suppression on all I/O lines
Operating Temperature: –10°C to +55°C
Storage Temperature: –25°C to +80°C
Humidity: 5%–90% non-condensing
