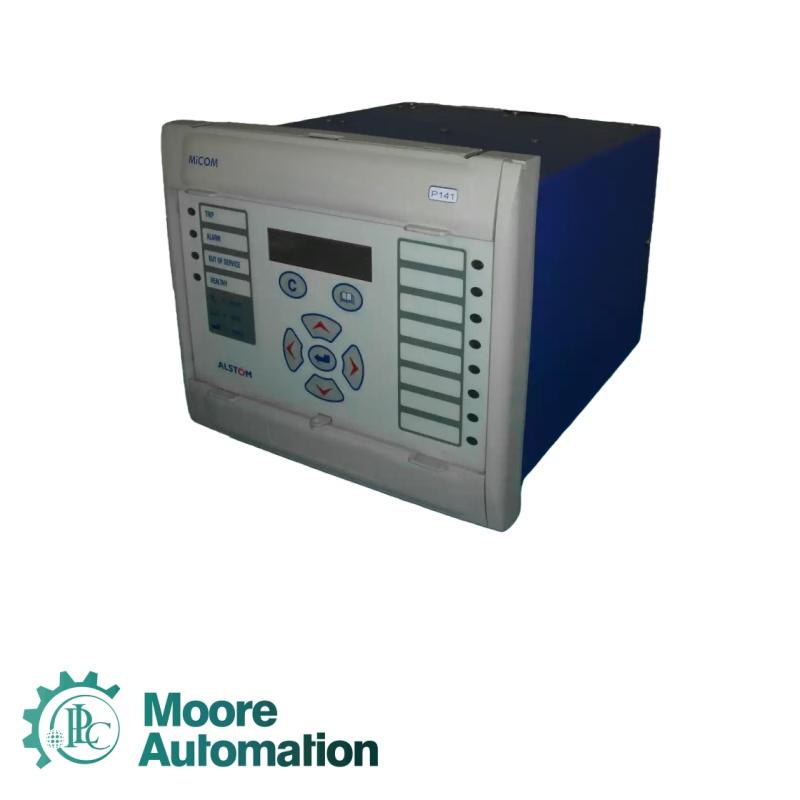

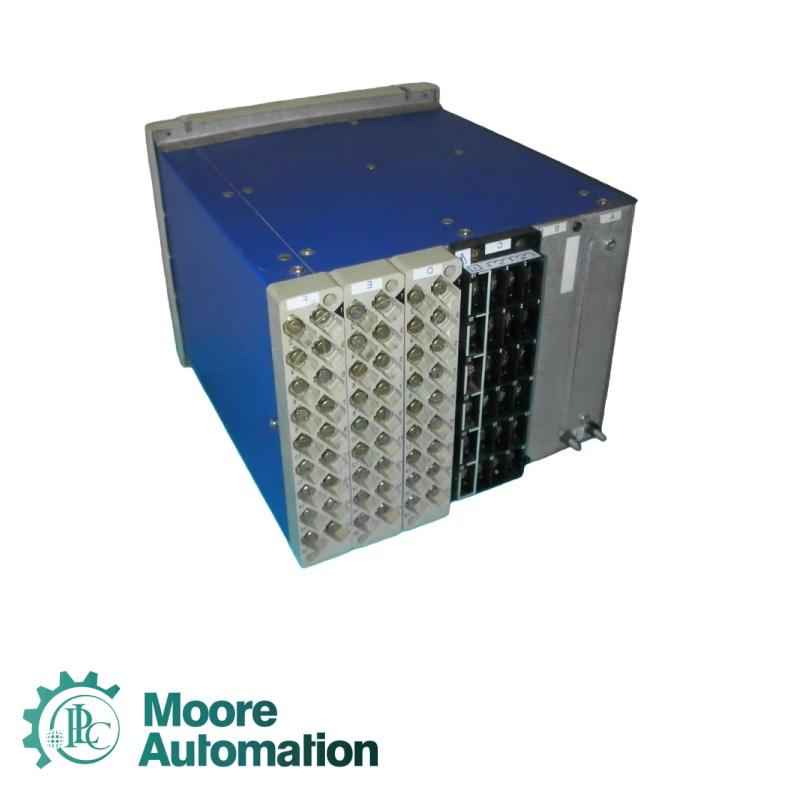

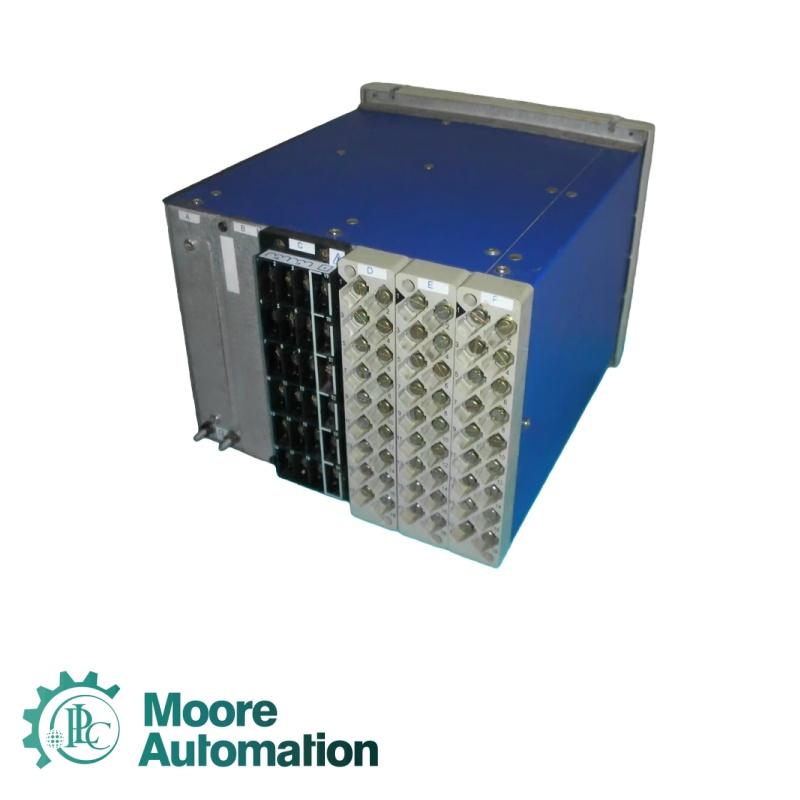

ALSTOM MICOM P141311A2A0050A Controller

John Yang

WhatsApp:+86 18150117685

Email: sales3@askplc.com

Model: P141311A2A0050A

Product Type:Controller

Product parameter:

Binary Inputs: 8 configurable digital inputs
Binary Outputs: 6 relay outputs (programmable)
CT Inputs: 1A / 5A selectable via settings
VT Inputs: Optional voltage input module (model variant dependent)
Communication Interfaces:
RS485 port for remote communication
IEC 60870-5-103 protocol support
Modbus RTU slave support
Optional IEC 61850 (depending on firmware variant)
Optical port for local engineering access
Memory & Event Recording:
Disturbance recorder: up to 10 seconds waveform capture
Event log: up to 250 time-stamped events
Fault record: stores last 10 protection operations
1 ms time tagging accuracy
Display & User Interface:
Backlit monochrome LCD display
Four-button navigation keypad
LED indicators for trip/alarm/status
Clear text menus with multi-language support
Power Supply:
Auxiliary voltage range: 24–250 V DC / 48–240 V AC
Power consumption: < 10 VA
Operating Environment:
Operating Temperature: –10°C to +55°C
Storage Temperature: –25°C to +70°C
Humidity: 5%–95% non-condensing
IP Rating: IP54 (front panel), IP20 (rear)
