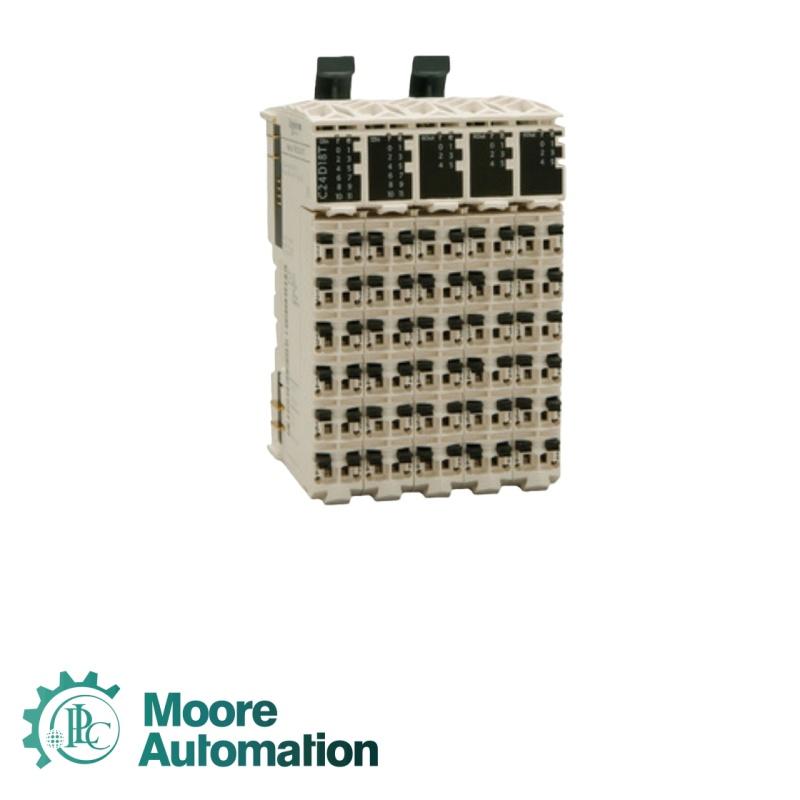

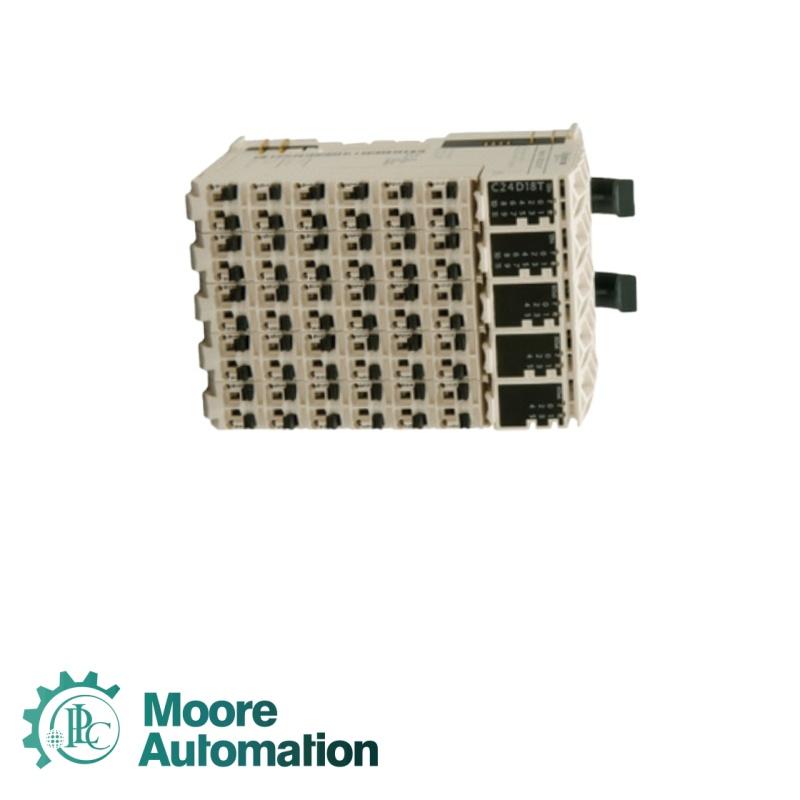

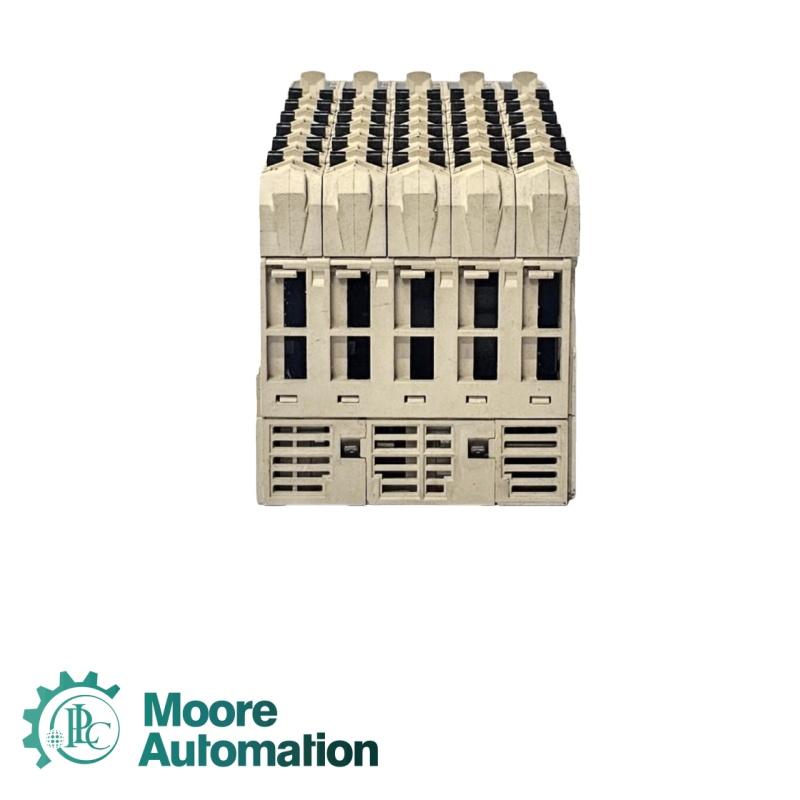

Schneider TM5C24D12R Compact I/O expansion block

Schneider TM5C24D12R Compact I/O expansion block

Schneider TM5C24D12R Compact I/O expansion block

Brand:
Schneider
Order(MOQ):
1
Payment:
T/T
Product Origin:
France
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
in stock

Product Detail

We look forward to building a long-term, stable, and seamless partnership with you.

Product Name:TM5C24D12R
Brand Name:Schneider
Product Origin:France
Payment: T/T
Shipping Port: Xia men
Delivery time: 1-3 days
❒Email: sales3@askplc.com
❒Mobile(Whats App): 86-18150117685

Product Specs

Number of Digital Input Channels: 24 channels (isolated)
Input Signal Type: DC input
Input Voltage Range: 24VDC (sinking/sourcing configurable)
Input Current: 4mA per channel (typical)
Response Time: ≤1ms (standard), ≤0.1ms (fast response mode optional)
Input Impedance: 2.2kΩ (for 24VDC)
Input Status Indication: LED per channel (green: ON, off: OFF)
Isolation Type: Channel-to-channel isolation (500VAC, 1 minute)
Number of Digital Output Channels: 12 channels (relay output)
Relay Type: Double-pole Single-throw (DPST)
Rated Switching Voltage: 250VAC / 30VDC
Rated Switching Current: 6A per channel (resistive load), 2A per channel (inductive load)
Maximum Inrush Current: 12A (peak, 1 second)
Mechanical Life: 10 million operations (no load)
Electrical Life: 100,000 operations (rated load)
Output Status Indication: LED per channel (red: ON, off: OFF)
Short-Circuit Protection: Built-in thermal overload protection for relay contacts
Power Supply Voltage: 24VDC ±10% (unregulated)
Power Consumption: 10W (typical), 15W (maximum)
Inrush Current: ≤3A (24VDC input, start-up)
