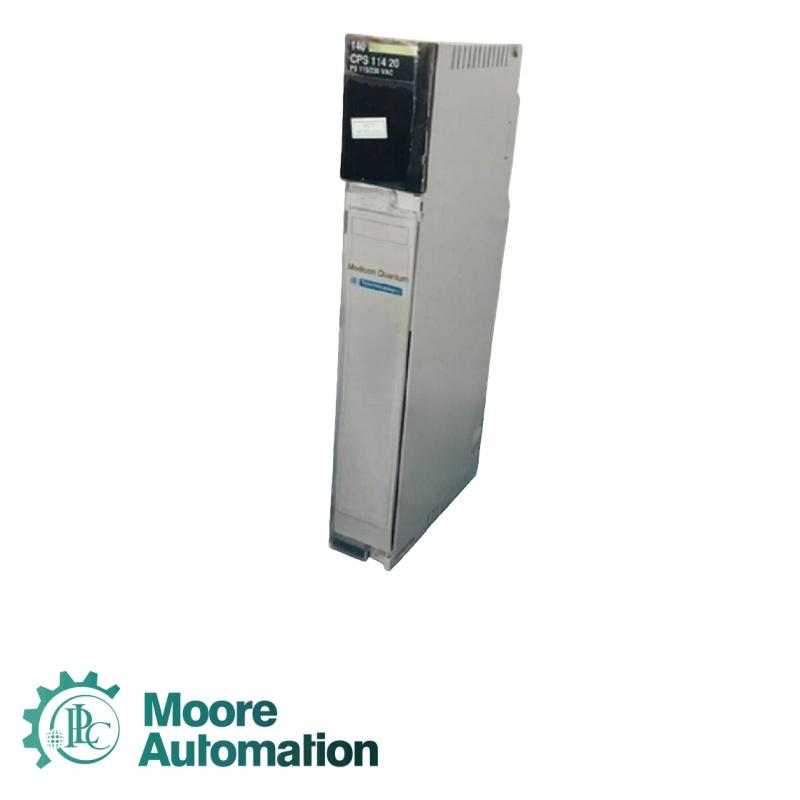

Schneider 140CPS11420R module

Establish Contact With Us

Applicable platform: Modicon Quantum local I/O backplane, supports parallel stacking of the same model
Input voltage range: 115 V AC (93-132 V AC)/230 V AC (170-276 V AC), switchable
Input frequency: 47-63 Hz (compatible with 50/60 Hz power grid)
Input current (typical): 115 V AC approximately 1300 mA; 230 V AC approximately 750 mA
Input apparent power: approximately 130 VA
Output voltage: 5.1 V DC (powered by backplane bus)
Independent mode output current: 11 A (single module)
Total output current in superposition mode: 20 A (multiple modules in parallel)
Output ripple and noise: ≤ 50 mV p-p (typical value, full load)
Output protection: overvoltage protection, overload protection, short circuit protection, over temperature protection
Power efficiency: ≥ 85% (full load, typical value at 25 ° C)
Response time: Transient response of output voltage ≤ 50 μ s (load step 25% -75%)
Isolation level: 2500 V AC (1 min) between input/output/chassis, in compliance with IEC standards
Working temperature range: 0 ° C-60 ° C (no condensation, rated derating)
Storage temperature range: -40 ° C -85 ° C (relative humidity 10% -95%, no condensation)
Relative humidity: 10% -95% (working/storage, no condensation)
Protection level: IP20 (front panel, suitable for installation inside control cabinets)
Installation method: 35mm DIN rail installation+backplate buckle fixation
Wiring terminal: 7-point terminal connector, compatible with 1.5-2.5 mm ² wires
Status indication: Power supply normal (green), fault (red), ready for stacking (yellow)
Diagnostic function: Output overvoltage/overload/short circuit/over temperature alarm, support backplane status feedback
Electromagnetic compatibility: compliant with EN 61000-6-2/EN 61000-6-4, suitable for industrial environments
