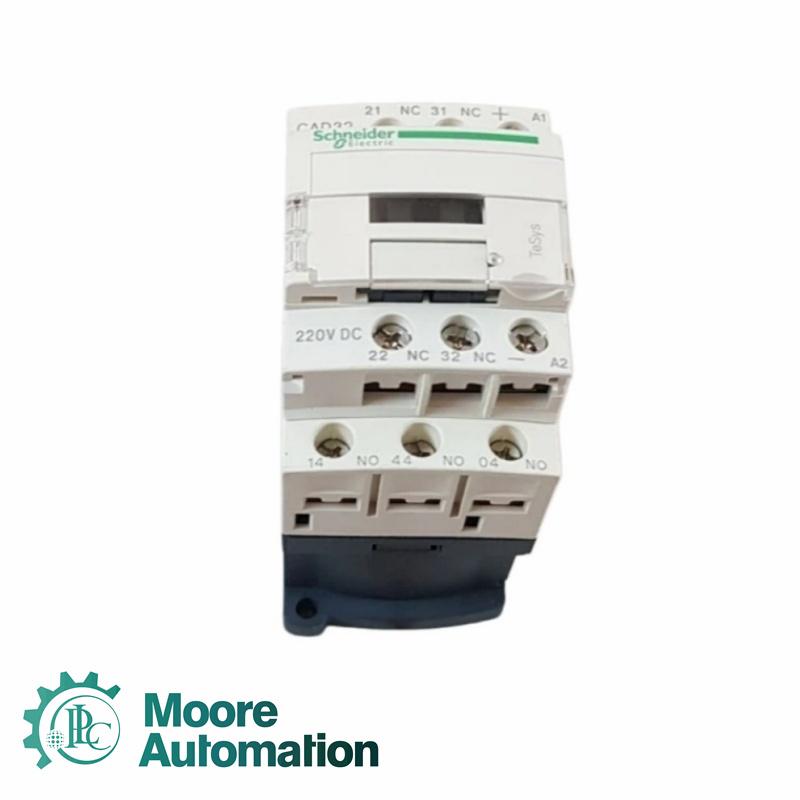

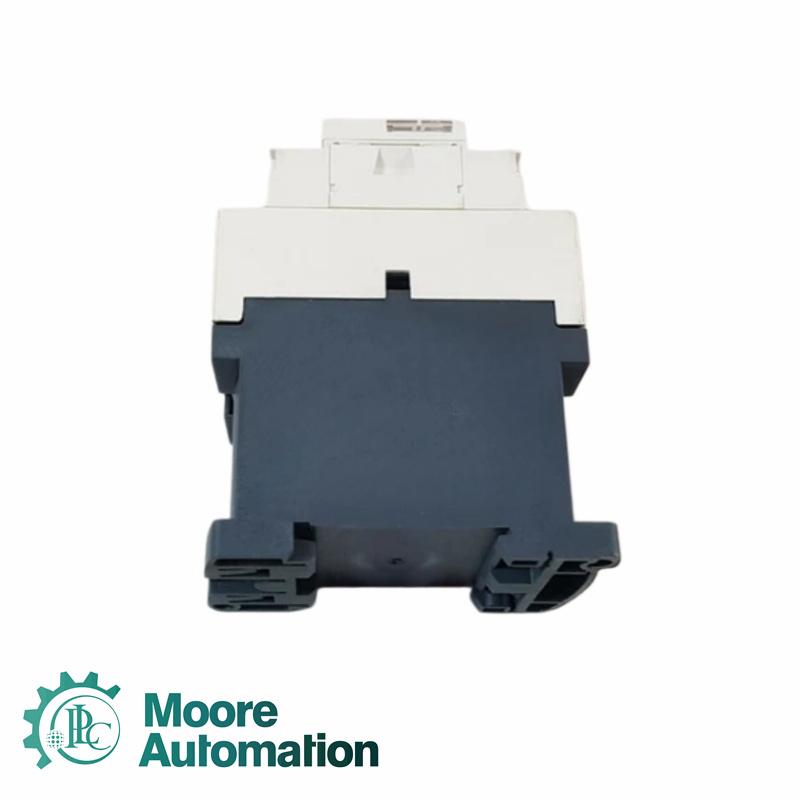

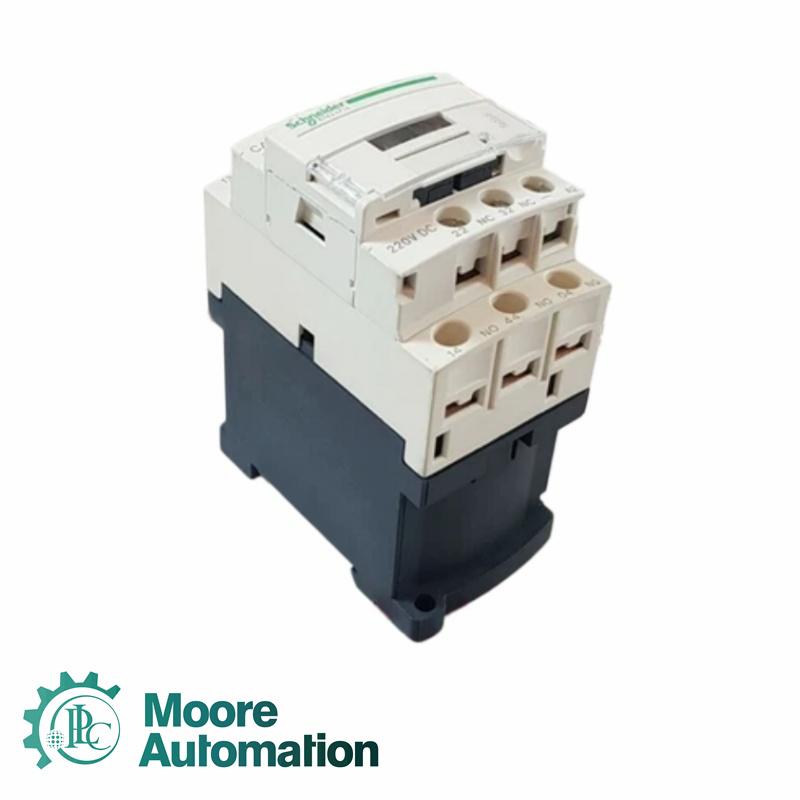

Schneider CAD32MD Control Relay

For more information about CAD32MD

Sale Manager

Email

Mobile(WhatsApp)

John Yang

sales3@askplc.com

86-18150117685

Full Details of CAD32MD

Origin:France

Delivery time: 1-3 days

Brand name:Schneider

Payment method: T/T

Model: CAD32MD

Quality: 100% original new

Warranty period: 1 year

Transportation period: DHL FEDEX EMS UPS TNT

Main Parametersof CAD32MD

Application:Control Circuit
Contact Configuration:3NO+2NC
Rated Operating Voltage:≤690V AC 25...400Hz
Control Circuit Type:DC Standard
Control Voltage:220V DC
Rated Impulse Withstand Voltage:6kV
Conventional Thermal Current:10A at 60°C
Rated Making Capacity:140A AC / 250A DC
Short-Time Withstand Current:100A 1s
Short-Time Withstand Current:120A 500ms
Short-Time Withstand Current:140A 100ms
Fuse Rating:10A gG
Mechanical Durability:30M Cycles
Maximum Operating Rate:180 Cycles/min
Time Constant:28ms
Inrush Power:5.4W at 20°C
Holding Power:5.4W at 20°C
Minimum Switching Voltage:17V
Minimum Switching Current:5mA
Non-Overlap Time:1.5ms
Insulation Resistance:>10MΩ
Height:77mm
Width:45mm
Depth:93mm
Net Weight:0.58kg
IP Rating:IP2x
Protective Treatment:TH
Operating Temperature:-40…60°C
Operating Temperature Derated:60…70°C
Storage Temperature:-60…80°C
Operating Altitude:0…3000m

CAD32MD  is brand new and in stock. There is a lot of inventory.

Product Outlineof CAD32MD

CAD32MD is a control relay, 5 contacts (3 NO + 2 NC), 10A/690V, suitable for controlling electromagnetic loads AC-15/DC-13. It offers high reliability and durability for operating rates up to 180 cycles per minute and ambient temperatures of -40/+60°C. Compact size (45mm wide), it can be mounted on a 35mm DIN rail or screwed in. Multiple standard certifications (IEC, UL, CSA, CCC, EAC, Marine), compliant with Green Premium (RoHS/REACh).

Benefits
High reliability and durability
Easy to install and maintain
Versatile contact configuration for various control needs
Compliance with international standards for safety and performance
Compact and lightweight design for efficient use of space

Applications
The CAD32MD control relay is suitable for a wide range of applications, including:
Motor control circuits
Industrial automation systems
HVAC systems
Lighting control
Power distribution systems

If you want to purchase CAD32MD , please contact me for big discount.
Email:sales3@askplc.com

Mobile(WhatsApp): 86-18150117685

FAQ of CAD32MD

What is the Schneider CAD32MD ?
It is a Control Relay.

Do you provide warranty as standard?
We provide a full 12-month warranty for the Schneider CAD32MD . So, if you have any problems within 12 months from the date of delivery, then you can contact our Team who will be happy to help and explain what your next steps should be.

What shipping methods are used for Schneider CAD32MD?
Major carriers like FedEx, DHL, and UPS are primarily used for worldwide delivery.

How are the Schneider CAD32MD packaged?
CAD32MD packaging generally involves multiple layers of protection to ensure safe transit.
