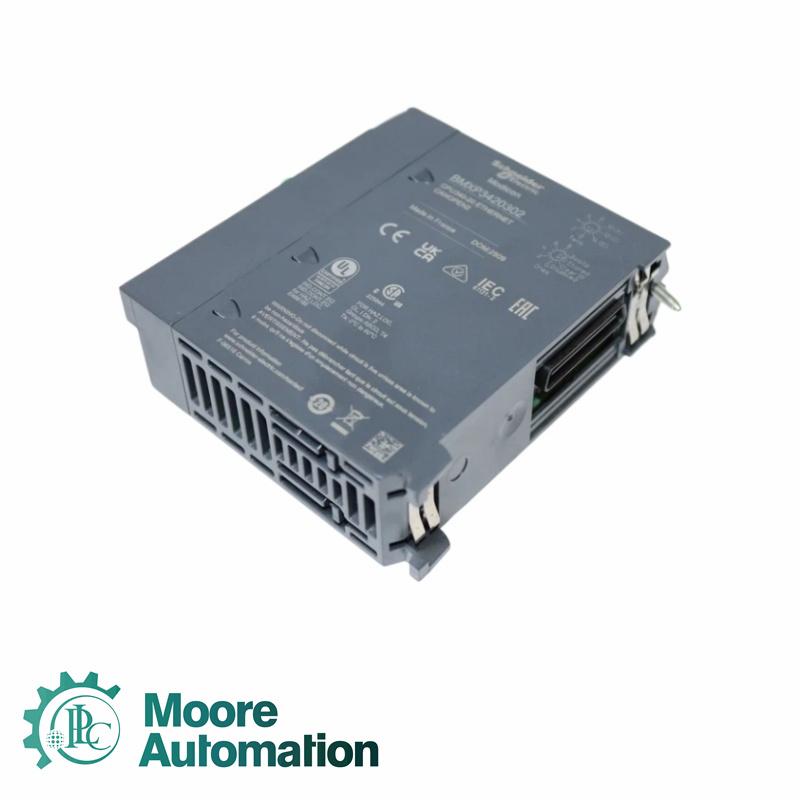

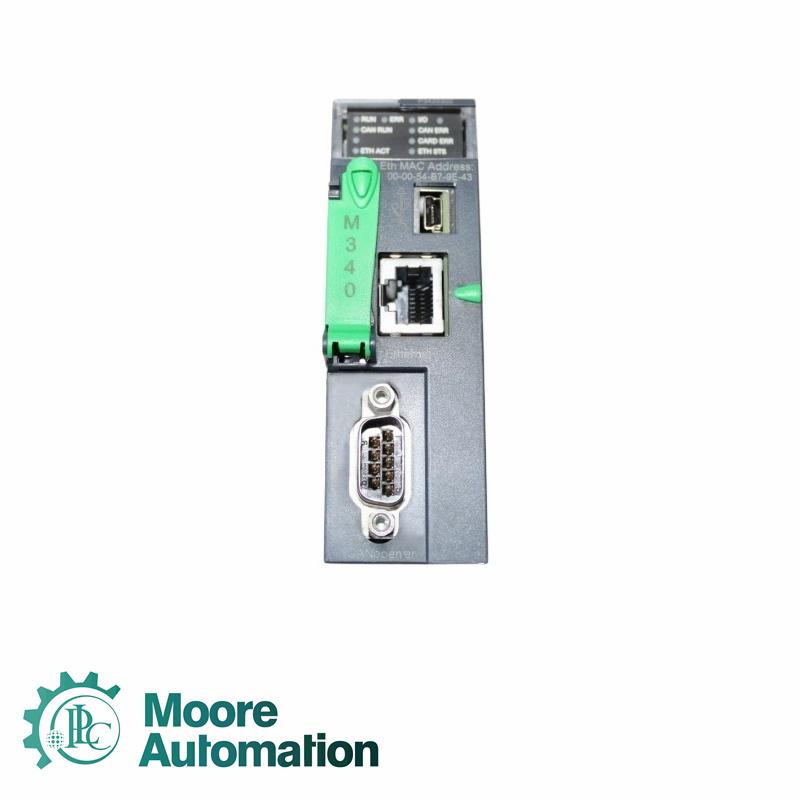

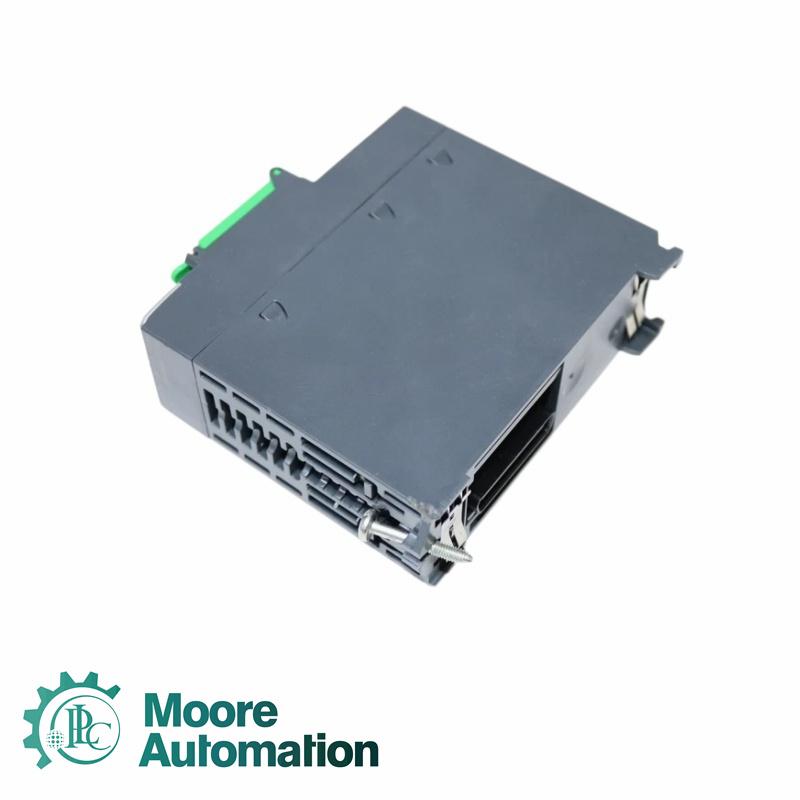

Schneider BMXP3420302 processor module

100% Original New
1 Year Warranty
Competitive Pice
Email: sales3@askplc.com

Brand:
Schneider
Order(MOQ):
1
Payment:
T/T
Product Origin:
France
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
in stock

Product Detail

This BMXP3420302 processor module is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). It offers a maximum of 4 rack configuration, 36 application specific channels, 63 CANopen slaves and 11 slots. BMXP3420302 is a processor module with a current consumption of 135mA at 24V DC, works with internal power supply. This product is robust, high quality and based on the latest innovative technology. Communication processor module interfaces are 2 Ethernet modules and 4 AS-Interface modules. It is supplied with a memory card for backup of programs, constants, symbols and data. It is an IP20 rated product. The module has 1024 multi-rack, 704 single-rack configuration discrete I/O processor capacity and 256 multi-rack, 66 single-rack configuration analog I/O processor capacity. It supports up to 800kbps 0m to 40m, 0m to 6m transmission rate.

Property	Characteristics
Number of Racks:	4
Local I/O Processor Capacity (Discrete):	1024 I/O
Analogue I/O Processor Capacity:	256 I/O
Number of Application Specific Channels:	36
Control Channels:	Programmable loops, Motion control, Independent axis CANopen
Integrated Connection Type:	USB port at 12 Mbit/s, CANopen master bus SUB-D 9 (2 twisted shielded pairs at 20 kbit/s…1 Mbit/s), Ethernet TCP/IP RJ45 (1 twisted pair at 10/100 Mbit/s)
Communication Module Processor Capacity:	2 Ethernet communication modules, 4 AS-Interface modules
Port Ethernet:	10BASE-T/100BASE-TX
Number of Server Devices:	63 CANopen
Number of Devices per Segment:	0–16 for <205 m (CANopen), 0–32 for <185 m (CANopen), 0–64 for <160 m (CANopen)
Maximum Size of Object Areas:	32634 %Mi located internal bits, 32464 %MWi internal words, 32760 %KWi constant words
Default Size of Object Areas:	1024 %MWi internal words located internal data, 256 %KWi constant words located internal data, 512 %Mi located internal bits
Application Structure:	1 cyclic/periodic master task, 1 periodic fast task, No auxiliary task, 64 event tasks
Execution Time per Instruction:	0.12 µs Boolean, 0.17 µs double-length words, 0.25 µs single-length words, 1.16 µs floating points
Number of Instructions per ms:	6.4 Kinst/ms (65% Boolean + 35% fixed arithmetic), 8.1 Kinst/ms (100% Boolean)
System Overhead:	0.13 ms for fast task, 0.7 ms for master task
Current Consumption:	135 mA at 24 V DC
Supply:	Internal power supply via rack
Product Weight:	0.215 kg
Ambient Air Temperature for Operation:	0–60 °C
Relative Humidity:	5–95 % without condensation
IP Degree of Protection:	IP20
Protective Treatment:	TC
Dimensions (HxWxL):	5.5 cm x 11 cm x 11.7 cm

Over the years, we have grown into a trusted global supplier with operations centers in Xiamen, China and Hong Kong, China. Our business spans the globe, with most of our valued customers located in the Middle East, Europe, the UK, Asia, and the USA.

Quick to get a competitive price

Sale Manager: John Yang
Email: sales3@askplc.com
Mobile(WhatsApp): 86-18150117685

More brands you may want to find

----(DCS)Distributed Control System

ABB/Invensys/Foxboro/Invensys Triconex/Westinghouse/Woodword/HIMA/Yokogawa/Honeywell/Emerson

----(PLC)Programmable Logic Controller

Rockwell/Allen-Bradley/Schneider/Modicon/GE Fnauc/Siemens/Prosoft/Bachmann/Woodhead

----(TSI)Turbocharger Stratified Injection

Bently Nevada/EPRO/ENTEK

Application
Water Treatment and Environmental Protection Plants:
Utilizes a built-in Ethernet interface for easy remote network monitoring of multiple pump stations and filtration units. Its high reliability ensures 24/7 uninterrupted operation of the wastewater treatment process.

Food and Beverage Processing Plants:
Handles the fast logic of filling and packaging lines. The CANopen interface can directly control multiple frequency converters and servo drives, achieving precise conveyor belt synchronization.

Small and Medium-Sized Manufacturing and Machine Tool Plants:
Compact size, suitable for installation in small control cabinets. Handles complex mechanical interlocking controls with excellent cost-effectiveness.

Power and Energy Monitoring Stations:
Monitors the status of distribution cabinets and uploads data to the SCADA system in real time via Ethernet.

FAQ

Q1: What is the difference between the BMXP3420302 and 2020?
A: The BMXP3420302 has a CANopen interface, specifically designed for controlling bus devices (such as sensor networks and servos); the 2020 does not have this interface and primarily relies on Ethernet.

Q2: Does BMXP3420302 support hot-swapping?
A: Yes. The CPU can be replaced while the base is powered on, but after replacement, ensure the program automatically loads from the memory card.

Q3: What software can be used for programming of BMXP3420302?
A: Use Schneider Electric's EcoStruxure Control Expert (formerly Unity Pro) software.

Q4: Why can't my CPU start (RUN light is off) of BMXP3420302?
A: Check the key switch status (if present) or check for serious runtime errors in the program that are causing system crashes.

Q5: What is its maximum operating temperature of BMXP3420302?
A: The standard model is 0°C to +60°C. For harsher environments, a coated version is required.
