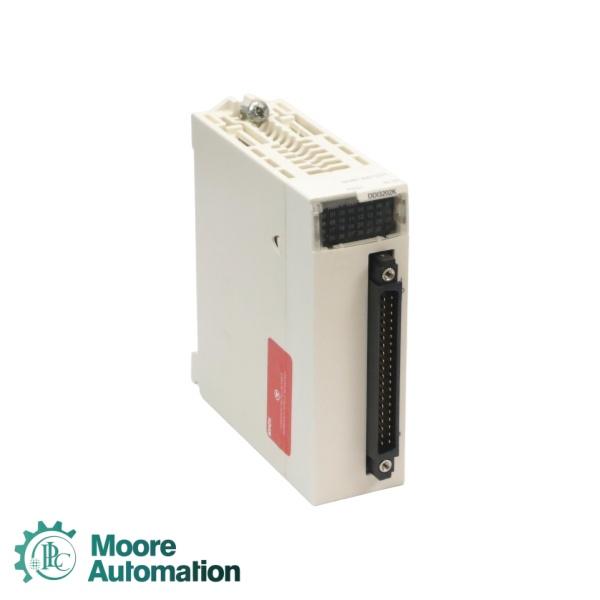

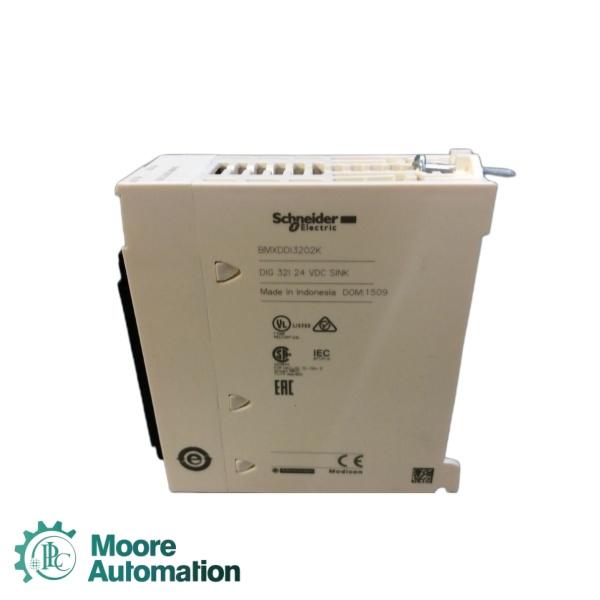

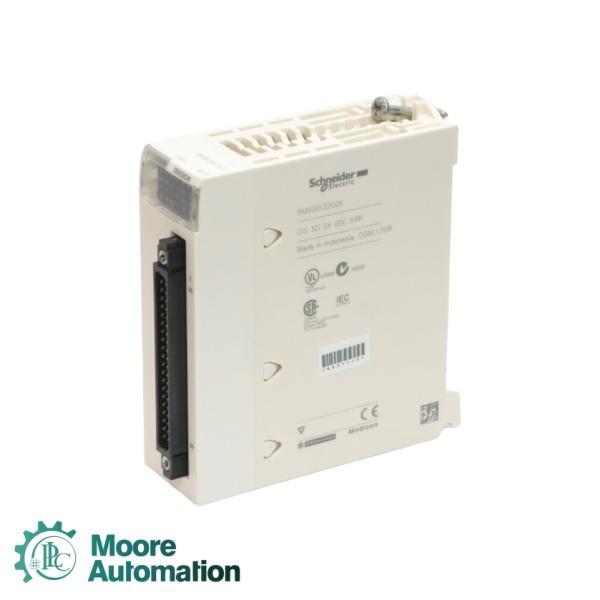

Schneider BMXDDI3202K discrete input module M340 - 32 inputs - 24 V DC positive

Range of product

Modicon X80

Product or component type

Discrete input module

Discrete input number

32

Discrete input type

Isolated

Input type

Current sink (logic positive)

Discrete input voltage

24 V DC positive

Discrete input current

2.5 mA

Input compatibility

With 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2

Sensor power supply

19...30 V

Voltage state 1 guaranteed

>= 11 V

Current state 1 guaranteed

>= 2 mA

Voltage state 0 guaranteed

<= 5 V

Current state 0 guaranteed

<= 1.5 mA

Input impedance

9600 Ohm

Insulation resistance

> 10 MOhm 500 V DC

Power dissipation in W

<= 3.9 W

DC typical filtering time

4 ms

DC maximum filtering time

7 ms

Paralleling of inputs

No

Typical current consumption

140 mA at 3.3 V DC

MTBF reliability

696320 H

Protection type

Reverse polarity protection 1 external fuse per group of channel 0.5 A fast blow

Voltage detection threshold

< 14 V DC sensor fault > 18 V DC sensor OK

Status LED

1 LED red for module error (ERR) 1 LED green for module operating (RUN) 1 LED per channel green for channel diagnostic 1 LED red for module I/O

Q: What preventive maintenance does Schneider Electric recommend for its power and control equipment?

A: Schneider Electric's Manufacturer Preventive Maintenance Program, performed exclusively by Schneider field service representatives, includes complete function checks, condition checks (test-based), part and system servicing (cleaning, greasing), and diagnostic-based control unit replacement . The program is recommended every five years under normal operating conditions.

Q: What is the typical lifecycle support?

A: Schneider Electric follows a structured lifecycle management policy for its automation products, including Modicon PLCs. Products move through defined phases: General Availability (full support with regular service packs), Extended Support (phone/online support and patches when warranted), Mature Support (support only, no new patches or environment testing), and Retired (no technical support or patches).

Q: What sustainability and environmental certifications does Schneider Electric offer for its products?

A:Schneider Electric was the first industrial company to receive ECOLOGO Certification from UL Solutions for its PowerPacT™ Molded Case Circuit Breakers. This third-party certification validates environmental performance across the product lifecycle, including material sourcing, manufacturing practices, recyclability, and carbon footprint disclosure. It meets ISO 14024 Type 1 ecolabel standards and is globally recognized. Schneider also provides Lifecycle Analysis and end-of-life instructions through its online environmental platform to support sustainable customer solutions.
