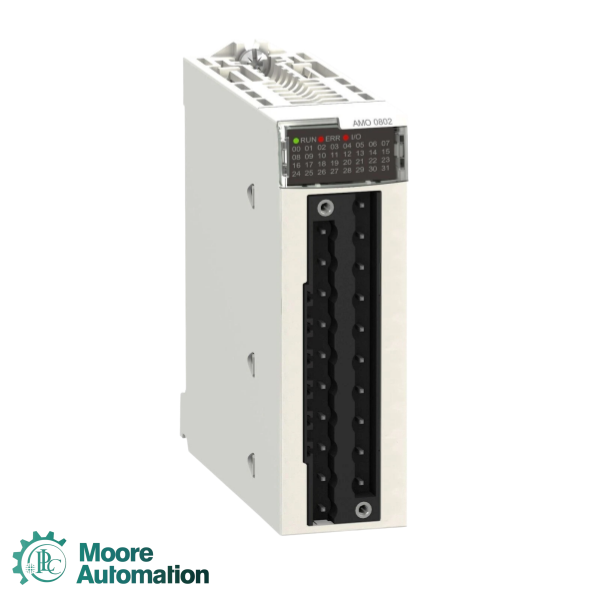

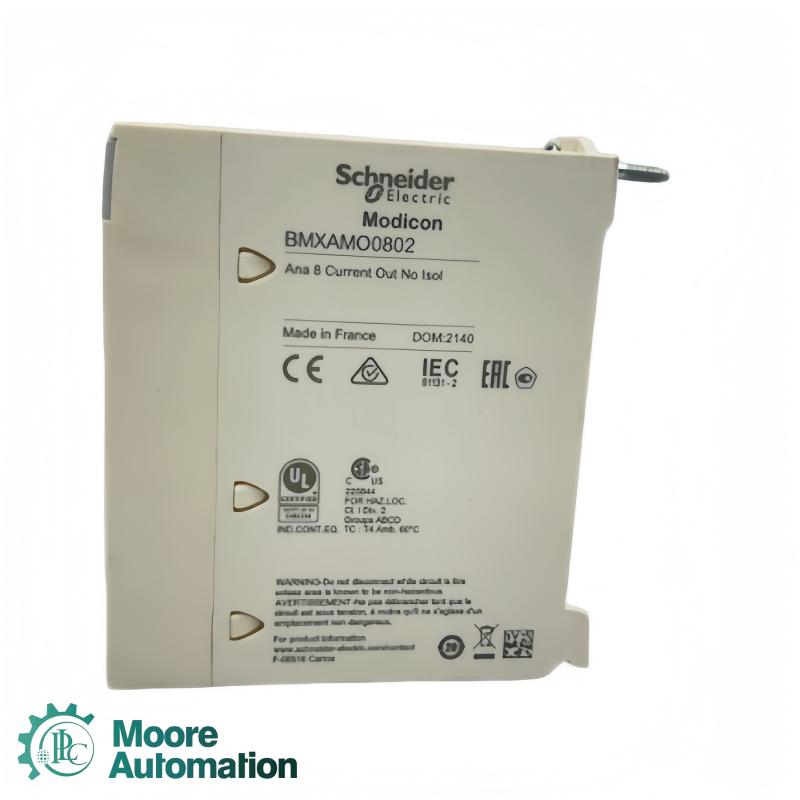

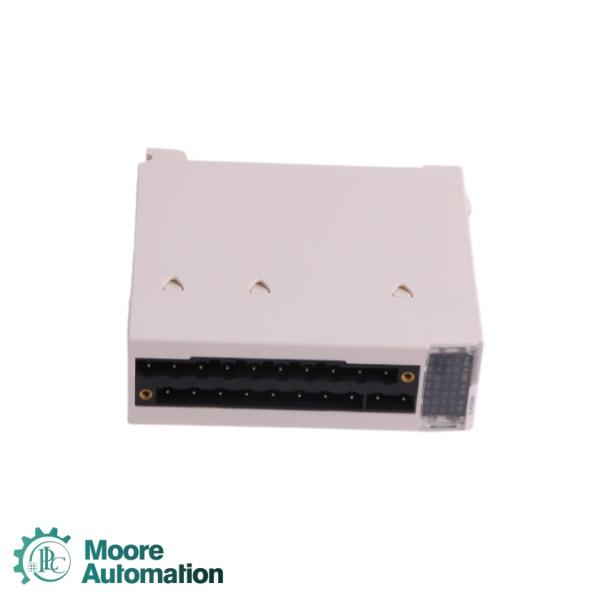

Schneider BMXAMO0802 analog output module X80 - 8 outputs

Analogue input resolution

16 bits

Measurement error

<= 0.25 % of full scale 0...60 °C 0.1 % of full scale 25 °C

Temperature drift

45 ppm/°C 0...20 mA 45 ppm/°C 4...20 mA

Minimum crosstalk attenuation

80 dB

Common mode rejection

80 dB

Isolation voltage

1400 V DC between channels and ground
1400 V DC between channels and bus

Detection type

Open circuit 4...20 mA Short circuit 0...20 mA

Load impedance ohmic

<= 350 Ohm 0...20 mA <= 350 Ohm 4...20 mA

Output level

High level

Analogue output number

8

Analogue output type

Current: 0...20 mA Current: 4...20 mA

Analogue output resolution

16 bits

Supply

Internal power supply via rack

Conversion time

<= 4 ms

Maximum conversion value

0...21 mA 0...20 mA 0...21 mA 4...20 mA

Fallback mode

Configurable Predefined

Operating altitude

0...2000 m 2000...5000 m with derating factor

Status LED

1 LED (green)RUN 1 LED per channel (green)channel diagnostic 1 LED (red)ERR 1 LED (red)I/O

Net weight

0.15 kg

Power consumption in W

3.6 W 24 V DC typical 3.9 W 24 V DC maximum 0.35 W 3.3 V DC typical 0.48 W 3.3 V DC maximum

Q: What preventive maintenance does Schneider Electric recommend for its power and control equipment?

A: Schneider Electric's Manufacturer Preventive Maintenance Program, performed exclusively by Schneider field service representatives, includes complete function checks, condition checks (test-based), part and system servicing (cleaning, greasing), and diagnostic-based control unit replacement . The program is recommended every five years under normal operating conditions.

Q: What is the typical lifecycle support?

A: Schneider Electric follows a structured lifecycle management policy for its automation products, including Modicon PLCs. Products move through defined phases: General Availability (full support with regular service packs), Extended Support (phone/online support and patches when warranted), Mature Support (support only, no new patches or environment testing), and Retired (no technical support or patches).

Q: What sustainability and environmental certifications does Schneider Electric offer for its products?

A:Schneider Electric was the first industrial company to receive ECOLOGO Certification from UL Solutions for its PowerPacT™ Molded Case Circuit Breakers. This third-party certification validates environmental performance across the product lifecycle, including material sourcing, manufacturing practices, recyclability, and carbon footprint disclosure. It meets ISO 14024 Type 1 ecolabel standards and is globally recognized. Schneider also provides Lifecycle Analysis and end-of-life instructions through its online environmental platform to support sustainable customer solutions.
