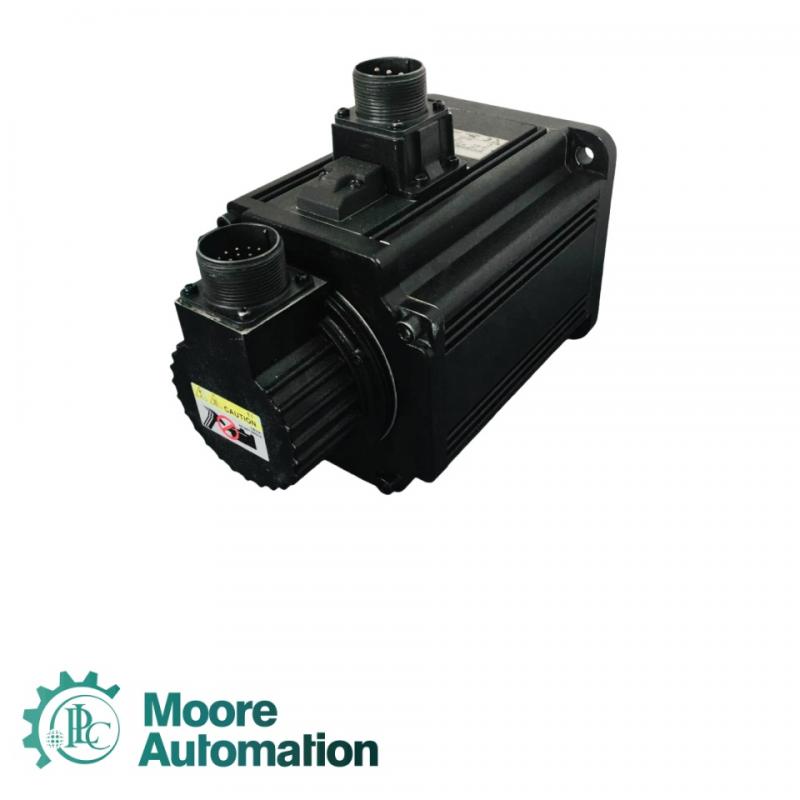

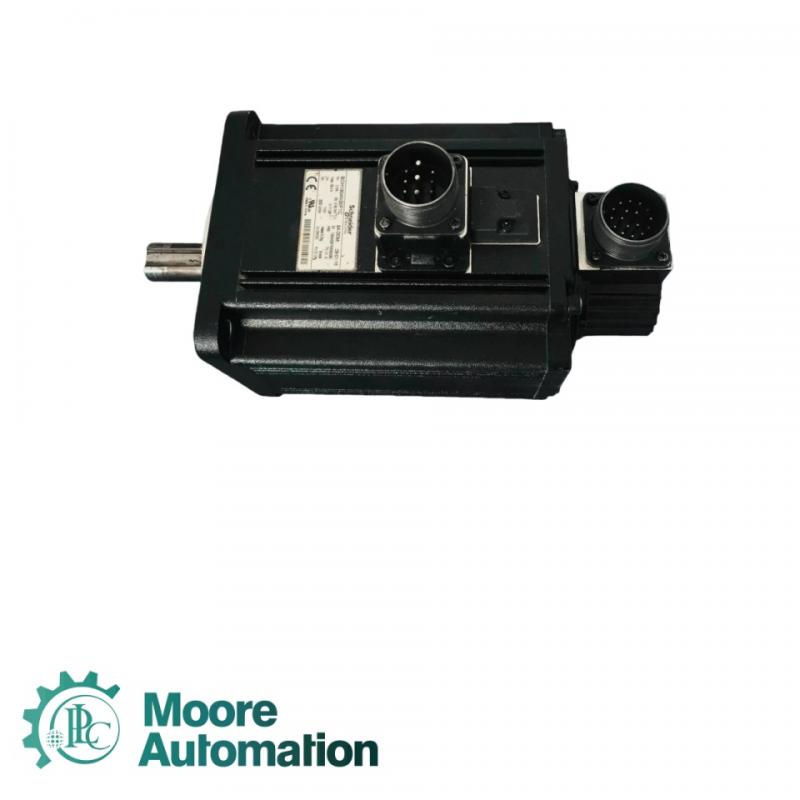

Schneider BCH1304N32F1C servo motor

Schneider BCH1304N32F1C servo motor

Brand:
Schneider
Order(MOQ):
1
Payment:
T/T
Product Origin:
France
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
in stock

Product Detail

Product Description

Product Name: BCH1304N32F1C	Brand Name：Schneider
Product Origin:France	Payment: T/T
Shipping Port: Xia men	Delivery time: 1-3 days

Contact John Yang

Email: sales3@askplc.com

Mobile(Whats App): 86-18150117685

General Information

Schneider BCH1304N32F1C servo motor is a high-performance industrial servo drive motor designed specifically for precision motion control and automated production lines. This motor integrates high torque density, fast response, and high-precision positioning, and is suitable for fields such as machine tools, robots, automated conveying systems, and packaging equipment. BCH1304N32F1C adopts advanced permanent magnet synchronous technology (PMSM), combined with low inertia design, to achieve high-speed starting, precise acceleration and deceleration control, and smooth operation.

Specification Details

Range compatibility: Lexium 23 Plus
Device short name: BCH
Product or component type: Servo motor
Maximum mechanical speed: 3000 rpm
Rated supply voltage [Us]: 220 V
Network number of phases: Three phase
Continuous stall current: 11.01 A
Continuous power: 2 kW
Shaft end: Keyed
Second shaft: Without second shaft end
Shaft diameter: 22 mm
Shaft length: 47 mm
Key width: 8 mm
Feedback type: 20 bits incremental encoder
Holding brake: With
Holding torque: 10 N.m
Mounting support: Asian standard flange
Motor flange size: 130 mm
Torque constant: 0.87 N.m/A
Back emf constant: 31.8 V/krpm at 20 °C
Rotor inertia: 15.88 kg.cm²
Stator resistance: 0.348 Ohm at 20 °C
Stator inductance: 5.52 mH at 20 °C
Stator electrical time constant: 15.86 ms at 20 °C
Maximum radial force Fr: 490 N
Maximum axial force Fa: 98 N
Brake pull-in power: 19 W
Type of cooling: Natural convection
Length: 216 mm
Number of motor stacks: 4
Centring collar diameter: 110 mm
Centring collar depth: 6 mm
Number of mounting holes: 4
Mounting holes diameter: 9 mm
Circle diameter of the mounting holes: 145 mm
Distance shaft shoulder-flange: 47 mm
Net weight: 9.2 kg
Environment
IP degree of protection: IP65
Ambient air temperature for operation: 0…40 °C

FAQ

Q1: What is the maximum mechanical speed of the motor?
A1: The maximum mechanical speed is 3000 rpm, which can meet the requirements of high-speed positioning and motion control.

Q2: What is the rated voltage and number of phases of the motor?
A2: The rated voltage is 220 V and a three-phase power supply network is used.

Q3: What are the continuous rated power and locked rotor current of the motor?
A3: The continuous power is 2 kW and the continuous locked rotor current is 11.01 A.

Q4: Does the motor come with a brake?
A4: Yes, with a holding brake, holding torque of 10 N.m, and brake engagement power of 19 W.
