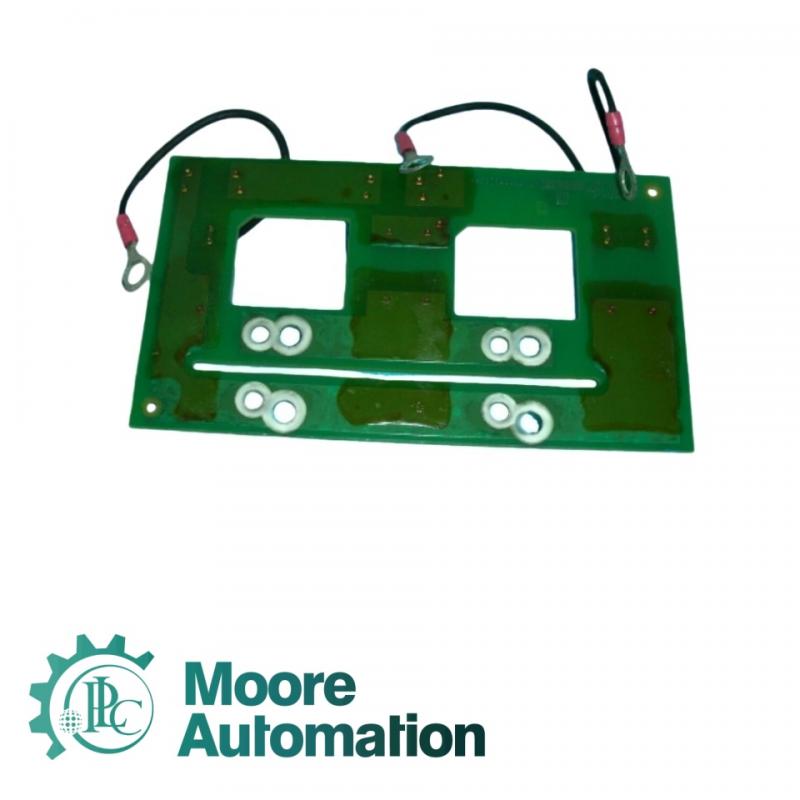

Schneider 14857801112A04 14857790112A04 Inverter Board

Product Specifications

Product Name:14857801112A04 14857790112A04

Brand Name:Schneider

Product Origin:France

Order(MOQ):1

Payment: T/T

Shipping Port: Xia men

Lead Time：in stock

Delivery time: 1-3 days

Contact John Yang: Sales Manager

Product Information

This series of boards is designed by Schneider Electric for internal key modules in its Altivar series frequency converters (e.g., ATV61/ATV71 models). Models 14857801112A04 and 14857790112A04 may correspond to the mainboard or filter board components, respectively. Taking model 14857801112A04 as an example, this board is encapsulated as an industrial-grade control circuit board, utilizing high-reliability printed circuit board (PCB) technology. It features thick copper layers, key power components, and thermal dissipation pathways, specifically designed for current/voltage filtering and control logic processing within frequency converters.

Parameter Information

Installation environment temperature: –25 °C ~ +70 °C (storage temperature reference)
Power supply voltage: Approximately 700 V DC (depends on three-phase input 380–500 V / 400 V system, after rectification)
Input AC voltage: Three-phase 380–500 V AC (depending on inverter model)
Rated output frequency: 0.1 Hz ~ 599 Hz (reference: ATV320 series drive data)
EMC/filter grade: Filter board (Filter Board) component – model 14857790112A04 marked as "Filter Board"
Electrostatic sensitivity / Storage temperature: Static-sensitive device; storage environment recommended –25 °C ~ +70 °C
Mounting torque / ESD protection: Use appropriate torque during installation; operators should wear an anti-static wrist strap
