PLC 5069-L380ERM Enet Motion Controller

For more information about 5069-L380ERM

Sale Manager

Email

Mobile(WhatsApp)

John Yang

sales3@askplc.com

86-18150117685

Full Details of 5069-L380ERM

Origin:USA

Delivery time: 1-3 days

Brand name:PLC

Payment method: T/T

Model: 5069-L380ERM

Quality: 100% original new

Warranty period: 1 year

Transportation period: DHL FEDEX EMS UPS TNT

Main Parametersof 5069-L380ERM

Weight: 2.27 kg
Communication: EtherNet/IP, USB
Depth: 136.81 mm, 5.39"
Height: 123 mm, 4.84"
Isolation: 300V (cont); No isolation between ENET ports
Number Of Channels: 0
Power Supply: MOD Power 18…32V DC SA Power 0…32V DC 0…240V AC, 47…63 Hz ATEX/IECEX, 125V AC max
Processor: Quad Core
Programming Languages: Sequential Function Chart, Function Block Diagram, Structured Text, and Ladder Diagram
Communication Ports: 1 Type B 2.0 Full-Speed USB and 2 Ethernet/IP Ports
Supported Ethernet/IP Network Topologies: Device Level Ring, Star, and Linear
Application Memory: 8 MB
Module Type: CompactLogix Controller
Non-volatile memory: 2 GB via 1784-SD2 (ships with the controller)
Local I/O modules: 31 I/O modules
Communication rate, Ethernet: 10 Mbps / 100 Mbps / 1 Gbps
No. of Ethernet nodes: 150
No. of supported sockets: 32
No. of motion axes: 256
No. of CIP drive: 28
Communication rate, USB: 12 Mbps
Ethernet/IP Nodes: 70 Ethernet/IP Nodes
I/O Expansion: 31 I/O
Motion Axes: 28 Motion Axes
Pulse Latching Supported: Yes
Pattern Matching Supported: Yes

Product Outlineof 5069-L380ERM

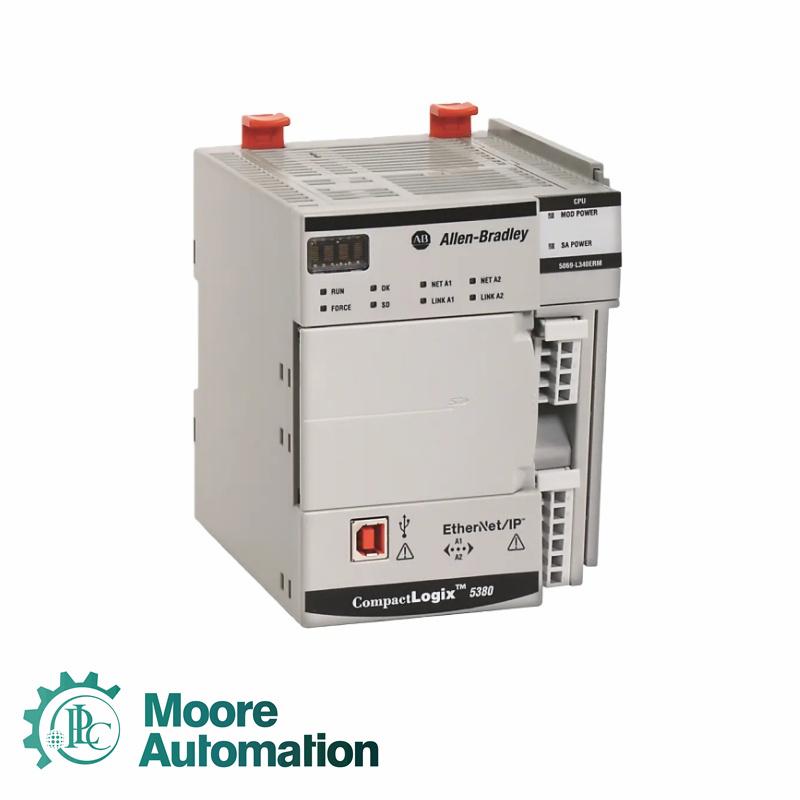

The Allen-Bradley 5069-L380ERM is a CompactLogix 5380 controller. This is a Programmable Automation Controller (PAC) that is used for general purpose and standard automation requirements. This controller also comes with embedded motion control capability as it can implement such control over Ethernet I/P. The 5069-L380ERM mainly features an 8 MB user memory coupled with a 2 GB non-volatile memory. This non-volatile may be expanded up to 32 GB or to other size as needed. Compatible Secure Digital (SD) cards for memory expansion are 1784-SD1 (1 GB), 1784-SDHC8 (8 GB),1784-SDHC32 (32 GB) and 9509-CMSDCD4 (4 GB) CodeMeter CmCard card. The 5069-L380ERM can be configured with up to 32 periodic, continuous and event task types. Each task can handle up to 1000 programs. For communication, this controller is provided with Two (2) Ethernet communication interfaces as primary communication ports and One (1) USB port for local communication and configuration purposes. Industrial communication is not supported by the USB port. The transmission rate of the Ethernet port can be configured for 10 / 100 Mbps and 1 Gbps while the USB port support 12 Mbps transmission speed. This controller supports configuration of up to 256 motion axes and 24 CIP drive axes. Motion axes may be composed of CIP Drive, Virtual, and consumed axes as well as Regenerative AC/DC Converter and Non-Regenerative AC/DC Converter axis types.

FAQ of 5069-L380ERM

Does the 5069-L380ERM come with a warranty?
Yes, the 5069-L380ERM includes a 1-year warranty.

How many CIP drive axes can I configure using this controller?
Up to 24 CIP drive axes is supported.

Does the 5069-L380ERM provided with a removable non-volatile storage?
Yes. It is equipped with 2GB 1784-SD2 memory card that ships with the controller.

Can I install this controller in harsh and corrosive environments?
No. A conformally coated hardware may be needed for this application areas.
