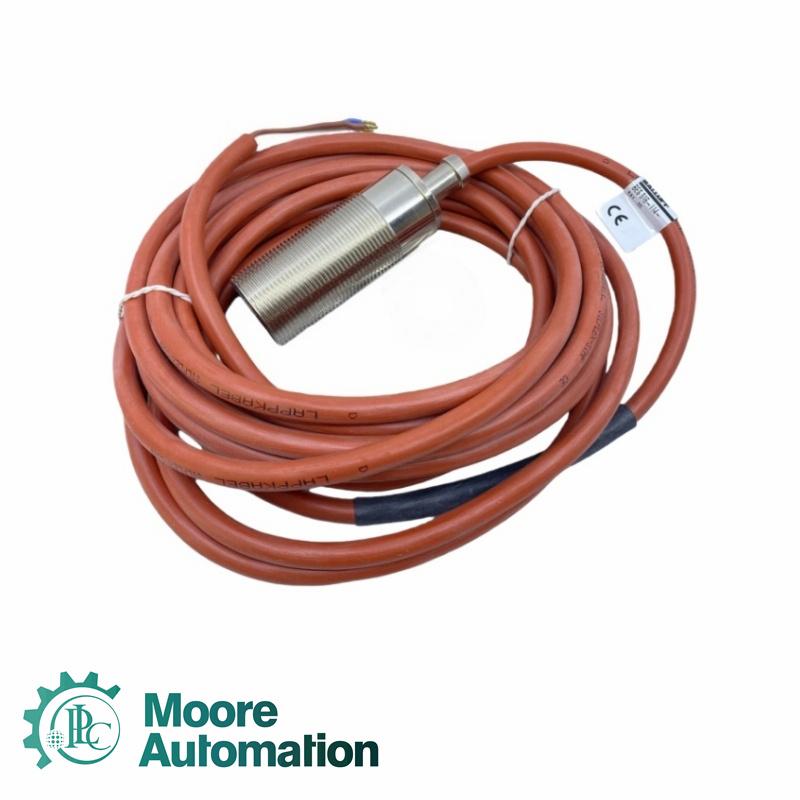

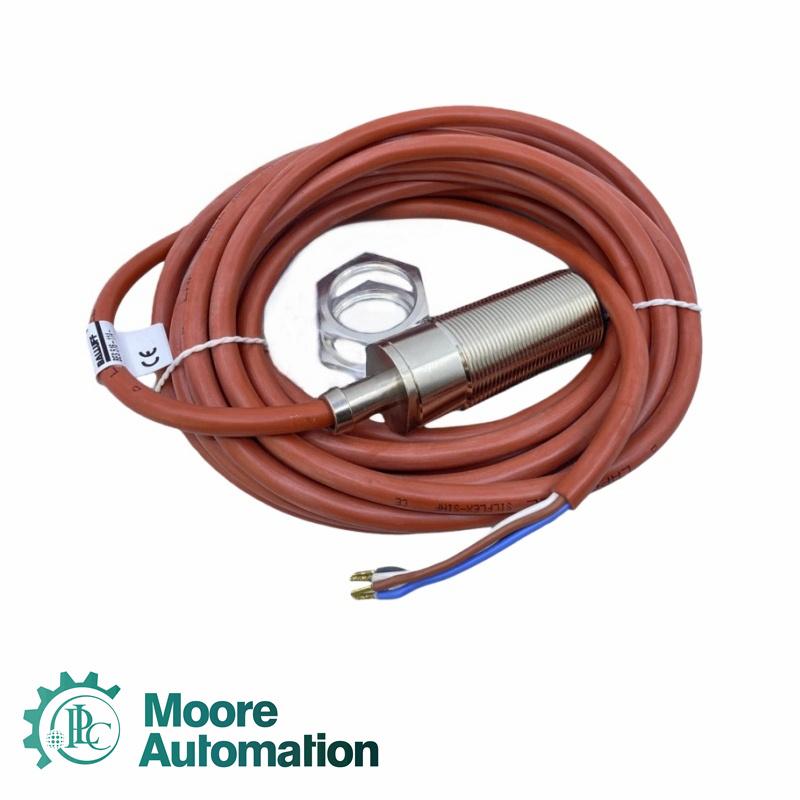

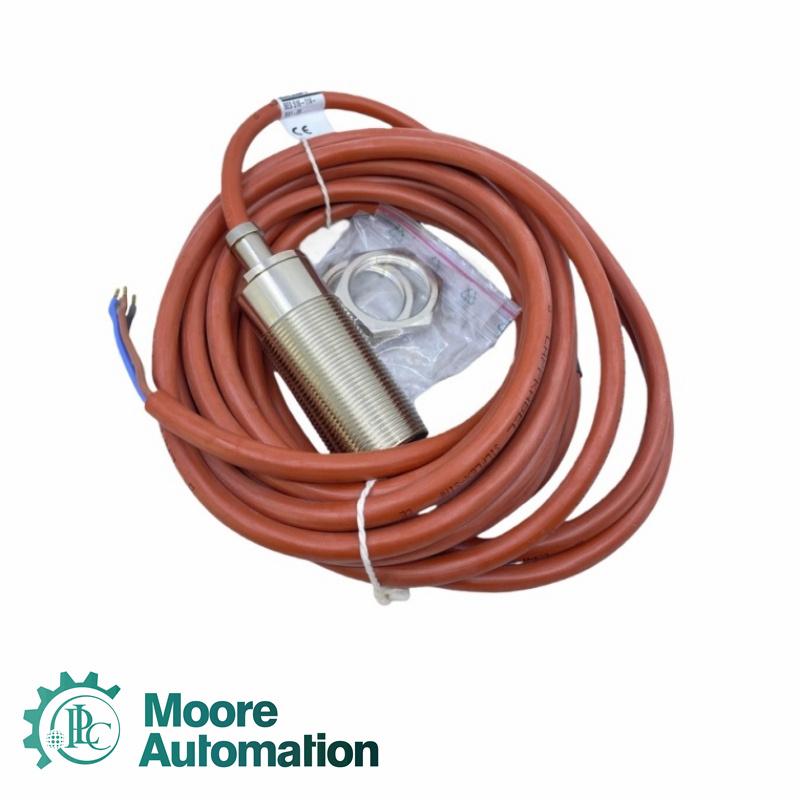

BALLUFF BES 516-114-SA1-05 High-Temperature Resistant Inductive Sensor

BALLUFF BES 516-114-SA1-05 High-Temperature Resistant Inductive Sensor

100% Full New
12 Months Warranty
Worldwide Shipping
Email: sales3@askplc.com

Brand:
Other
Order(MOQ):
1
Payment:
T/T
Product Origin:
Germany
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
in stock

Product Detail

Five-star sales

Sale Manager: John Yang

Email: sales3@askplc.com

Mobile(WhatsApp): 86-18150117685

BES 516-114-SA1-05------In stock & Full New

Overview of the Product

We provide first class service
We deliver diverse parts
We achieve faster speeds
Adhering to the corporate philosophy of excellence, we are committed to being better, whether it is parts, service or delivery efficiency.

BES 516-114-SA1-05------In stock & Full New

Operating Parameters

Cable diameter D: 8.00 mm
Cable length L: 5 m
Conductor cross-section: 0.75 mm²
Connection type: Cable, 5.00 m, Silicone
Number of conductors: 4
Polarity reversal protected: yes
Protection against device mix-ups: yes
Short-circuit protection: no
Load capacitance max. at Ue: 0.15 µF
Min. operating current Im: 0 mA
No-load current Io max., damped: 15 mA
No-load current Io max., undamped: 15 mA
Operating voltage Ub: 10...30 VDC
Output resistance Ra: 6.2 kOhm + D/10.0 kOhm + D
Rated insulation voltage Ui: 75 V DC
Rated operating current Ie: 400 mA
Rated operating voltage Ue DC: 24 V
Rated short circuit current: 100 A
Ready delay tv max.: 10 ms
Residual current Ir max.: 80 µA
Ripple max. (% of Ue): 15 %
Switching frequency: 300 Hz
Utilization category: DC -13
Voltage drop static max.: 1.5 V
Ambient temperature: -25...120 °C
Contamination scale: 3
EN 60068-2-27, Shock: Half-sinus, 30 g, 11 ms
EN 60068-2-6, Vibration: 55 Hz, amplitude 1 mm, 3x30 min
IP rating: IP67, IP60 at cable exit
Switching output: PNP normally open/normally closed (NO/NC)
Dimension: Ø 30 x 91.5 mm
Installation: flush mounting
Mounting length: 53.00 mm
Size: M30x1.5
Tightening torque: 70 Nm
Housing material: Brass, nickel-plated
Material jacket: Silicone
Material sensing surface: PBT

BES 516-114-SA1-05------In stock & Full New

FAQ

Q: Is your product new or refurbished?
A: All our products are original new with one year warranty.

Q: How many days the goods will arrive my hands if I place the order now?
A: As soon as we receive the payment, I will ship the products immediately.
It usually take 3-5 days from China to your hands.

Q:Can you ship the goods to my country?
A: Please don't worry ,We can ship the goods to worldwide.

BES 516-114-SA1-05------In stock & Full New
