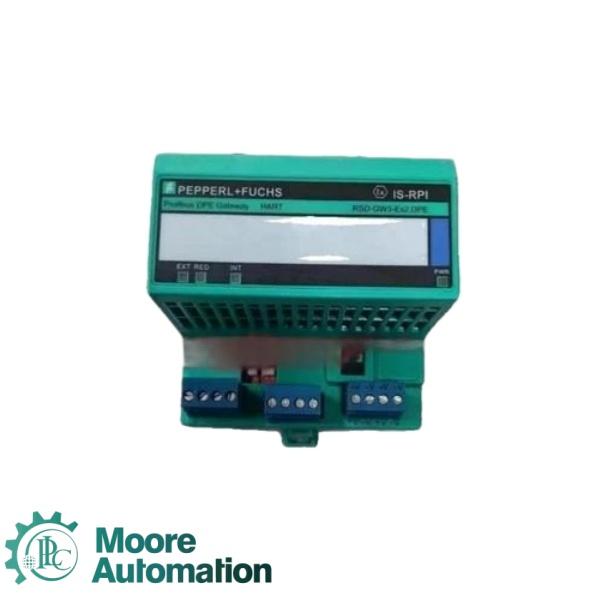

Pepperl+Fuchs RSD-GW3-Ex2.DPE Interface

Contact Yuki

Email: sales6@askplc.com

WhatsApp: +8617359287459

Product Details

The Pepperl+Fuchs RSD-GW3-Ex2.DPE is an intrinsically safe, distributed communication gateway module designed for explosion-proof automation topologies. It serves as a network interface, converting internal backplane bus protocols to external PROFIBUS DP-V1 fieldbus layers and vice versa. The module handles up to 8 backplane-mounted I/O modules, enables full transparent routing of HART diagnostic telegrams directly to field instruments, and supports hot-swapping under voltage in hazardous zones to ensure continuous plant runtime.

(1) Operating Voltage: Driven by an intrinsically safe power backplane line supplying 8.88V DC to 9.5V DC nominal logic power

(2) Power Consumption: Maximum internal power dissipation rating of 8.5W

(3) Operating Ambient Temperature: Operational profile spans from -20℃ to +60℃

(4) Network Capacity: Manages up to 8 I/O modules locally via address/data lines, with support for up to 10 gateways

Application

❖ Hazardous Area Remote I/O Routing: Installed within Zone 1, Zone 2, or Zone 22 explosive gas and dust atmospheres to securely bridge intrinsically safe field instrumentation loops with a safe-area DCS.

❖ HART Asset Management Networks: Used in chemical and pharmaceutical facilities to forward real-time HART telemetry data from analog field devices back to PACTware config software.

❖ Media-Redundant Bus Architecture: Deployed in continuous process plants, such as oil and gas refineries, where the module utilizes media-redundant PROFIBUS lines to ensure connection runtime during single cable breaks.

Faq

Q1: How does Pepperl+Fuchs support the transition to Industry 4.0 and IIoT?

A1: Pepperl+Fuchs bridges the gap between field-level sensors and cloud-based systems through IO-Link technology and advanced Ethernet gateways. Their smart sensors collect real-time diagnostic data, allowing factory floors to implement predictive maintenance, optimize machine efficiency, and achieve transparent data flow from the sensor directly to the ERP/Cloud.

Q2: What types of sensor technologies do they provide for logistics and material handling?

A2: For automated warehouses and AGVs (Automated Guided Vehicles), Pepperl+Fuchs delivers highly specific optical and positioning technologies. This includes LiDAR sensors for collision avoidance, Pulse Ranging Technology (PRT) for precise distance measuring, and vision-based code readers for rapid parcel tracking on high-speed conveyor belts.

Q3: Can Pepperl+Fuchs components be integrated into third-party control systems?

A3: Yes, interoperability is a core feature of their design philosophy. Their fieldbus modules, remote I/O gateways, and sensor interfaces natively support open, universal industrial protocols such as PROFIBUS, PROFINET, EtherNet/IP, Modbus TCP, and HART, allowing seamless integration into major Distributed Control Systems (DCS) and PLCs (e.g., Siemens, Rockwell, ABB, Emerson).
